Type 05C02 - Check Valve

Datasheet ID: CR_05C02_1

Field of application

chevron-down

Application:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -269°C / -452°F (4K) up to +80°C / +176°F (353K)

Description

chevron-down

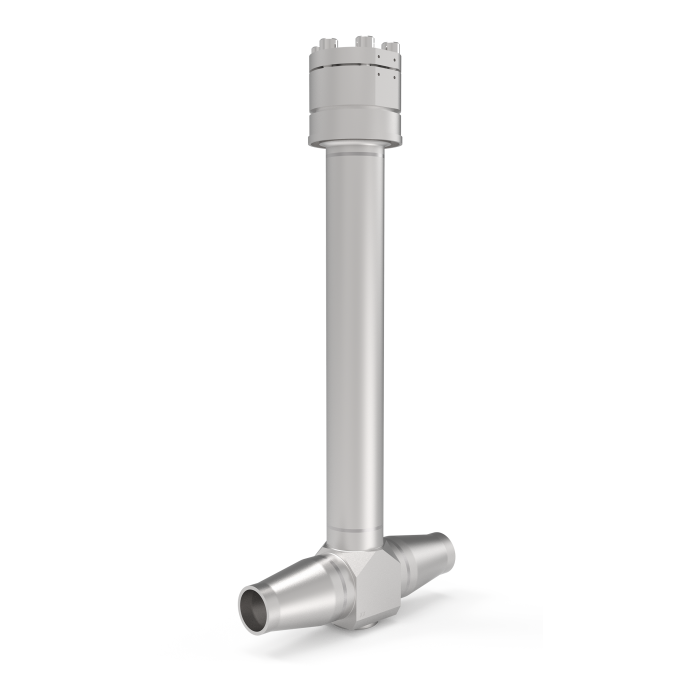

Top-Entry Cryogenic-Check-Valves, forget steel body, up to PN63

A005 series

Stainless steel body and topwork,

"¦with spring, opening pressure ca. 0.1 bar¦"

"¦cleaned and degreased for oxygen service¦"

Part-No. 05C02.A005.X

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options:

· Purge port

- on request only:

· Further connection types

Certificates

chevron-down
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_05C02_1_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_05C02_1-1
More Information
Type (Series) 05C02
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Refueling, Processes
SKU CR_05C02_1
Materials

Materials

DIN EN

ASTM

1

Body

1.4571

A 313 Grade 316TI

2

Valve Seal

PTFE

PTFE

3

Disc

1.4571

A 313 Grade 316TI

4

Spring

1.4571

A 313 Grade 316TI

5

Tube

1.4571

A 313 Grade 316TI

6

Pipe

1.4571

A 313 Grade 316TI

7

Flange

1.4404

A 276 Grade 316L

8

Gasket

PTFE

PTFE

9

Cap

1.4404

A 276 Grade 316L

10

Bolt

A4-80

A 194 B8M

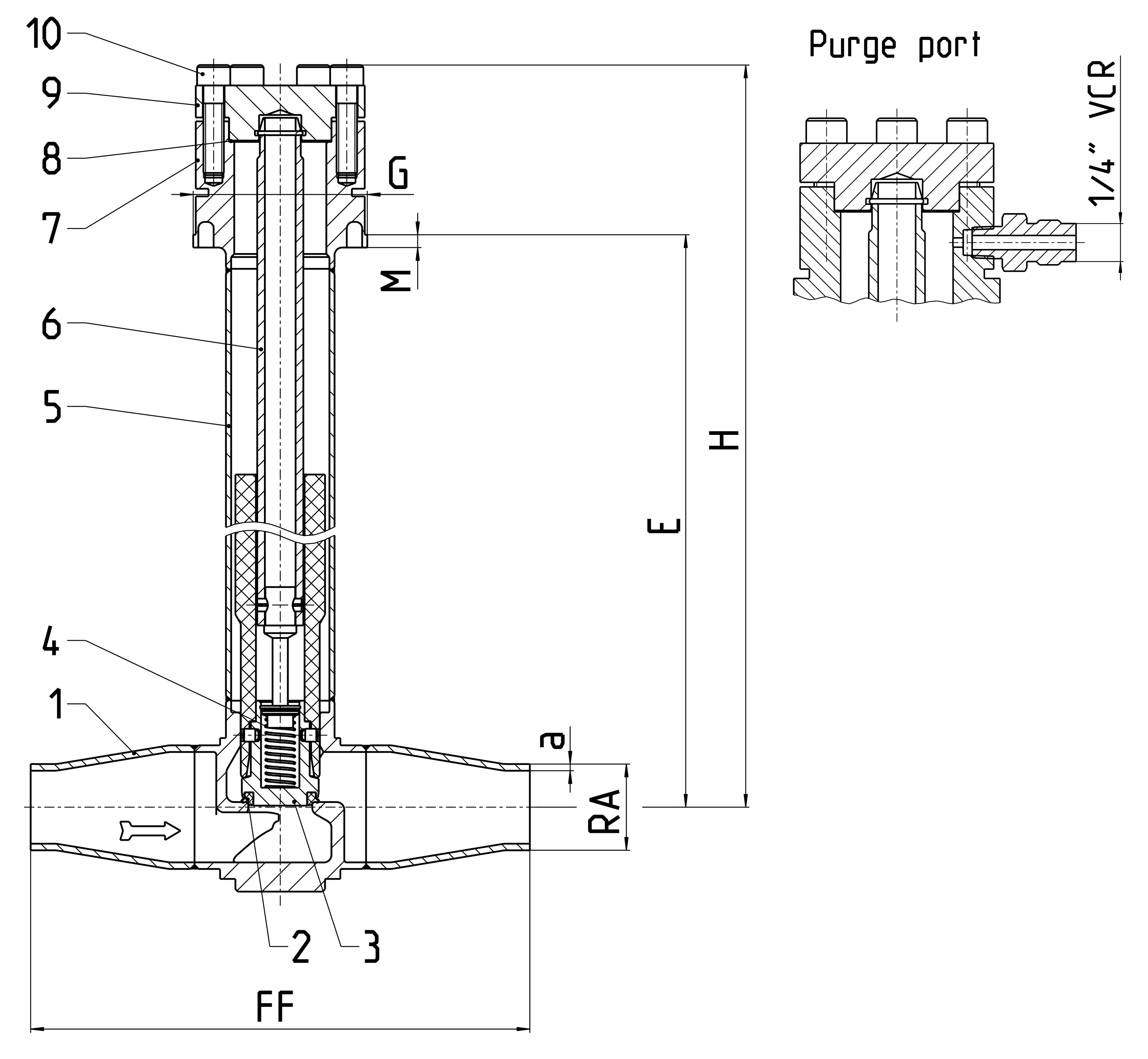

Versions

Type 05C02

Technical data

Nominal size

DN

25

25

Dimension code

.X.

000001

000004

Face-to-face dimension

FF

150

150

Height

H

392

392

Collar-Ø

G

68

68

Length

M

5

5

Length

E

325

325

Outside pipe-Ø ISO

Ra

33.7

33.7

Wall thickness pipe ISO

a

2,6

2,6

Pipe-Ø ASTM A312

1'' S10

1'' S10

KVS-Value

m³/h

10.4

10.4

CV-Value

gal/min

12.0

12.0

Weight

3.6 kg

3.6 kg

Purge port

without

1/4'' VCR
?
