Type 06012, Type 06016

Datasheet ID: CR_06012_06016

Field of application

chevron-down

Applications:

Provided as safety device for protection against thermal expansion in pipeworks and parts of facilities.

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +150°C / +302°F (423K), suitable for horizontal installation

Description

chevron-down

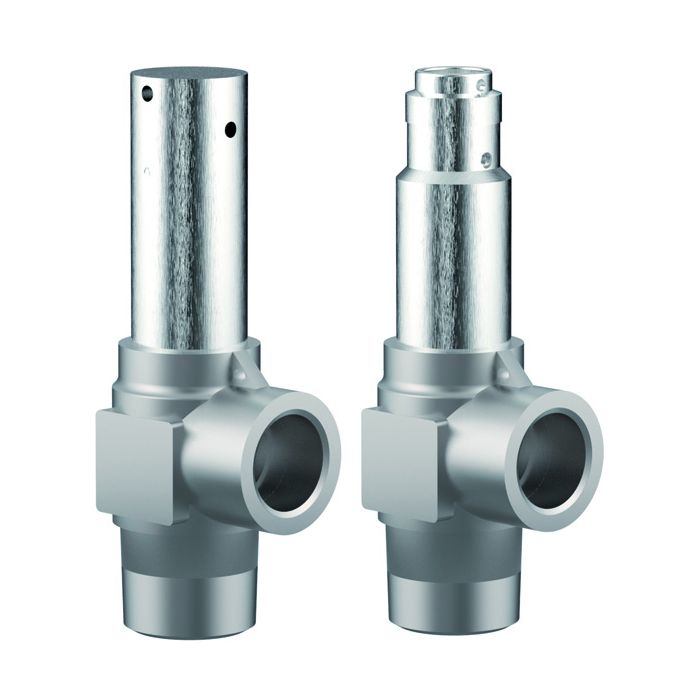

Cryogenic Safety Valves, angle type, stainless steel, PN63, type tested TÜV-SV.1048. S/G

Standard safety valve, with carbon filled PTFE valve seal, open bonnet

Outlet: female thread Rc 3/8 acc. to ISO 7/1, "¦cleaned and degreased for oxygen service¦"

Type 06012: drainage hole in the locking screw

Type 06016: drainage hole in the bonnet

Part No. 06012.X.0000:

Part No. 06016.X.0000 (with lifting device)

Inlet: male thread type R (BSPT) acc. to ISO 7/1

Part No. 06012.X.2000

Part No. 06016.X.2000 (with lifting device)

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06012.X.5000

Part No. 06016.X.5000 (with lifting device)

Inlet: male thread NPT acc. to ANSI B 1.20.1

Available options - on request only:

· with installed elbow at the outlet

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0045/201/1321/Z/00065/18/oD/002(02)
0045/201/1321/Z/00065/18/oD/002(02)
ASME Code (ASME Code Section VIII) chevron-down
NB_EN_91213
31820
NBBI 78711 278163
NB_EN_91213
31820
NBBI 78711 278163
Canadian Registration Number (CRN) chevron-down
0G20613.5 - Ontario
0G20613.5N - Nunavut
0G20613.5T - Northwest Territories
0G20613.5Y - Yukon
0G20613.50 - Newfoundland and Labrador
0G20613.52 - Alberta
0G20613.57 - New Brunswick
0G20613.58 - Nova Scotia
0G20613.59 - Prince Edward Island
CSA-0G20613.56 - Quebec and Saskatchewan
0G20613.5 - Ontario
0G20613.5N - Nunavut
0G20613.5T - Northwest Territories
0G20613.5Y - Yukon
0G20613.50 - Newfoundland and Labrador
0G20613.52 - Alberta
0G20613.57 - New Brunswick
0G20613.58 - Nova Scotia
0G20613.59 - Prince Edward Island
CSA-0G20613.56 - Quebec and Saskatchewan
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00617/20/D/001(01)
0045/202/1201/Z/00617/20/D/001(01)
ClassNK (Class Rules) chevron-down
TA22180M
TA22180M
BV (Class Rules) chevron-down
33356/C0 BV
SMS.W.I./11744/C.0
33356/C0 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
MAC322723XG
TÜV Verband (Approval mark number) chevron-down
24-1048
24-1048
24-1048
24-1048
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ1110512846/4
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/MUM/PRJ1110512846/4
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
TSF700D36-2029
Lloyd's Register (Class Rules) chevron-down
LR25294473TA
LR2695076QAES
LR25294473TA
LR2695076QAES
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26
DNV (Class Rules) chevron-down
TAP0000355
TAP0000355

Data sheets

chevron-down
CR_06012_06016_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_06012_06016-1

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTSV (DE, EN, CN)
TTSV (DE, EN, CN)
TTSV (DE, EN, CZ)
TTSV (DE, EN, CZ)
TTSV (DE, EN, ES)
TTSV (DE, EN, ES)
TTSV (DE, EN, FR)
TTSV (DE, EN, FR)
TTSV (DE, EN, IT)
TTSV (DE, EN, IT)
TTSV (DE, EN, NL)
TTSV (DE, EN, NL)
TTSV (DE, EN, PL)
TTSV (DE, EN, PL)
TTSV (DE, EN, RU)
TTSV (DE, EN, RU)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTSV (DE, EN)
TTSV (DE, EN)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
001SV (DE, EN, RU)
More Information
Type (Series) 06012,06016
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06012_06016

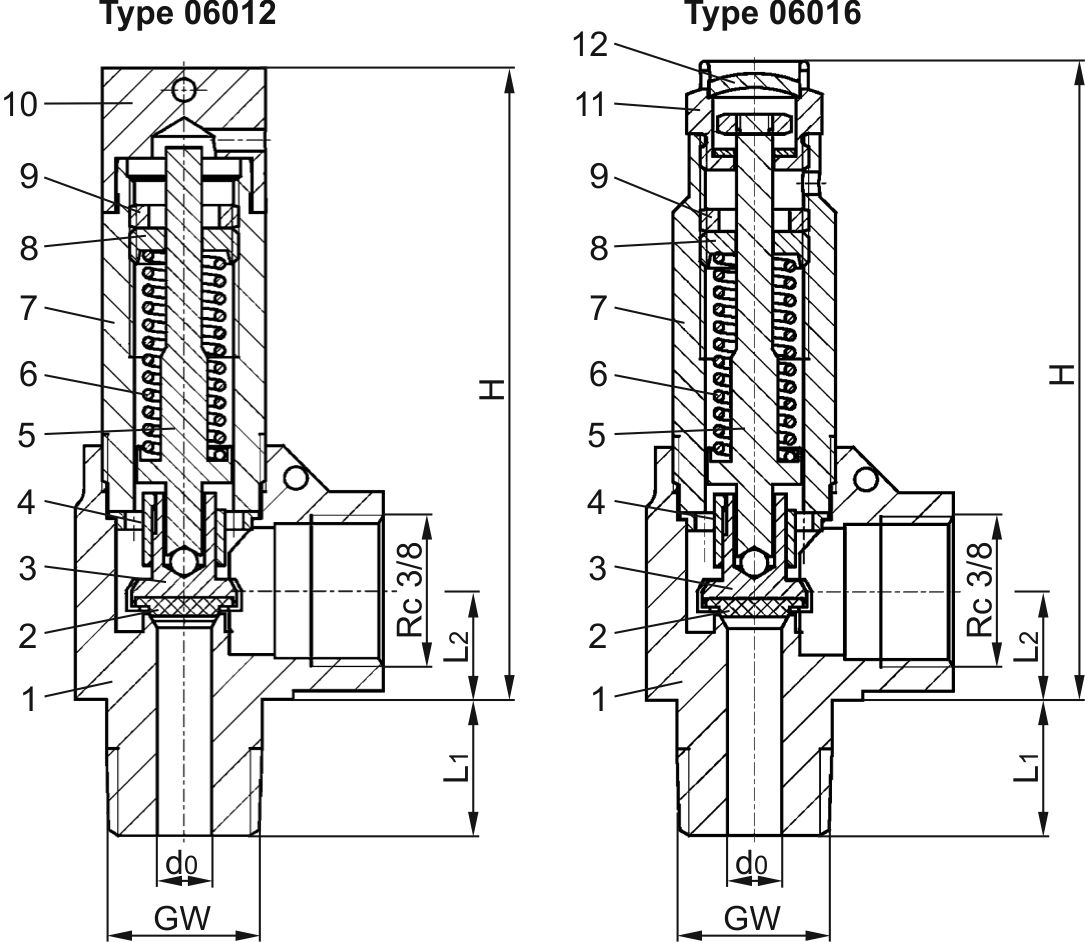

Materials

Materials

DIN EN

ASME/ASTM

1

Body

1.4408

SA 351 CF8M

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

1.4301

SA 479 Grade 304

4

Guide plate

1.4301

SA 479 Grade 304

5

Stem

1.4301

SA 479 Grade 304

6

Spring

1.4571

SA 313 Grade 316Ti

7

Bonnet

1.4301

SA 479 Grade 304

8

Spring clamp

1.4305

SA 314 Grade 303

9

Thread ring

1.4305

SA 314 Grade 303

10

Cap

1.4301

SA 479 Grade 304

11

Lifting device

1.4305

SA 479 Grade 303

12

Closing cap

1.4305

SA 479 Grade 303
Versions

Technical data

Type 06012

Type 06016

Nominal size

GW

1/4

3/8

1/2

1/4

3/8

1/2

Orifice

d0

6.0

6.0

6.0

6.0

6.0

6.0

Dimension code

.X.

0200

0300

0400

0200

0300

0400

Set pressure range

bar

1.0-55.0

1.0-55.0

1.0-55.0

1.0-55.0

1.0-55.0

1.0-55.0

Height

H

70

70

70

72

72

72

Length

L1

13

15

17

13

15

17

Length

L2

13

13

13

13

13

13

Weight

ca. kg

0.185

0.20

0.22

0.18

0.195

0.21

Coeff. of discharge from 3.0 bar

αw

0.42

0.42

0.42

0.42

0.42

0.42
