Type 06381

Datasheet ID: CR_06381_2

Field of application

chevron-down

Applications:

Provided as overflow valve for protection against excessive pressure in pipe systems and pressure

vessels, which are not subject to approval.

Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K)

Description

chevron-down

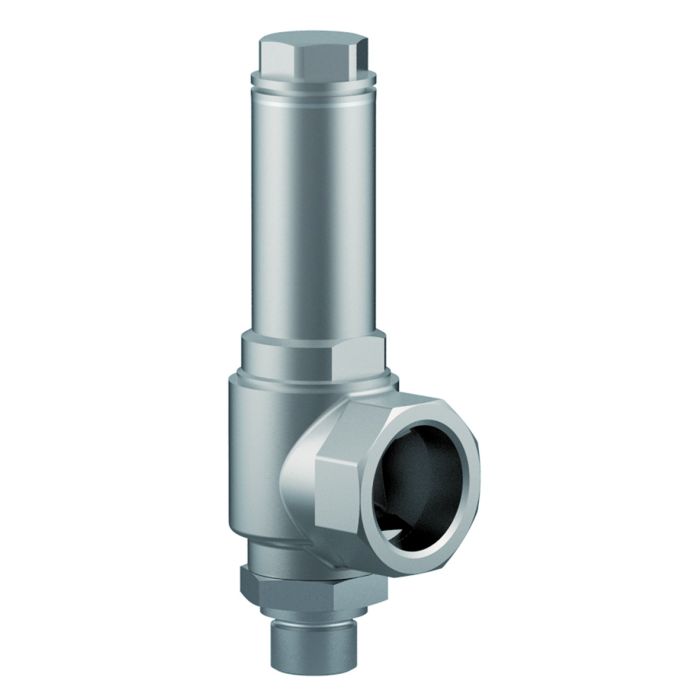

Cryogenic Safety Valves, angle type, stainless steel, PN40, not type tested

metal to metal seated, closed bonnet,

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Outlet: female thread type G (BSPP) acc. to ISO 228/1

"¦cleaned and degreased for oxygen service¦"

Part No. 06381.X.9005 (0.5 up to 1.5 bar)

Part No. 06381.X.9003 (1.0 up to 4.0 bar)

Part No. 06381.X.9001 (3.0 up to 8.0 bar)

Part No. 06381.X.9002 (7.0 up to 17.0 bar)

Part No. 06381.X.9004 (16.0 up to 21.0 bar)

Part No. 06381.X.9007 (21.0 up to 28.0 bar)

Part No. 06381.X.9006 (28.0 up to 36.0 bar)

Available options - on request only:

· other spring ranges acc. to customer specification

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
07/201/1321/Z/0066/18/oD/001(01)
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00232/20/D/001(02)
ASME Code (ASME Code Section VIII) chevron-down
NB_EN_91224
31820
NBBI 78711 278163
Canadian Registration Number (CRN) chevron-down
0G20613.5 - Ontario
0G20613.5N - Nunavut
0G20613.5T - Northwest Territories
0G20613.5Y - Yukon
0G20613.50 - Newfoundland and Labrador
0G20613.52 - Alberta
0G20613.57 - New Brunswick
0G20613.58 - Nova Scotia
0G20613.59 - Prince Edward Island
CSA-0G20613.56 - Quebec and Saskatchewan
TÜV Verband (Approval mark number) chevron-down
22-780
22-780
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/MUM/PRJ11100512846/2
Lloyd's Register (Class Rules) chevron-down
LR25294473TA
LR2695076QAES
Ukraine (Ukraine) chevron-down
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26

Data sheets

chevron-down
CR_06381_2_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_06381_2-1

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTSV (DE, EN, CN)
TTSV (DE, EN, CZ)
TTSV (DE, EN, ES)
TTSV (DE, EN, FR)
TTSV (DE, EN, IT)
TTSV (DE, EN, NL)
TTSV (DE, EN, PL)
TTSV (DE, EN, RU)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTSV (DE, EN)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
More Information
Type (Series) 06381
Solution LNG
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06381_2

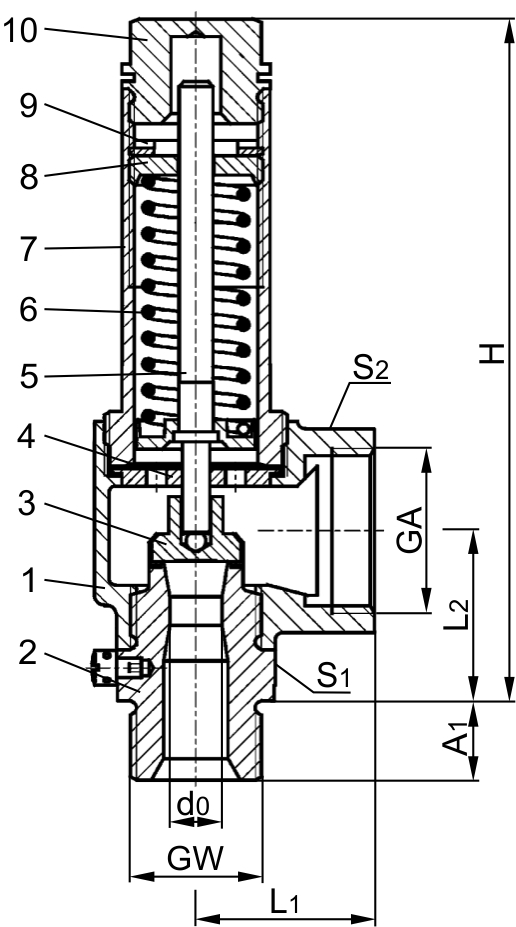

Materials

Materials

DIN EN

ASTM

1

Outlet body

1.4308

A 351 CF8

2

Inlet body

1.4301

A 276 Grade 304

3

Disc

1.4541

A 276 Grade 321

4

Guide plate

1.4301

A 276 Grade 304

5

Stem

1.4571

A 276 Grade 316Ti

6

Spring

1.4571

A 313 Grade 316Ti

7

Bonnet

1.4308

A 351 CF 8

8

Spring Clamp

1.4301

A 276 Grade 304

9

Adjusting screw

1.4571

A 276 Grade 316Ti

10

Cap

1.4301

A 276 Grade 304
Versions

Type 06381

Technical data

Nominal size

GW

1/2

3/4

Orifice

d0

10.5

10.5

Dimension code

.X.

1004

1006

Outlet

GA

1

1

Height

H

139

139

Length

L1

36

36

Length

L2

34

34

Length

A1

14

16

Wrench size across flats

S1

30

32

Wrench size across flats

S2

41

41

Weight

ca. kg

0.77

0.79
