HEROSE Type 06381

The product shown in the picture may differ from the product sold.

Type 06381

Datasheet ID: CR_06381

Field of application

Applications:

Provided as safety device for protection against excessive pressure in stationary and moveable gas

cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K)

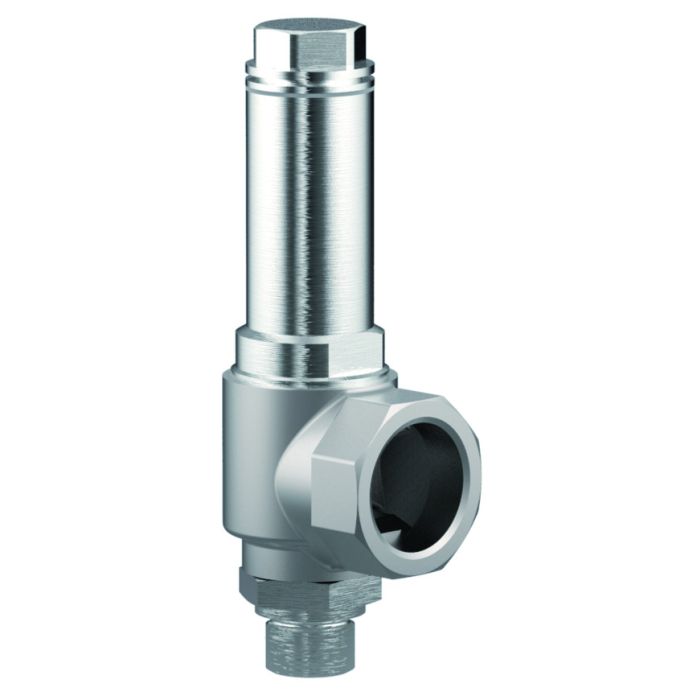

Description

Cryogenic Safety Valves, angle type, stainless steel, PN40, type tested TÜV-SV.780. S/G

Standard safety valve

Metal to metal seated, closed bonnet

"cleaned and degreased for oxygen service"

Part No. 06381.X.0000

Inlet: male thread type G (BSPP) acc. to ISO 228/1, Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06381.X.2000

Inlet: male thread type R (BSPT) acc. to ISO 7/1, Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06381.X.5000

Inlet: male thread NPT acc. to ANSI B 1.20.1, Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06381.X.6000

Inlet: male thread NPT acc. to ANSI B 1.20.1, Outlet: female thread NPT acc. to ANSI B 1.20.1

Certificates

Transportable Pressure Equipment Directive (2010/35/EU)

07/201/1321/Z/0066/18/oD/001(01)

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00232/20/D/001(02)

ASME Code (ASME Code Section VIII)

NB_EN_91224

31820

NBBI 78711 278163

Canadian Registration Number (CRN)

0G20613.5 - Ontario

0G20613.5N - Nunavut

0G20613.5T - Northwest Territories

0G20613.5Y - Yukon

0G20613.50 - Newfoundland and Labrador

0G20613.52 - Alberta

0G20613.57 - New Brunswick

0G20613.58 - Nova Scotia

0G20613.59 - Prince Edward Island

CSA-0G20613.56 - Quebec and Saskatchewan

TÜV Verband (Approval mark number)

22-780

Transportable Pressure Equipment Regulation 2009 (TPER 2009)

0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04

0038/UK/TPER/MUM/PRJ11100512846/2

Lloyd's Register (Class Rules)

LR25294473TA

LR2695076QAES

Ukraine (Ukraine)

UA.TR.107.135.03-26

UA.TR.107.127.07-26

UA.D.135.01-26

Data sheets

CR_06381_2_en.pdf

CR_06381_en.pdf

Operating Instructions

HEROSE-Manual-CR_06381-1

Declarations of Conformity

Transportable Pressure Equipment Directive (2010/35/EU)

TTSV (DE, EN, CN)

TTSV (DE, EN, CZ)

TTSV (DE, EN, ES)

TTSV (DE, EN, FR)

TTSV (DE, EN, IT)

TTSV (DE, EN, NL)

TTSV (DE, EN, PL)

TTSV (DE, EN, RU)

Transportable Pressure Equipment Regulation 2009 (TPER 2009)

TTSV (DE, EN)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

001 SV (EN)

Pressure Equipment Directive (2014/68/EU)

001SV (DE, EN, CN)

001SV (DE, EN, CZ)

001SV (DE, EN, ES)

001SV (DE, EN, FR)

001SV (DE, EN, IT)

001SV (DE, EN, NL)

001SV (DE, EN, PL)

001SV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	06381
Solution	LNG
Solution Area	Transport, Storage, Refueling, Processes
SKU	CR_06381

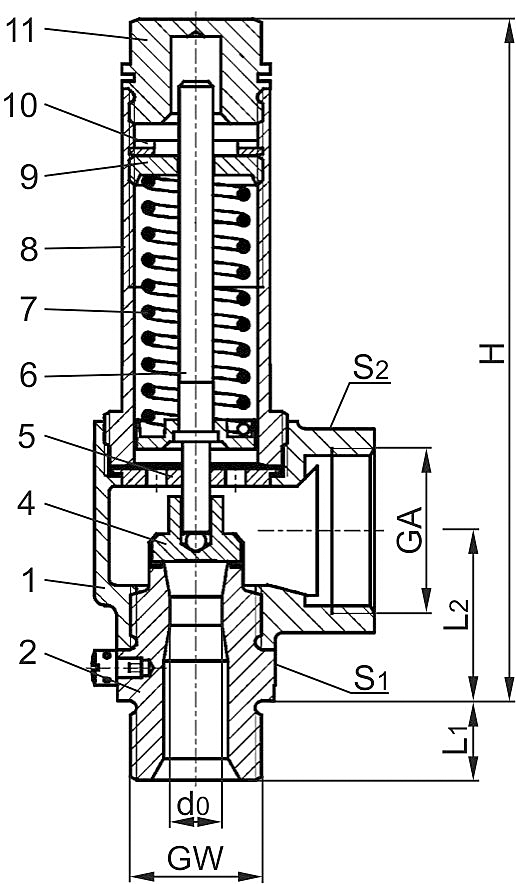

Materials

Materials		DIN EN	ASME/ASTM
1	Outlet body	1.4308	A 351 CF8
2	Inlet body	1.4301	A 276 Grade 304
4	Disc	1.4541	A 276 Grade 321
5	Guide plate	1.4301	A 276 Grade 304
6	Stem	1.4301	A 276 Grade 304
7	Spring	1.4571	A 313 Grade 316Ti
8	Bonnet	1.4308	A 351 CF8
9	Spring clamp	1.4301	A 276 Grade 304
10	Thread ring	1.4301	A 276 Grade 304
11	Cap	1.4301	A 276 Grade 304

Versions

Type 06381	Technical data
Nominal size	GW	1/2	3/4
Orifice	d₀	10.5	10.5
Dimension code	.X.	1004	1006
Set pressure range	bar	0.2-25.0	0.2-25.0
Outlet	GA	1	1
Height	H	140	140
Length	L₁	14	16
Length	L₂	36	36
Wrench size across flats	S₁	30	30
Wrench size across flats	S₂	41	41
Weight	ca. kg	0.75	0.78
Coeff. of discharge from 3.0 bar	α_w	0.67	0.67

Product Variants

Filter our product by specific attributes

Connection inlet

Connection outlet

Connection dimension inlet

Connection dimension outlet

Products per Page:

Name	Connection inlet	Connection outlet	Connection dimension inlet	Connection dimension outlet	Link to product
