HEROSE Type 06386

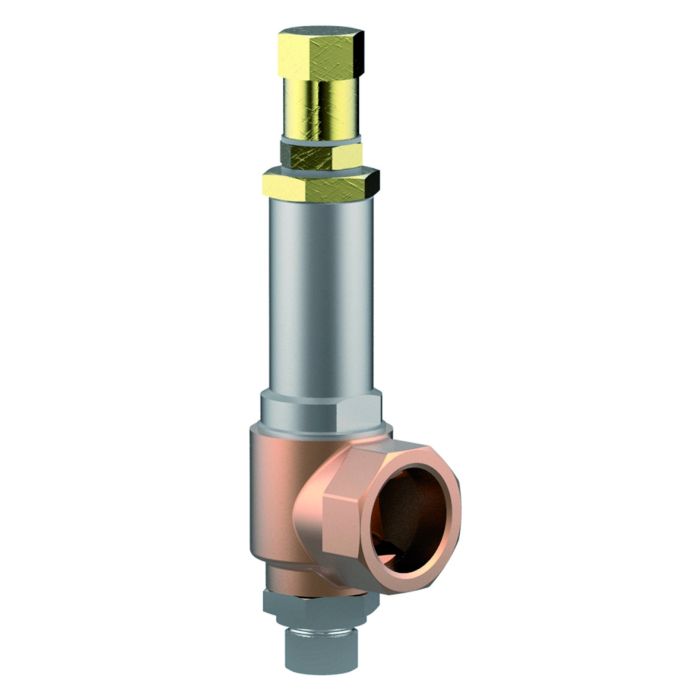

The product shown in the picture may differ from the product sold.

Type 06386

Datasheet ID: CR_06386_2

Field of application

Applications:

Provided as overflow valve for protection against excessive pressure in pipe systems and pressure

vessels, which are not subject to approval.

Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K)

Description

Cryogenic Overflow Valves, angle type, bronze, PN40, not type tested

with adjusting device, metal to metal seated, closed bonnet

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Outlet: female thread type G (BSPP) acc. to ISO 228/1

"cleaned and degreased for oxygen service"

Part No. 06386.X.9005 (0.5 up to 1.5 bar)

Part No. 06386.X.9003 (1.0 up to 4.0 bar)

Part No. 06386.X.9001 (3.0 up to 8.0 bar)

Part No. 06386.X.9002 (7.0 up to 17.0 bar)

Part No. 06386.X.9004 (16.0 up to 20.0 bar)

Part No. 06386.X.9007 (21.0 up to 28.0 bar)

Part No. 06386.X.9006 (28.0 up to 36.0 bar)

Available options - on request only:

· other spring ranges acc. to customer specification

Certificates

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00232/20/D/001(02)

Transportable Pressure Equipment Directive (2010/35/EU)

07/201/1321/Z/0066/18/oD/001(01)

ASME Code (ASME Code Section VIII)

NB_EN_91224

31820

NBBI 78711 278163

Canadian Registration Number (CRN)

0G20613.5 - Ontario

0G20613.5N - Nunavut

0G20613.5T - Northwest Territories

0G20613.5Y - Yukon

0G20613.50 - Newfoundland and Labrador

0G20613.52 - Alberta

0G20613.57 - New Brunswick

0G20613.58 - Nova Scotia

0G20613.59 - Prince Edward Island

CSA-0G20613.56 - Quebec and Saskatchewan

ClassNK (Class Rules)

TA22180M

TÜV Verband (Approval mark number)

22-780

BV (Class Rules)

33356/C0 BV

SMS.W.I./11744/C.0

Transportable Pressure Equipment Regulation 2009 (TPER 2009)

0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04

0038/UK/TPER/MUM/PRJ11100512846/2

License of Special Equipment (China) (TS)

TSF700D36-2029

ABS (Class Rules)

25-0381115-PDA

092776-7471959-006

Ukraine (Ukraine)

UA.TR.107.135.03-26

UA.TR.107.127.07-26

UA.D.135.01-26

Data sheets

CR_06386_2_en.pdf

Operating Instructions

HEROSE-Manual-CR_06386_2-1

Declarations of Conformity

Transportable Pressure Equipment Directive (2010/35/EU)

TTSV (DE, EN, CN)

TTSV (DE, EN, CZ)

TTSV (DE, EN, ES)

TTSV (DE, EN, FR)

TTSV (DE, EN, IT)

TTSV (DE, EN, NL)

TTSV (DE, EN, PL)

TTSV (DE, EN, RU)

Transportable Pressure Equipment Regulation 2009 (TPER 2009)

TTSV (DE, EN)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

001 SV (EN)

Pressure Equipment Directive (2014/68/EU)

001SV (DE, EN, CN)

001SV (DE, EN, CZ)

001SV (DE, EN, ES)

001SV (DE, EN, FR)

001SV (DE, EN, IT)

001SV (DE, EN, NL)

001SV (DE, EN, PL)

001SV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	06386
Solution	H2, LNG
Solution Area	Manufacturing, Transport, Storage, Application, Refueling, Processes
SKU	CR_06386_2

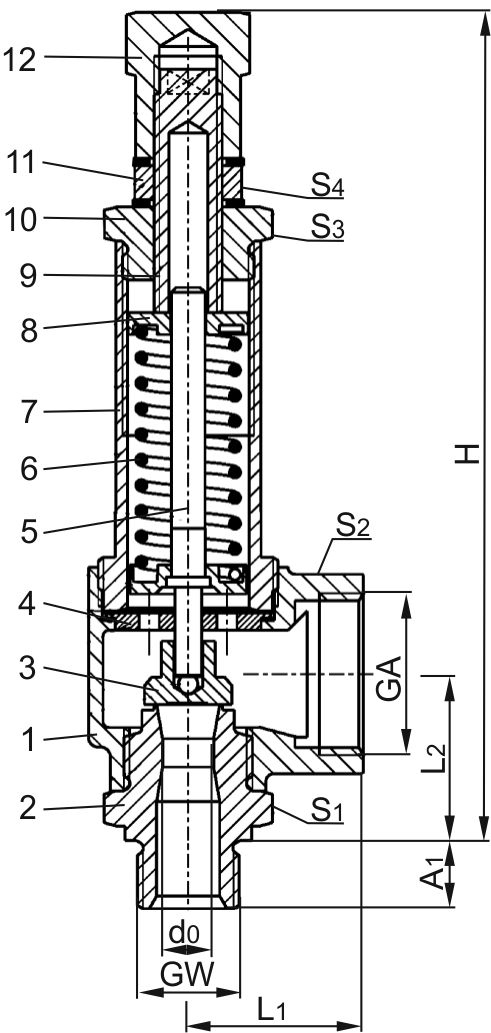

Materials

Materials		DIN EN	ASTM
1	Outlet body	CC491K	B 62 UNS C83600
2	Inlet body	1.4301	A 276 Grade 304
3	Disc	1.4541	A 276 Grade 321
4	Guide plate	CW453K	B 103 UNS C52100
5	Stem	CW453K	B 103 UNS C52100
6	Spring	1.4571	A 313 Grade 316Ti
7	Bonnet	1.4305	A 314 Grade 303
8	Spring clamp	CW614N	B 283 UNS C38500
9	Adjusting screw	CW614N	B 283 UNS C38500
10	Plug	CW614N	B 283 UNS C38500
11	Nut	CW614N	B 283 UNS C38500
12	Closing cap	CW614N	B 283 UNS C38500

Versions

Type 06386	Technical data
Nominal size	GW	1/2	3/4
Orifice	d₀	10.5	10.5
Dimension code	.X.	1004	1006
Outlet	GA	1	1
Height	H	171	171
Length	L₁	36	36
Length	L₂	34	34
Length	A₁	14	16
Wrench size across flats	S₁	30	32
Wrench size across flats	S₂	41	41
Wrench size across flats	S₃	30	30
Wrench size across flats	S₄	22	22
Weight	ca. kg	0.78	0.81
