Type 06810, Type 06815

Datasheet ID: CR_06810_06815_1

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure in gas cylinders and pressure vessels.

Approved for gases, vapours and liquids. Working temperature: -270°C / -454°F (3K) up to +400°C / +752°F (673K)

Pressure-temperature must be observed, suitable for horizontal installation from 20 bar up to 300 bar

Description

chevron-down

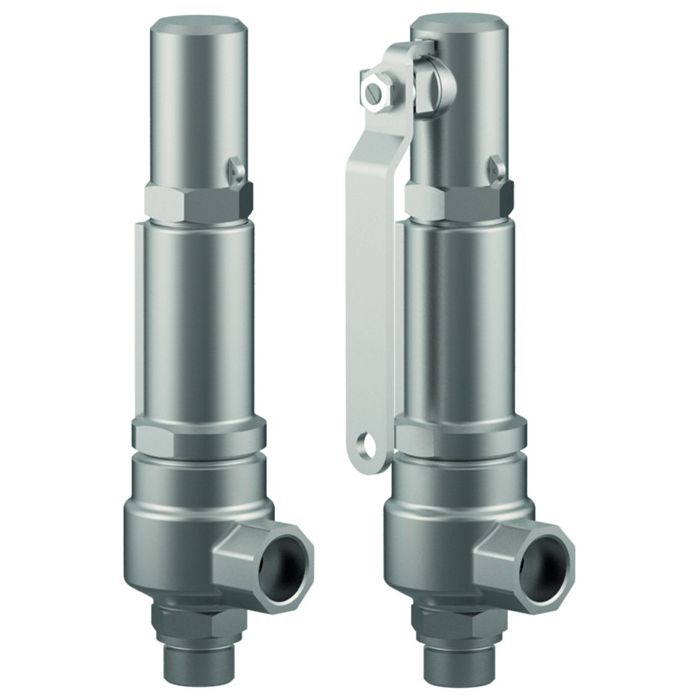

Safety Valves, angle type, stainless steel, type tested, TÜV-SV.1130. S/G/L

Standard safety valve

metal to metal seated, "cleaned and degreased for oxygen service"

closed bonnet, gastight cap or lifting device

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06810.X.000000M (Pmax 550.0 bar)

Part No. 06810.X.000000H (Pmax 550.0 bar) stellited version

with gastight cap

Part No. 06815.X.000000M (Pmax 400.0 bar)

Part No. 06815.X.000000H (Pmax 400.0 bar) stellited version

with lifting device

Available options - on request only:

· Flange-, NPT- or Tri-Clamp connection for in- and outlet

· Inlet: Cone & thread connection for d0 6mm - 9M 13/16''-16 UN or 12M 3/4'' - 14NPS

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
07-202-1201-Z-0121-18-D-0089
0045/202/1201/Z/00281/22/D/001(03)
07-202-1201-Z-0121-18-D-0089
0045/202/1201/Z/00281/22/D/001(03)
TÜV Verband (Approval mark number) chevron-down
Cert 23-1130 EN
Cert 23-1130 DE
Cert 23-1130 EN
Cert 23-1130 DE
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
TSF700D36-2029
Ukraine (Ukraine) chevron-down
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26

Data sheets

chevron-down
CR_06810_06815_1_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_06810_06815_1-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
001SV (DE, EN, RU)
More Information
Type (Series) 06810,06815
Solution H2
Solution Area Manufacturing, Transport, Storage, Application
SKU CR_06810_06815_1

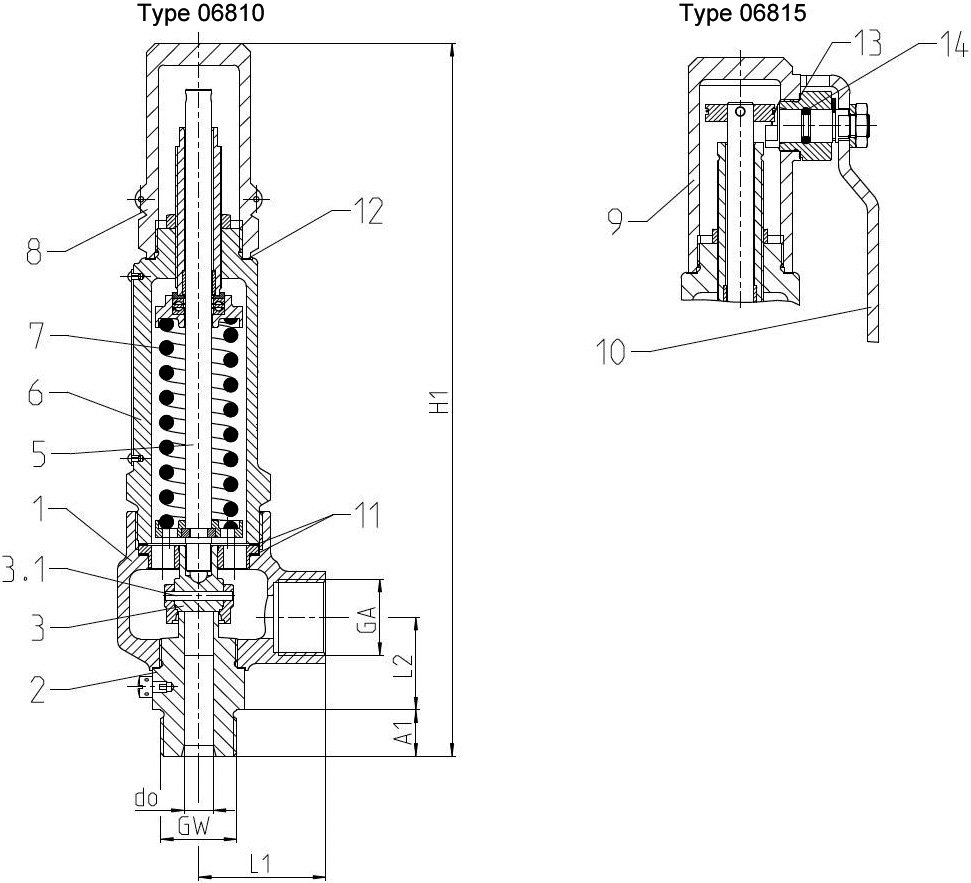

Materials

Materials

DIN EN

ASME/ASTM

1

Outlet body

1.4408

A 351 CF 8M

2

Inlet body

1.4571

A 276 Grade 316Ti

3

Disc

1.4571

A 276 Grade 316Ti

5

Stem

1.4404

A 276 Grade 316L

6

Bonnet

1.4408

A 351 CF8M

7

Spring

1.4571

A 313 Grade 316Ti

8

Cap

1.4408

A 351 CF8M

9

Lifting cap

1.4408

A 351 CF8M

10

Lever

1.4301

A 276 Grade 304

Spare Parts

2

Inlet body

1.4571

316Ti

3

Disc

1.4571

316Ti

3.1

Split pin

1.4310

301

11

Gasket

Graphite

12

Gasket

PTFE

13

Gasket

PTFE

14

O-ring

FPM (VITON)

Versions

Type 06810, 06815

Technical data

Nominal size

GW

1/2

1/2

3/4

3/4

1/2

1/2

3/4

Orifice

d0

6.0

6.0

6.0

6.0

10.0

10.0

10.0

Dimension code

.X.

0622

0623

0632

0633

1022

1023

1033

Set pressure range

bar

30-400

30-400

30-550

30-550

0.5-180

0.5-180

0.5-180

Outlet

GA

1/2

3/4

1/2

3/4

1/2

3/4

3/4

Height

H1

245

245

247

247

245

245

245

Length

L1

44

44

44

44

44

44

44

Length

L2

32

32

32

32

32

32

32

Length

A1

14

14

16

16

14

14

16

Weight 06810

ca. kg

1.8

1.8

1.8

1.8

1.8

1.8

1.8

Weight 06815

ca. kg

2.0

2.0

2.0

2.0

2.0

2.0

2.0

Coeff. of discharge gases, vapours

αw

0.52

0.52

0.52

0.52

0.5

0.5

0.5

Coeff. of discharge fluids

αw

0.42

0.42

0.42

0.42

0.5

0.5

0.5
