Type 06810, Type 06815 - Sealing plate

Datasheet ID: CR_06810_06815_2

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure in gas cylinders and pressure vessels. Approved for gases, vapours and liquids. Pressure-temperature must be observed, suitable for horizontal installation from 20 bar

Description

chevron-down

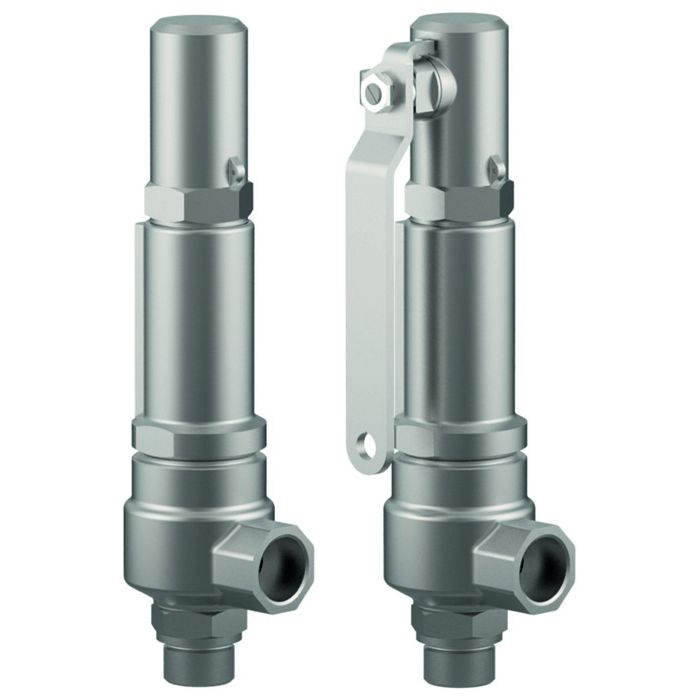

Safety Valves, angle type, stainless steel, type tested, TÜV-SV.1130. S/G/L

Standard safety valve

with soft valve seal, "cleaned and degreased"

closed bonnet, gastight cap or lifting device

Inlet / Outlet: male / female thread type G (BSPP) acc. to ISO 228/1

Pmax 150.0 bar (S/G/L): Vespel seal, max. Temp. -270°C (3K) up to +300°C (573K)

Part No. 06810.10XX.000001L with cap

Part No. 06815.10XX.000001L with lifting device

Pmax 800.0 bar (S/G): PEEK seal, max. Temp. -60°C (213K) up to +85°C (358K)

Part No. 06810.04X3.000001W with cap

Part No. 06810.0423.503001W with inlet 13/16''-16 UN

Available options - on request only:

· NPT- connection for in- and outlet

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
07-202-1201-Z-0121-18-D-0089
0045/202/1201/Z/00281/22/D/001(03)
07-202-1201-Z-0121-18-D-0089
0045/202/1201/Z/00281/22/D/001(03)
TÜV Verband (Approval mark number) chevron-down
Cert 23-1130 EN
Cert 23-1130 DE
Cert 23-1130 EN
Cert 23-1130 DE
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
TSF700D36-2029
Ukraine (Ukraine) chevron-down
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26
Korean Gas Safety (KGS) chevron-down
ES-505
ES-505

Data sheets

chevron-down
CR_06810_06815_2_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_06810_06815_2-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
001SV (DE, EN, RU)
More Information
Type (Series) 06810,06815
Solution H2
Solution Area Manufacturing, Transport, Storage, Application
SKU CR_06810_06815_2
Materials

Materials

DIN EN

ASME/ASTM

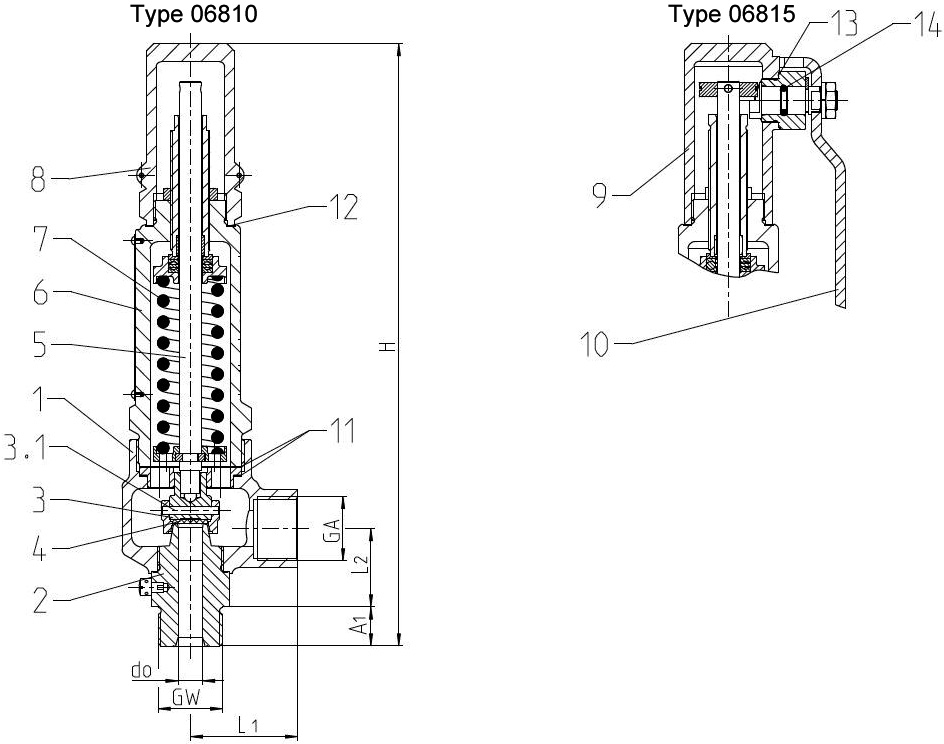

1

Outlet body

1.4408

A 351 CF8M

2

Inlet body

1.4404

A 276 Grade 316L

3

Disc

1.4571

A 276 Grade 316Ti

4

Sealing plate

VESPEL / PEEK

5

Stem

1.4404

A 276 Grade 316L

6

Bonnet

1.4408

A 351 CF8M

7

Spring

1.4571

A 313 Grade 316Ti

8

Cap

1.4408

A 351 CF8M

9

Lifting cap

1.4408

A 351 CF8M

10

Lever

1.4301

A 276 Grade 304

Spare Parts

2

Inlet body

1.4404

316L

3.1

Split pin

1.4571

316Ti

4

Sealing plate

VESPEL / PEEK

11

Gasket

1.4404 Graphite

316L Graphite

12

Gasket

PTFE

13

Gasket

PTFE

14

O-ring

FPM (VITON)

Versions

Type 06810, 06815

Technical data

Nominal size

GW

1/2

3/4

13/16'' - 16 UN

1/2

1/2

3/4

Orifice

d0

4.0

4.0

4.0

10.0

10.0

10.0

Dimension code

.X.

0423

0433

0423

1022

1023

1033

Set pressure range

bar

260-400

260-800

260-800

1.5-150

1.5-150

1.5-150

Outlet

GA

3/4

3/4

3/4

1/2

3/4

3/4

Height

H1

247

247

247

245

245

245

Length

L1

45

45

45

44

44

44

Length

L2

29

29

29

32

32

32

Length

A1

16

16

16

14

14

16

Weight 06810

ca. kg

1.9

1.9

1.9

1.8

1.8

1.8

Weight 06815

ca. kg

2.1

2.1

2.1

2.0

2.0

2.0

Coeff. of discharge gases/vapours

αw

0.66

0.66

0.66

0.50

0.50

0.50

Coeff. of discharge fluids

αw

-

-

-

0.50

0.50

0.50
?
