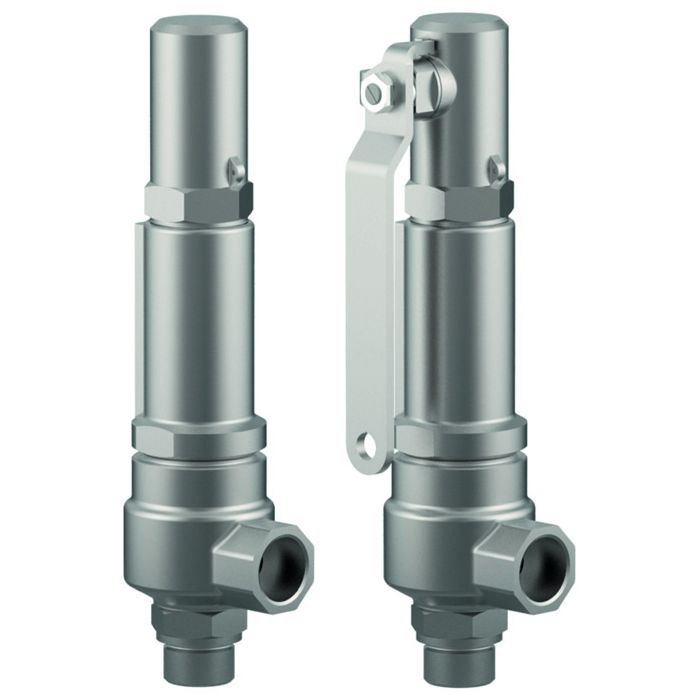

Type 06810, Type 06815 - O-ring

Datasheet ID: CR_06810_06815_3

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure in gas cylinders and pressure vessels. Approved for gases and liquids. Working temperature: -10°C / 14°F (263K) up to 70°C / 158°F (343K), suitable for horizontal installation from 20 bar.

Description

chevron-down

Safety Valves, angle type, stainless steel, type tested, TÜV-SV.1130. S/G/L

Standard safety valve

with O-ring valve seal, "cleaned and degreased"

closed bonnet, gastight cap or lifting device

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06810.X.000002N (Pmax 15.99 bar)

Part No. 06815.X.000002N (Pmax 15.99 bar)

with NBR O-ring valve seal

Part No. 06810.X.000002F (Pmin 16.00 bar, Pmax 180.0 bar)

Part No. 06815.X.000002F (Pmin 16.00 bar, Pmax 180.0 bar)

with FKM O-ring valve seal

Available options - on request only:

· Flange-, NPT- or Tri-Clamp connection for in- and outlet

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
07-202-1201-Z-0121-18-D-0089
0045/202/1201/Z/00281/22/D/001(03)
07-202-1201-Z-0121-18-D-0089
0045/202/1201/Z/00281/22/D/001(03)
TÜV Verband (Approval mark number) chevron-down
Cert 23-1130 EN
Cert 23-1130 DE
Cert 23-1130 EN
Cert 23-1130 DE
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
TSF700D36-2029
Ukraine (Ukraine) chevron-down
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26
Korean Gas Safety (KGS) chevron-down
ES-505
ES-505

Data sheets

chevron-down
CR_06810_06815_3_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_06810_06815_3-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
001SV (DE, EN, RU)
More Information
Type (Series) 06810,06815
Solution H2
Solution Area Manufacturing, Transport, Storage, Application
SKU CR_06810_06815_3

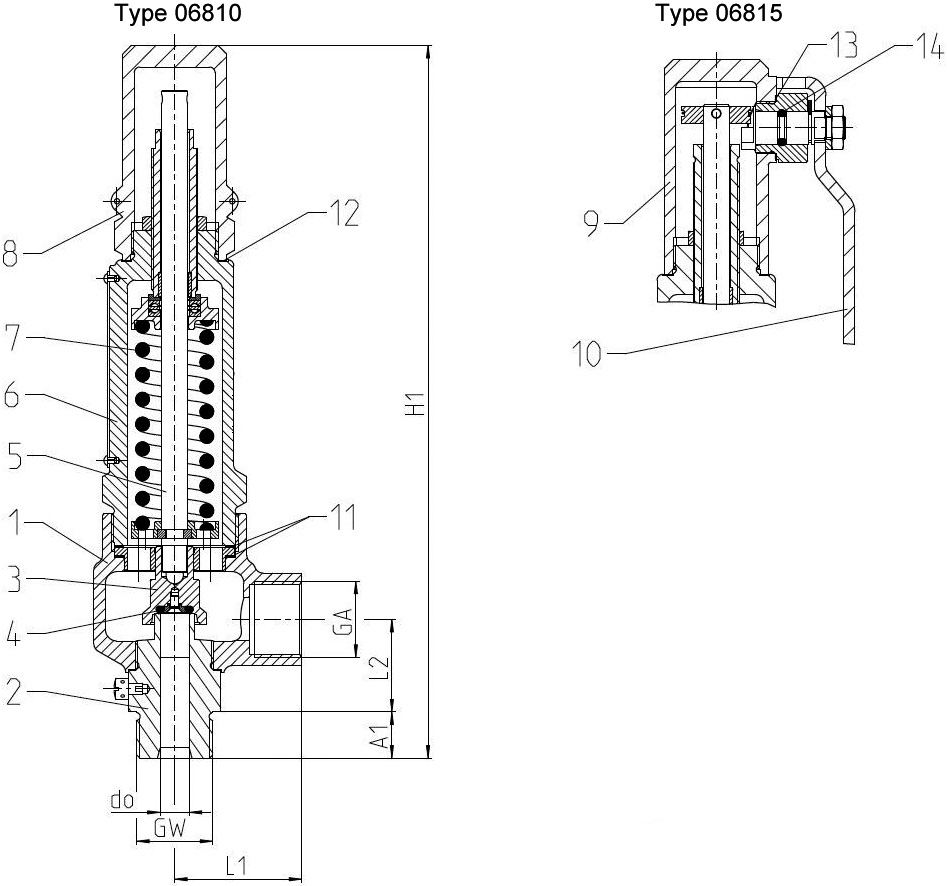

Materials

Materials

DIN EN

ASME/ASTM

1

Outlet body

1.4408

A 351 CF8M

2

Inlet body

1.4571

A 276 Grade 316Ti

3

Disc

1.4571

A 276 Grade 316Ti

4

O-ring

NBR or FKM

5

Stem

1.4404

A 276 Grade 316L

6

Bonnet

1.4408

A 351 CF8M

7

Spring

1.4571

A 313 Grade 316Ti

8

Cap

1.4408

A 351 CF8M

9

Lifting cap

1.4408

A 351 CF8M

10

Lever

1.4301

A 276 Grade 304

Spare Parts

3

Complete disc

1.4571+NBR or FKM

316Ti + NBR or FKM

4

O-ring + screw

NBR or FKM

11

Gasket

1.4404 Graphite

316L Graphite

12

Gasket

PTFE

13

Gasket

PTFE

14

O-ring

FPM (VITON)

Versions

Type 06810, 06815

Technical Data

D0

[mm]

10

Inlet

GW

1/2

1/2

3/4

Outlet

GW

1/2

3/4

3/4

Dimension code

.X.

1022

1023

1033

Height

H1

245.0

245.0

245.0

Length

L1

44.0

44.0

44.0

Length

L2

32.0

32.0

32.0

Length

A1

14.0

14.0

16.0

Weight 06810

ca. kg

1.8

1.8

1.8

Weight 06815

ca. kg

2.0

2.0

2.0

Coeff. of discharge

αw S/G/L

0.50

0.50

0.50

Min. set pressure

bar-g

3.0

3.0

3.0

Max. set pressure

bar-g

180.0

180.0

180.0
?
