Type 08732 - Strainer, ASME B16.5 Flanges

Datasheet ID: CR_08732_3

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

chevron-down

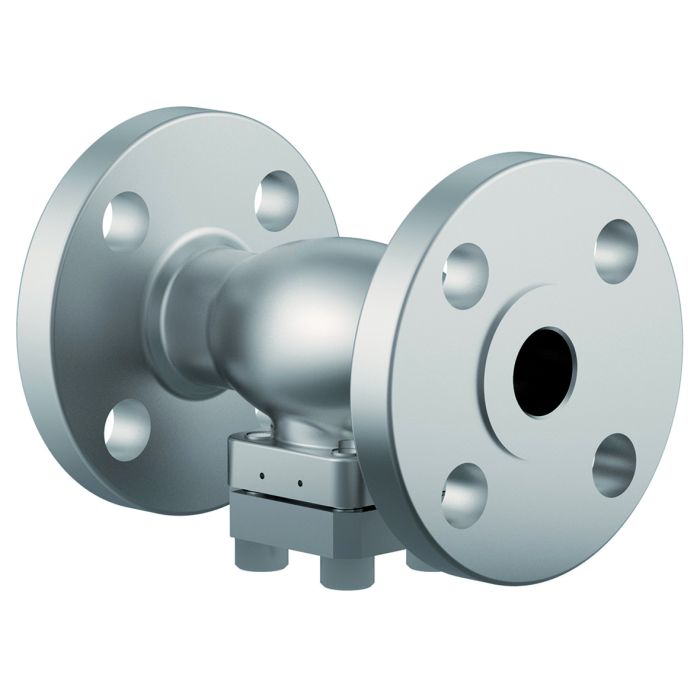

Cryogenic-Strainer, class 150

Stainless steel body and cap

with strainer screen mesh size 0.25 mm

“cleaned and degreased for oxygen service"

Part No. 08732.X.0001

Flanged connection acc. to ASME B16.5 class 150

Available options - on request only:

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various porosities

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_DN200-05XXX_08XXX
type-examination fire-safe (DIN EN ISO 10497) chevron-down
FS-Certificate_05XXX_08XXX
DNV (Class Rules) chevron-down
TAP00000KE Rev. 3
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
BV (Class Rules) chevron-down
33679/C1 BC
SMS.W.I./11744/C.0
Lloyd's Register (Class Rules) chevron-down
LR25294732TA
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006

Data sheets

chevron-down
CR_08732_3_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
More Information
Type (Series) 08732
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08732_3

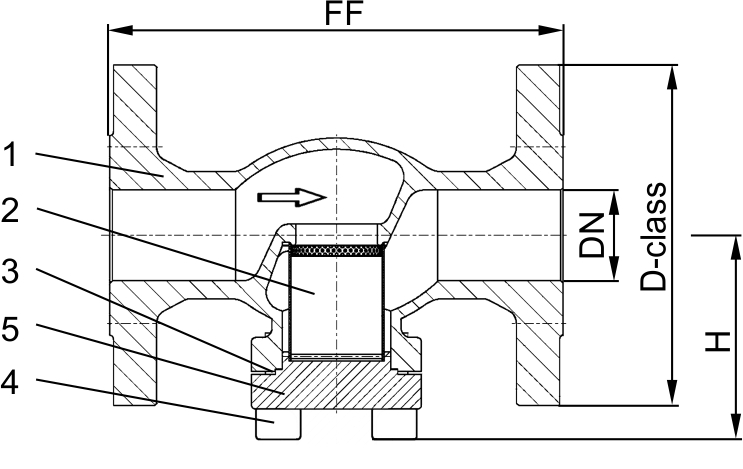

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Strainer screen

1.4404

A 276 Grade 316L

3

Bonnet gasket

Graphite

4

Bolts

1.4571/A4

similar A 194 B8T

5

Cap

1.4404

A 276 Grade 316L
Versions

Type 08732 - Standard design

Technical data

Nominal size

DN

15

20

25

40

50

65

80

100

150

Dimension code - Flange ASME B16.5 class 150

.X.

0400

0600

1000

1400

2000

2400

3000

4000

6000

Flange-Ø

D-class

90

100

110

125

150

180

190

230

280

Face-to-face dimension

FF

140

150

160

200

230

290

310

350

577

Height

H

62

69

69

89

89

125

150

166

212

Weight

ca. kg

2.5

3.0

4.0

5.6

10.6

17.7

23.2

36.8

76.9

Kvs-Value

m³/h

4.3

6.7

9.5

21.0

28.0

62.0

90.0

118.0

on request

Cv-Value

gal/min

5.0

7.8

11.0

24.3

32.4

72.3

105.0

137.7

on request
?
