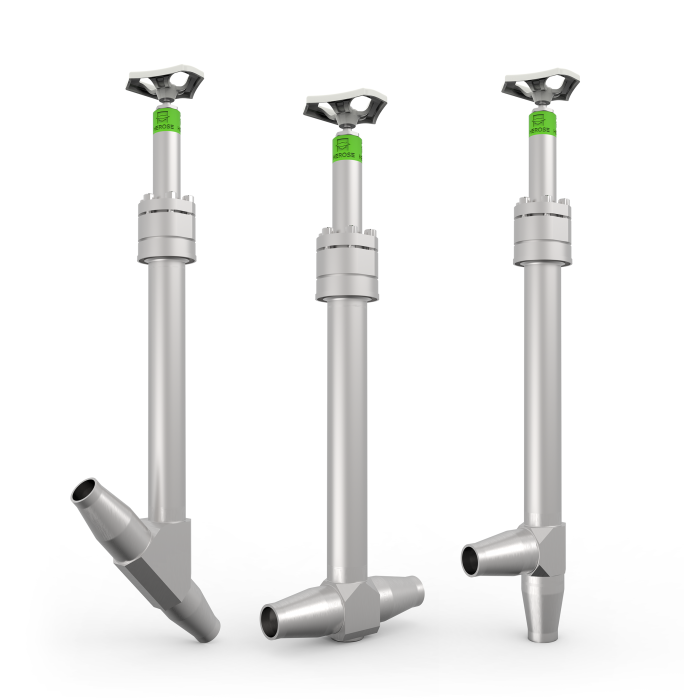

Type 11C01 - Globe Valve FullX

Datasheet ID: CR_11C01_1_N

Field of application

chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -269°C / -452°F (4K) up to +80°C / +176°F (353K)

Description

chevron-down

Top-Entry Cryogenic-Globe Valves, solid bar stock body, up to PN63

A001 series

Stainless steel body and topwork,

"live loaded" gland packing

"cleaned and degreased for oxygen service"

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options:

· Bellow, top position

· Bellow monitoring

· Check function

· Control function

· Throttle function

· Purge port

- on request only:

· Further connection types

Certificates

chevron-down
BV (Class Rules) chevron-down
33353/C0 BV
SMS.W.I./11744/C.0
ClassNK (Class Rules) chevron-down
TA23383M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
License of Special Equipment (China) (TS) chevron-down
TS2700G39-2029
TS2700G39-2029
TS2700G39-2029

Data sheets

chevron-down
CR_11C01_1_N_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_11C01_1_N-1

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTV (DE, EN)
TTV (DE, EN)
TTV (DE, EN)
TTV (DE, EN)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
More Information
Type (Series) 11C01
Solution H2, Air Gases
Solution Area Transport, Storage
SKU CR_11C01_1_N
Materials

Materials

DIN EN

ASTM

1

Body

1.4571

A 313 Grade 316TI

2

Valve seal

PCTFE

3

Disc

1.4571

A 313 Grade 316TI

4

Tube

1.4571

A 313 Grade 316TI

5

Hollow stem

1.4571

A 313 Grade 316TI

6

Flange

1.4404

A 276 Grade 316L

7

Bonnet gasket

PTFE / Elektrocarbon (25%)

8

Bushing

CW452K

B 159 UNS C51900

9

Bolt

A4-70

A 194 B8M

10

Nut

1.4404

A 276 Grade 316L

11

Head piece

1.4404

A 276 Grade 316L

12

Ball bearing

1.4125

440C

13

Sliding bushing

CW452K

B 159 UNS C51900

14

Stem ring

CW452K

B 159 UNS C51900

15

Gasket

PTFE / Elektrocarbon (25%)

16

Cap

PVC

17

Gland bold

1.4404

A 276 Grade 316L

18

Wiper

PEEK

19

Stem

1.4404

A 276 Grade 316L

20

Handwheel

1.4409

A 351 CF3M

21

O-ring

FPM (VITON)

Versions

Nominal size

DN

10

15

20

25

32

40

50

80

Collar-Ø

G

68.0

68.0

68.0

68.0

84.4

84.4

100

134

Length

M

5

5

5

5

5

5

5

5

Handwheel-Ø

B

100

100

100

100

125

125

125

150

Outside pipe-Ø ISO

Ra

17.2

21.3

26.9

33.7

42.4

48.3

60.3

88.9

Wall thickness pipe ISO

a

1.8

2.0

2.3

2.6

2.6

2.6

2.9

3.2

Pipe-Ø ASTM A312

␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣S10

?
