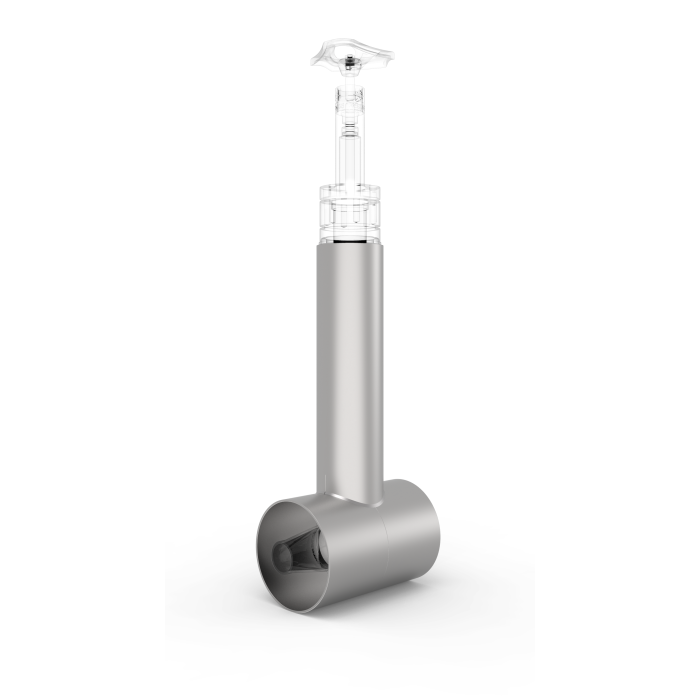

Typ 11C01 - Absperrventil FullX

Datasheet ID: CR_11C01_2_N

Description

chevron-down

Option vacuum jacketing (1.4404)

- on request only:

· Additional length vacuum jacketing

· Additional body types

Certificates

chevron-down
BV (Class Rules) chevron-down
33353/C0 BV
SMS.W.I./11744/C.0
ClassNK (Class Rules) chevron-down
TA23383M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
RINA (Class Rules) chevron-down
MAC322723XG
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100427971/4 Iss. 04
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 04
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 04
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 04
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 06
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 06
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 06
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 06
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
License of Special Equipment (China) (TS) chevron-down
TS2700G39-2029
TS2700G39-2029
TS2700G39-2029

Data sheets

chevron-down
CR_11C01_2_N_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTV (DE, EN)
TTV (DE, EN)
TTV (DE, EN)
TTV (DE, EN)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
More Information
Type (Series) 11C01
Solution H2, Air Gases
Solution Area Transport, Storage
SKU CR_11C01_2_N
Materials

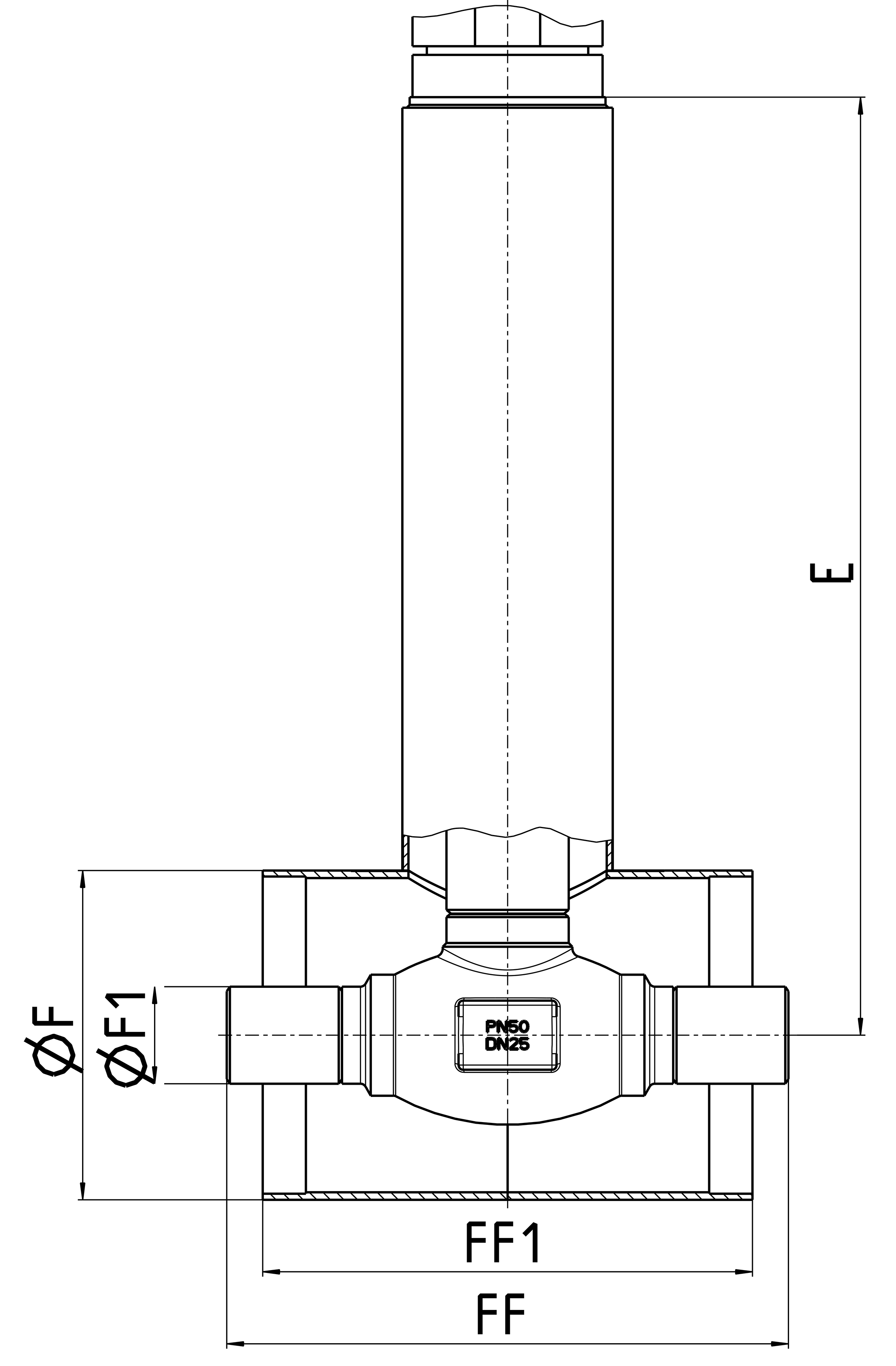

Versions

Nominal size

DN

10

15

20

25

32

40

50

Length

E

325

325

325

325

445

445

525

Length vacuum jacketing

FF1

125

125

170

170

210

210

255

Face-to-face dim.

FF

150

150

195

195

235

235

280

Pipe-Ø ISO

F1

Ø17,2x1,8

Ø21,3x2

Ø26,9x2,3

Ø33,7x2.6

Ø42,4x2,6

Ø48,3x2,6

Ø60,3x2,6

Pipe-Ø ASTM

F1

3/8''S10 (A001)

1/4''S10 (A002)

1/2''S10

3/4''S10

1''S10

1 1/4''S10

1 1/2''S10

2''S10

Vacuum jacketing-Ø ISO

F

Ø88,9x2

Ø88,9x2

Ø114,3x2

Ø114,3x2

-

-

Ø168,3x2,6

Vacuum jacketing-Ø ASTM

F

3"S5

3"S5

4"S5

4"S5

5"S5

5"S5

6"S5
?
