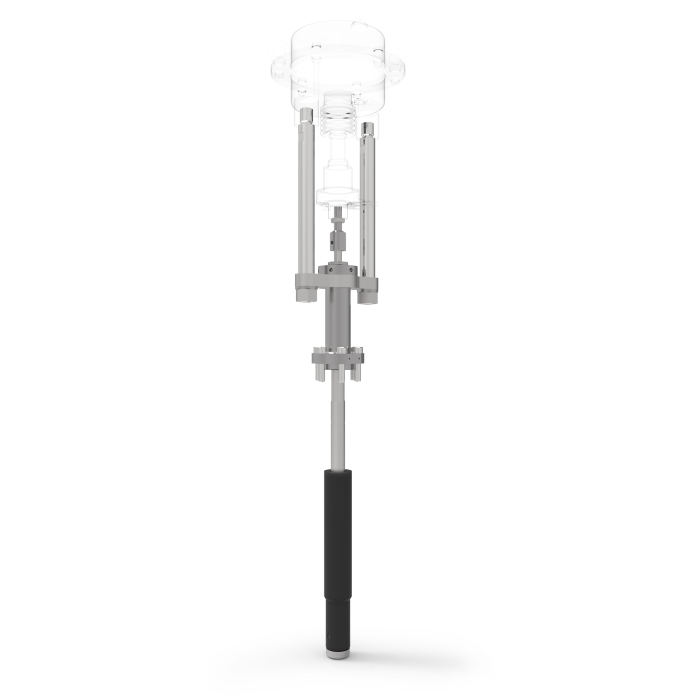

Type 11C01 - Globe Valve FullX

Datasheet ID: CR_11C01_5_N

Description

chevron-down

Top-Entry Cryogenic-Globe Valves - w/o bellows

"cleaned and degreased for oxygen service"

Part No. 11C01.X.E0030X - actuator (diaphragm)

Certificates

chevron-down
BV (Class Rules) chevron-down
33353/C0 BV
SMS.W.I./11744/C.0
ClassNK (Class Rules) chevron-down
TA23383M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
License of Special Equipment (China) (TS) chevron-down
TS2700G39-2029
TS2700G39-2029
TS2700G39-2029

Data sheets

chevron-down
CR_11C01_5_N_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTV (DE, EN)
TTV (DE, EN)
TTV (DE, EN)
TTV (DE, EN)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
More Information
Type (Series) 11C01
Solution H2, Air Gases
Solution Area Transport, Storage
SKU CR_11C01_5_N

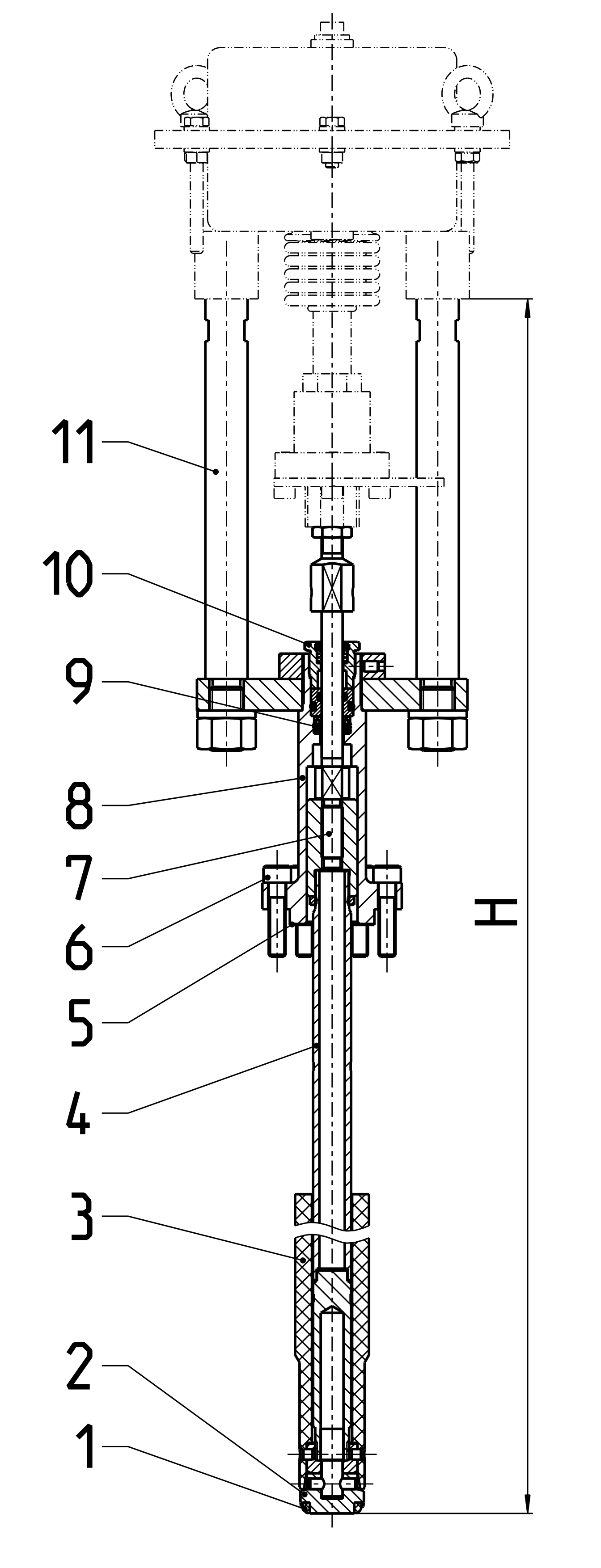

Materials

Materials

DIN EN

ASTM

1

Valve seal

PCTFE

2

Disc

1.4571

A 313 Grade 316Ti

3

Bushing

PTFE / Electrocarbon (25%)

4

Hollow stern

1.4571

A 313 Grade TP316Ti

5

Bonnet gasket

PTFE

6

Bolts

A4-70

A 194 B8M

7

Stem

1.4404

A 276 Grade 316L

8

Headpiece

1.4404

A 276 Grade 316L

9

Valve Seal

PTFE / Electrocarbon (25%

10

Gland bold

1.4404

A 276 Grade 316L

11

Pillar

1.4404

A 276 Grade 316L
Versions

Type 11C01

Technical data

Nominal size

DN

10

15

20

25

32

40

50

Dimension code

.X.

001X

001X

002X

002X

3240

3240

0050

Height

H

675

675

676

676

796

796

896

Handwheel-Ø

B

100

100

100

100

125

125

125

Weight

ca. kg

3.5

3.5

3.6

3.6

8.7

8.7

11.3
?
