Type 11C01 - Globe Valve FullX
The product shown in the picture may differ from the product sold.
Description

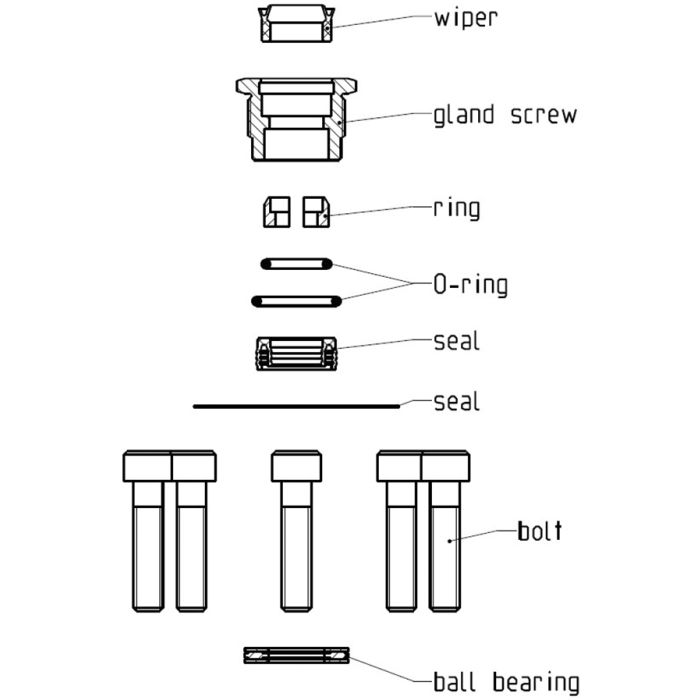

Sealing spare part kit – without bellow & bellow top position
"cleaned and degreased for oxygen service"
consisting of:
· 1x wiper PEEK
· 1x gland bold 1.4404
· 1x stem ring CW452K
· 2x O-ring FPM
· 1x gasket PTFE / 25% Carbon filled
· 6x bonnet gasket PTFE
· 6x or 8x bolt A4
· 1x ball bearing 1.4125
Part No. 11C01.00XX.E00101
Certificates
BV (Class Rules)
ClassNK (Class Rules)
DNV (Class Rules)
RINA (Class Rules)
Transportable Pressure Equipment Directive (2010/35/EU)
Transportable Pressure Equipment Regulation 2009 (TPER 2009)
CCS (Class Rules)
Lloyd's Register (Class Rules)
Ukraine (Ukraine)
Pressure Equipment Directive (2014/68/EU)
License of Special Equipment (China) (TS)
Data sheets
Declarations of Conformity
Transportable Pressure Equipment Regulation 2009 (TPER 2009)
Transportable Pressure Equipment Directive (2010/35/EU)
Pressure Equipment Directive (2014/68/EU)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 11C01 |
|---|---|
| Solution | H2, Air Gases |
| Solution Area | Transport, Storage |
| SKU | CR_11C01_6_N |
Type 11C01 |
Technical data |
|||||||
|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
Dimension code |
.X. |
0000 |
0000 |
0000 |
0000 |
3240 |
3240 |
0050 |
Weight |
ca. kg |
0.14 |
0.14 |
0.14 |
0.14 |
0.24 |
0.24 |
0.28 |
