HEROSE Type 11C01 - Globe Valve FullX with actuator

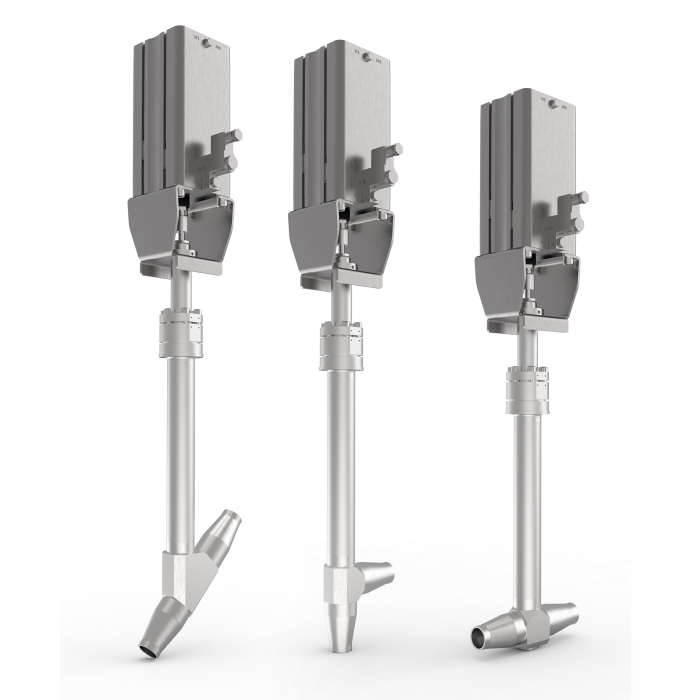

The product shown in the picture may differ from the product sold.

Type 11C01 - Globe Valve FullX with actuator

Datasheet ID: CR_11C01_6

Field of application

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -269°C / -452°F (4K) up to +80°C / +176°F (353K)

Description

Top-Entry pneumatic actuated Cryogenic-Globe Valves, forged steel body, up to PN63

A009 series

Stainless steel body and topwork,

actuator - spring to close, air to open

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

- the actuator is not cleaned and degreased für oyxgen

Butt weld connection for stainless steel pipes acc. to ISO 1127 oder ASTM A312

Available accessories/options:

· Solenoid valve · Limit switch · Electropneumatic positioner etc.

· Actuator - cleaned and degreased for oxygen service

· Bellow, top position

· Bellow, bottom position

· Bellow monitoring

· Check function

· Control function

· Throttle function

· Purge port

- On request only:

· Further connection types

Certificates

BV (Class Rules)

33353/C0 BV

SMS.W.I./11744/C.0

ClassNK (Class Rules)

TA23383M

DNV (Class Rules)

TAP00000MM Rev. 3

RINA (Class Rules)

MAC322723XG

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00366/23/D/001(00)

Transportable Pressure Equipment Directive (2010/35/EU)

0343/TPED/MUM/PRJ11100427971/4 Iss. 02

0343/TPED/MUM/PRJ11100427971/3

0343/TPED/MUM/PRJ11100427971/4 Iss. 02

0343/TPED/MUM/PRJ11100427971/3

0343/TPED/MUM/PRJ11100427971/4 Iss. 02

0343/TPED/MUM/PRJ11100427971/3

0343/TPED/MUM/PRJ11100427971/4 Iss. 02

Transportable Pressure Equipment Regulation 2009 (TPER 2009)

0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04

0038/UK/TPER/PRJ11100427971/1 Iss. 3

0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04

0038/UK/TPER/PRJ11100427971/1 Iss. 3

0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04

0038/UK/TPER/PRJ11100427971/1 Iss. 3

0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04

CCS (Class Rules)

HB24PTB00028

HB25PTB00055

Lloyd's Register (Class Rules)

LR2508712TA-02

LR2695076QAES

Ukraine (Ukraine)

UA.276.127.03-26

UA.D.127.04-26

UA.276.127.03-26

UA.D.127.04-26

UA.276.127.03-26

UA.D.127.04-26

UA.276.127.03-26

UA.D.127.04-26

Data sheets

CR_11C01_6_en.pdf

Declarations of Conformity

Transportable Pressure Equipment Regulation 2009 (TPER 2009)

TTV (DE, EN)

Transportable Pressure Equipment Directive (2010/35/EU)

TTV2 (DE, EN, CN)

TTV2 (DE, EN, CZ)

TTV2 (DE, EN, ES)

TTV2 (DE, EN, FR)

TTV2 (DE, EN, IT)

TTV2 (DE, EN, NL)

TTV2 (DE, EN, PL)

TTV2 (DE, EN, RU)

Pressure Equipment Directive (2014/68/EU)

002TTV (DE, EN, CN)

002TTV (DE, EN, CZ)

002TTV (DE, EN, ES)

002TTV (DE, EN, FR)

002TTV (DE, EN, IT)

002TTV (DE, EN, NL)

002TTV (DE, EN, PL)

002TTV (DE, EN, RU)

More Information
Materials
Versions

More Information

Type (Series)	11C01
Solution	H2, LNG, Air Gases
Solution Area	Manufacturing, Transport, Storage, Refueling, Processes
SKU	CR_11C01_6

Materials

Materials		DIN EN	ASTM
1	Body	1.4571	A 313 Grade 316TI
2	Valve seal	PCTFE
3	Disc	1.4571	A 313 Grade 316TI
4	Tube	1.4571	A 313 Grade 316TI
5	Hollow stem	1.4571	A 313 Grade 316TI
6	Flange	1.4404	A 276 Grade 316L
7	Bonnet gasket	PTFE / Elektrocarbon (25%)
8	Bushing	CW452K	B 159 UNS C51900
9	Bolt	A4-70	A 194 B8M
10	Head peace	1.4404	A 276 Grade 316L
11	Sliding bushing	CW452K	B 159 UNS C51900
12	Gasket	PTFE / Elektrocarbon (25%)
13	Gland bolt	1.4404	A 276 Grade 316L
14	Wiper	PEEK	B 159 UNS C51900
15	Stem	1.4404	A 276 Grade 316L
16	O-ring	FPM (VITON)
17	Bracket	1.4404	A 276 Grade 316L

Versions

Nominal size	DN	10	15	20	25	32	40	50
Collar-Ø	G	68.0	68.0	68.0	68.0	84.4	84.4	100
Length	M	5	5	5	5	5	5	5
Actuator-Ø	B	␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣dependent on actuator
Outside pipe-Ø ISO	Ra	17.2	21.3	26.9	33.7	42.4	48.3	60.3
Wall thickness pipe ISO	a	1.8	2.0	2.3	2.6	2.6	2.6	2.9
Pipe-Ø ASTM A312		␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣S10
