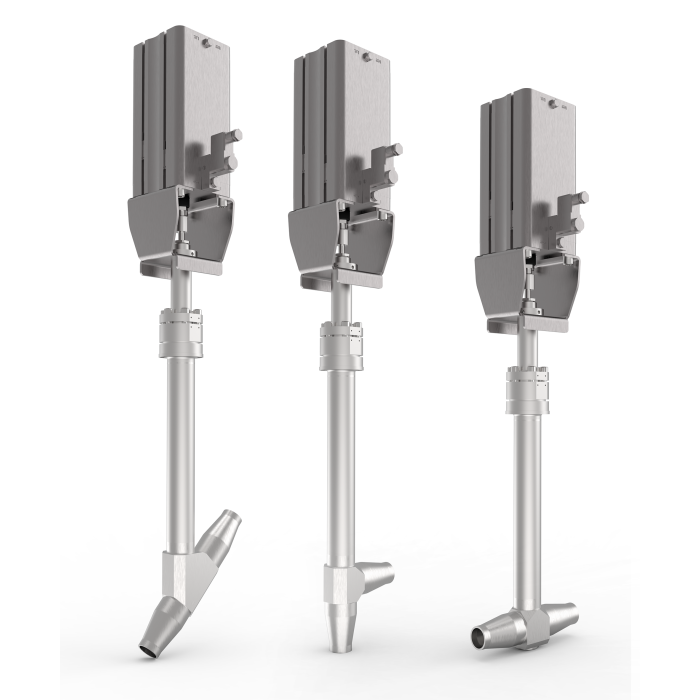

Type 11C01 - Globe Valve FullX with actuator

Datasheet ID: CR_11C01_8_N

Field of application

chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -269°C / -452°F (4K) up to +80°C / +176°F (353K)

Description

chevron-down

Top-Entry pneumatic actuated Cryogenic-Globe Valves, forged steel body, up to PN63

A009 series

Stainless steel body and topwork,

actuator - spring to close, air to open

"live loaded" gland packing

"cleaned and degreased for oxygen service"

- the actuator is not cleaned and degreased für oyxgen

Butt weld connection for stainless steel pipes acc. to ISO 1127 oder ASTM A312

Available accessories/options:

· Solenoid valve · Limit switch · Electropneumatic positioner etc.

· Actuator - cleaned and degreased for oxygen service

· Bellow, top position

· Bellow monitoring

· Check function

· Control function

· Throttle function

· Purge port

- On request only:

· Further connection types

Certificates

chevron-down
BV (Class Rules) chevron-down
33353/C0 BV
SMS.W.I./11744/C.0
ClassNK (Class Rules) chevron-down
TA23383M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
RINA (Class Rules) chevron-down
MAC322723XG
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100427971/4 Iss. 04
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 04
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 04
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 04
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 06
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 06
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 06
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 06
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
0045/202/1201/Z/00280/26/D/001(00)
0045/202/1201/Z/00280/26/D/001(00) Annex 1
0045/202/1201/Z/00280/26/D/001(00) Annex 2
License of Special Equipment (China) (TS) chevron-down
TS2700G39-2029
TS2700G39-2029
TS2700G39-2029

Data sheets

chevron-down
CR_11C01_8_N_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTV (DE, EN)
TTV (DE, EN)
TTV (DE, EN)
TTV (DE, EN)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
More Information
Type (Series) 11C01
Solution H2, Air Gases
Solution Area Transport, Storage
SKU CR_11C01_8_N
Materials

Materials

DIN EN

ASTM

1

Body

1.4571

A 313 Grade 316TI

2

Valve seal

PCTFE

3

Disc

1.4571

A 313 Grade 316TI

4

Tube

1.4571

A 313 Grade 316TI

5

Hollow stem

1.4571

A 313 Grade 316TI

6

Flange

1.4404

A 276 Grade 316L

7

Bonnet gasket

PTFE / Elektrocarbon (25%)

8

Bushing

CW452K

B 159 UNS C51900

9

Bolt

A4-70

A 194 B8M

10

Head peace

1.4404

A 276 Grade 316L

11

Sliding bushing

CW452K

B 159 UNS C51900

12

Gasket

PTFE / Elektrocarbon (25%)

13

Gland bolt

1.4404

A 276 Grade 316L

14

Wiper

PEEK

B 159 UNS C51900

15

Stem

1.4404

A 276 Grade 316L

16

O-ring

FPM (VITON)

17

Bracket

1.4404

A 276 Grade 316L
Versions

Nominal size

DN

10

15

20

25

32

40

50

Collar-Ø

G

68.0

68.0

68.0

68.0

84.4

84.4

100

Length

M

5

5

5

5

5

5

5

Actuator-Ø

B

␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣dependent on actuator

Outside pipe-Ø ISO

Ra

17.2

21.3

26.9

33.7

42.4

48.3

60.3

Wall thickness pipe ISO

a

1.8

2.0

2.3

2.6

2.6

2.6

2.9

Pipe-Ø ASTM A312

␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣S10

?
