Type 15C02 - Ball Valve with Pneumatic Actuator
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases (only for ball valves with a vent hole
in the ball) and mixtures thereof, including natural gas and ammonia.
Working temperature: -60°C / -76°F (213K) up to +190°C / +374°F (463K)
Description
Cryogenic Ball Valve
Bidirectional ball valve
(Optional: unidirectional with vent hole for liquid medium)
Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312
Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312
Female thread type NPT acc. to ANSI 1.20.1
Female thread type G (BSPP) acc. to ISO 228/1
Antistatic design acc. ISO 7121
Marking acc. to EN 1626
Top flange to EN ISO 5211
"cleaned and degreased for oxygen service"
Actuator:
spring to close (optional spring to open)
Maximum air pressure for operation: 8 bar
Medium: Air, Nitrogen, NG (sulphide content <2ppm)
Connection air supply: NAMUR G1/4"
Ambient temperature limit: -20°C / -4°F (253K) up to +80°C / 176°F (353K)
Part No. 15C02.A002.XXXXXX
Available accessories:
· Limit switch
· Solenoid valve
Certificates
Pressure Equipment Directive (2014/68/EU)
Ukraine (Ukraine)
Transportable Pressure Equipment Directive (2010/35/EU)
Transportable Pressure Equipment Regulation 2009 (TPER 2009)
Data sheets
Declarations of Conformity
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Pressure Equipment Directive (2014/68/EU)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 15C02 |
|---|---|
| Solution | LNG, Air Gases, Industry |
| Solution Area | Transport, Storage, Refueling, Processes, Compressed Air |
| SKU | CR_15C02_1 |

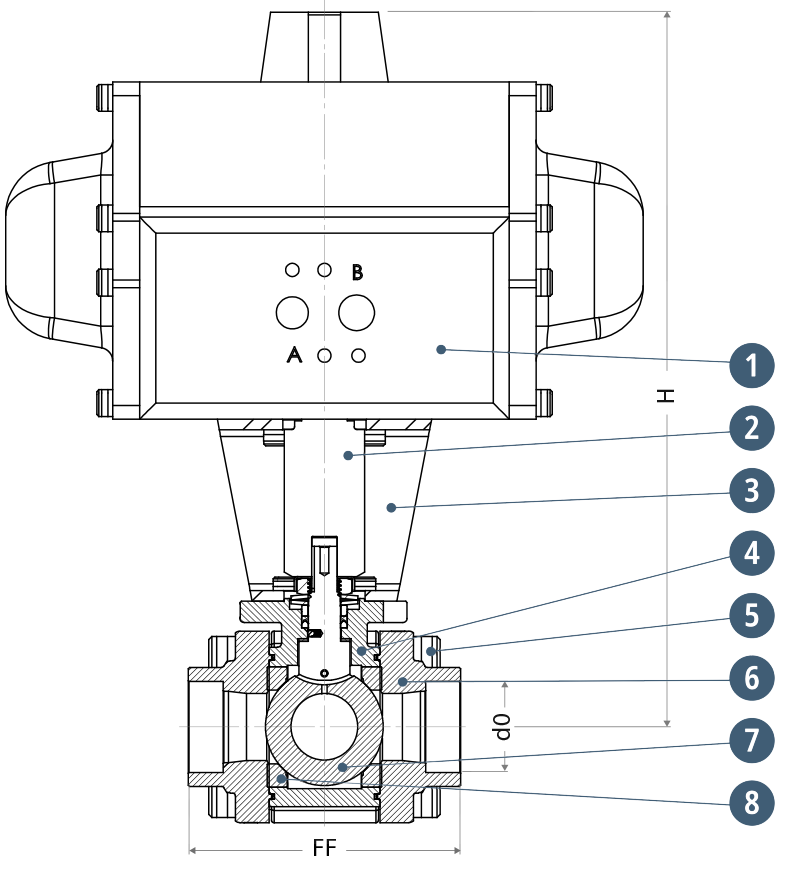

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Actuator |
Aluminium |
Aluminium |
2 |
Adapter |
1.4314 |
A276 Grade 304 |
3 |
Bracket |
1.4509 |
A240 Grade 304 |
4 |
Screws |
1.4571/A4 |
similar A 194 BBT |
5 |
Body |
1.4409 |
A 351 CF3M |
6 |
Side connection |
1.4409 |
A 351 CF3M |
7 |
Ball |
1.4404 |
A 479 Grade 316L |
8 |
Ball seal |
PTFE (Inoflon M295) |
Technical data - Standard design |
||||||
|---|---|---|---|---|---|---|
Nominal size [DN] |
Height (H) [mm] |
Orifice (D0) [mm] |
Weight [kg] |
Kvs-value [m³/h] |
Cv-value [gal/min] |
ISO 5211 |
10 |
232 |
8.0 |
4.0 |
5.7 |
6.6 |
F05 |
15 |
232 |
14.5 |
4.0 |
10.7 |
12.4 |
F05 |
20 |
262 |
19.5 |
7.8 |
24.7 |
28.6 |
F05 |
25 |
267 |
25.0 |
8.5 |
32.1 |
37.1 |
F05 |
32 |
295 |
32.0 |
10.5 |
77.9 |
90.1 |
F07 |
40 |
315 |
38.0 |
14.4 |
122.3 |
141.4 |
F07 |
50 |
330 |
50.0 |
21.0 |
124.1 |
143.7 |
F10 |
65 |
435 |
64.5 |
52.5 |
188.6 |
218.4 |
F10 |
80 |
458 |
80.0 |
65.7 |
279.8 |
323.7 |
F10 |
