Type 15C02 - Ball Valve full bore

Datasheet ID: CR_15C02_2

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases (only for ball valves with a vent hole

in the ball) and mixtures thereof, including natural gas and ammonia.

Working temperature: -60°C / -76°F (213K) up to +190°C / +374°F (463K)

Description

chevron-down

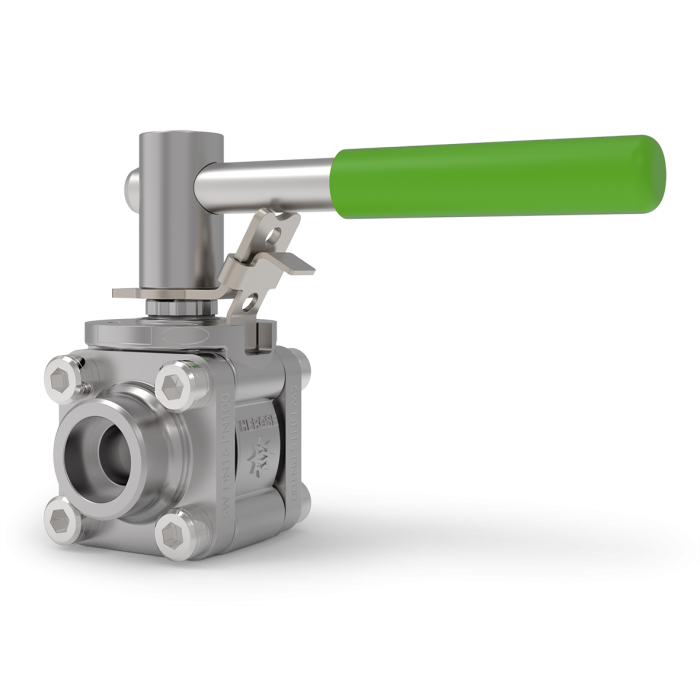

Cryogenic Ball Valve

Bidirectional ball valve

(Optional: unidirectional with vent hole for liquid medium)

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Female thread type NPT acc. to ANSI 1.20.1

Female thread type G (BSPP) acc. to ISO 228/1

Antistatic design acc. ISO 7121

Marking acc. to EN 1626

Top flange to EN ISO 5211

"cleaned and degreased for oxygen service"

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/9070/Z/00208/25/D/001(00)
0045/202/9070/Z/00208/25/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
Equipment for explosive atmospheres (ATEX) (2014/34/EU) chevron-down
35426289
35426289
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100557259/1
0343/TPED/MUM/PRJ11100557259/1
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100557259/1
0038/UK/TPER/MUM/PRJ11100557259/1

Data sheets

chevron-down
CR_15C02_2_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
More Information
Type (Series) 15C02
Solution LNG, Air Gases, Industry
Solution Area Transport, Storage, Refueling, Processes, Compressed Air
SKU CR_15C02_2

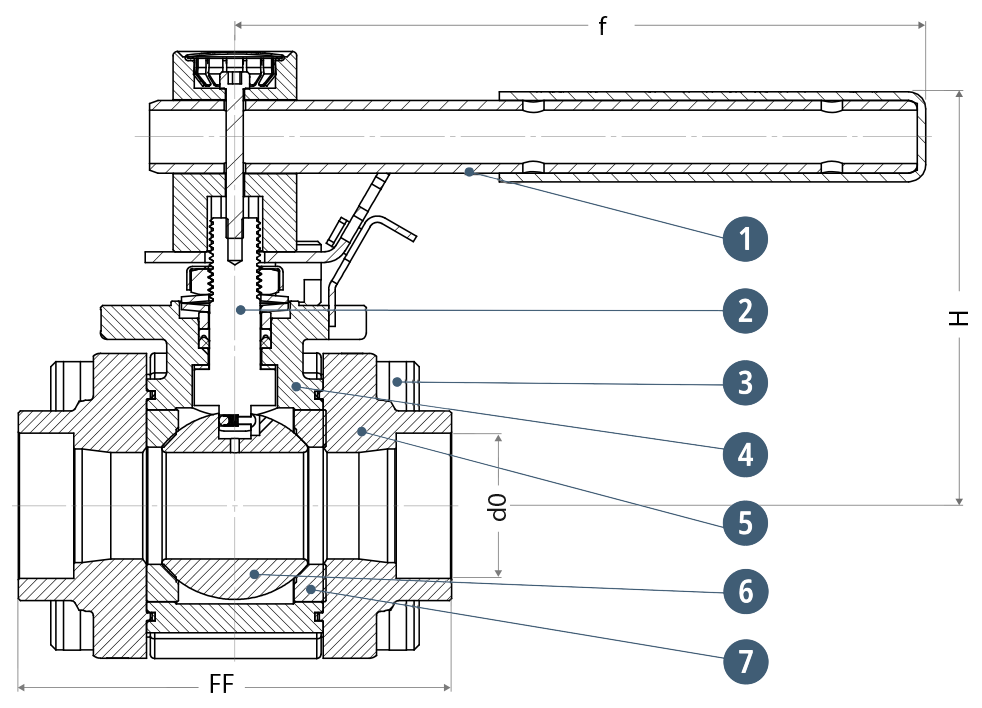

Materials

Materials

DIN EN

ASTM

1

Lever

1.4301

A 312 TP304

2

Stem

1.4401

A 479 316

3

Screws

A2-70

4

Body

1.4409

A 351 CF3M

5

Side connection

1.4409

A 351 CF3M

6

Ball

1.4404

A 479 316L

7

Ball seal

PTFE (Inoflon M295)

Versions

Technical data - Standard design

Nominal size

[DN]

Height (H)

[mm]

Orifice (D0)

[mm]

Weight

[kg]

Kvs-value

[m³/h]

Cv-value

[gal/min]

Length (f)

[mm]

ISO 5211

10

84

8.0

1.2

5.7

6.6

130

F05

15

84

14.5

1.2

10.7

12.4

130

F05

20

101

19.5

2.2

24.7

28.6

160

F05

25

106

25.0

2.7

32.1

37.1

160

F05

32

120

32.0

4.5

77.9

90.1

240

F07

40

124

38.0

5.4

122.3

141.4

240

F07

50

151

50.0

11.6

124.1

143.7

465

F10

65

197

64.5

21.8

188.6

218.4

462.5

F10

80

233

80.0

35.7

279.8

323.7

600

F10
