Type 03050

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures: -10°C / +14°F (263K) up to +225°C / +437°F (498K)

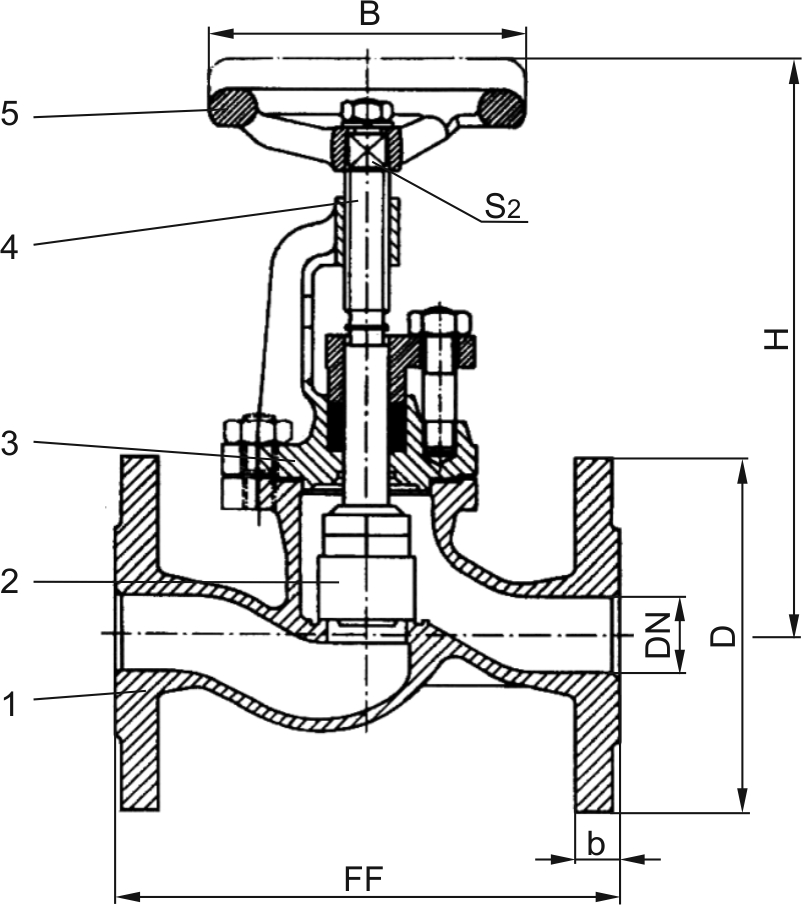

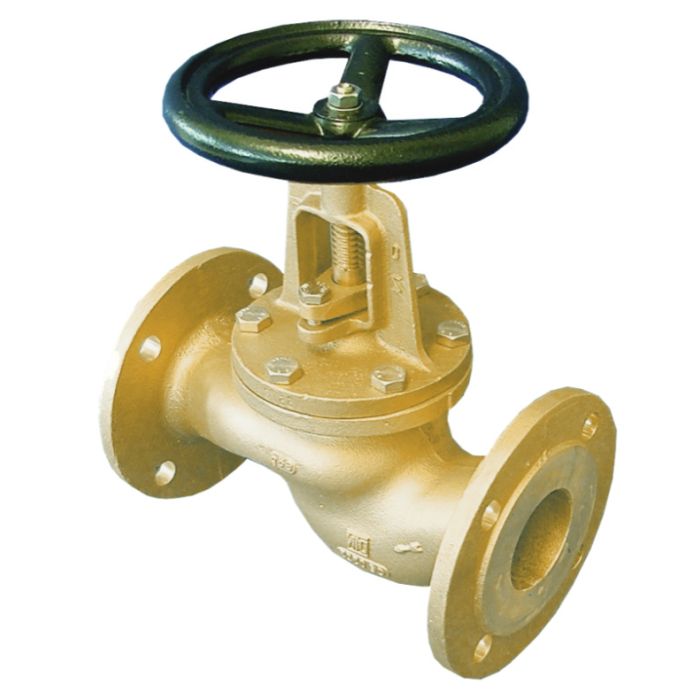

Globe Valves, PN16, DIN 86 260-A

Bronze body and topwork

metal to metal seated

Part No. 03050.X.0160

Flanged connection acc. to DIN EN 1092-3 PN16

face-to-face dimension acc. to DIN EN 558-1, Reihe 1

Available options - on request only:

· Disc with PTFE seal

· Valve with control disc (tapered design) and PTFE seal
