Type 03090

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures: -10°C / +14°F (263K) up to +400°C / +752°F (673K)

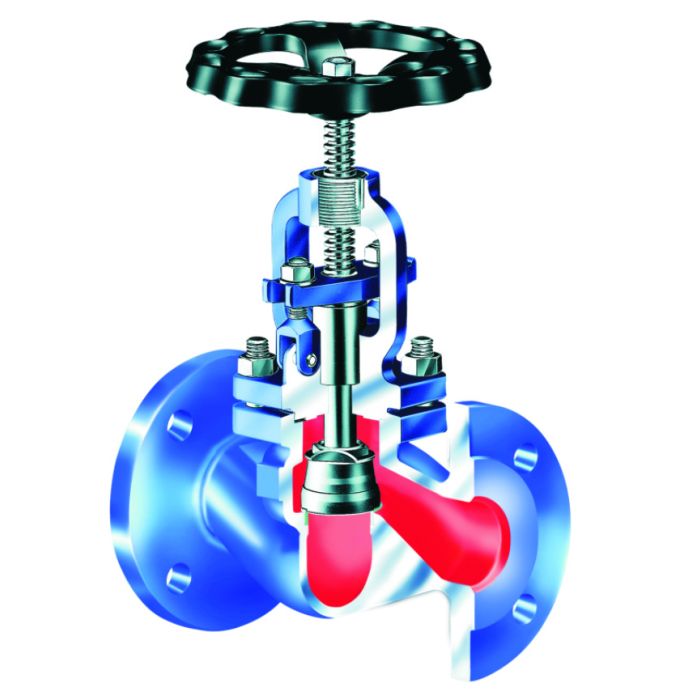

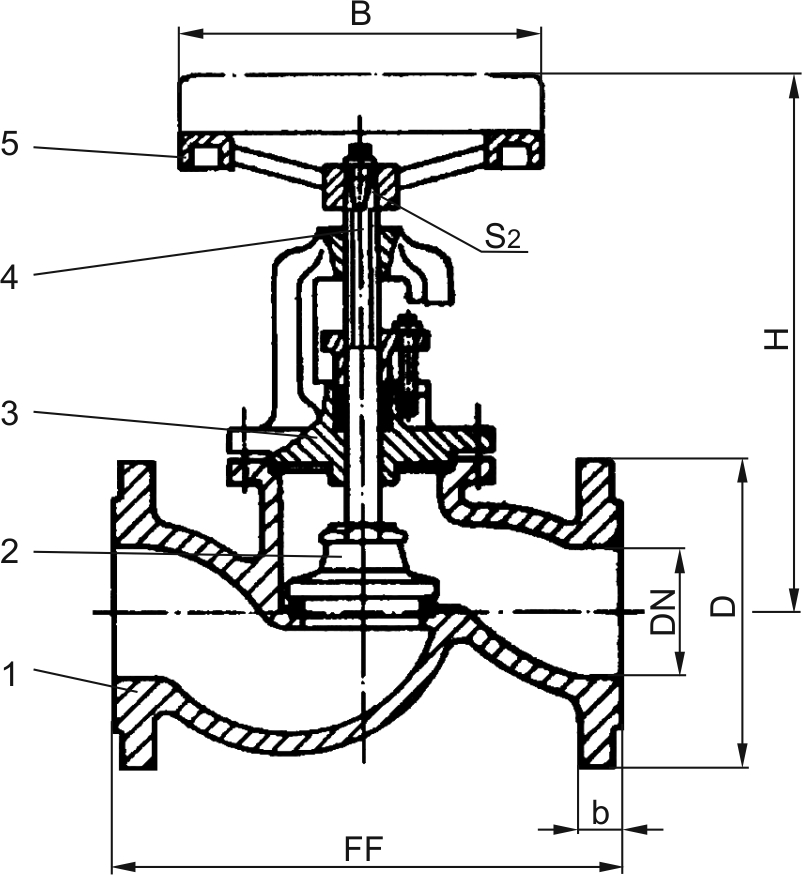

Globe Valves, PN40, DIN 3356-1

Body and topwork in cast steel

seat and disc in stainless steel, metal to metal seated

Part No. 03090.X.0000

Flanged connection acc. to DIN EN 1092-1 PN40

face-to-face dimension acc. to DIN EN 558-1, Reihe 1

Available options - on request only:

· Angled Valves

· Valve with control disc
