Type 05110

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures and pressures:

up to max. 16.0 bar: -10°C / +14°F (263K) up to +120°C / +248°F (393K)

up to max. 13.0 bar: -10°C / +14°F (263K) up to +225°C / +437°F (498K)

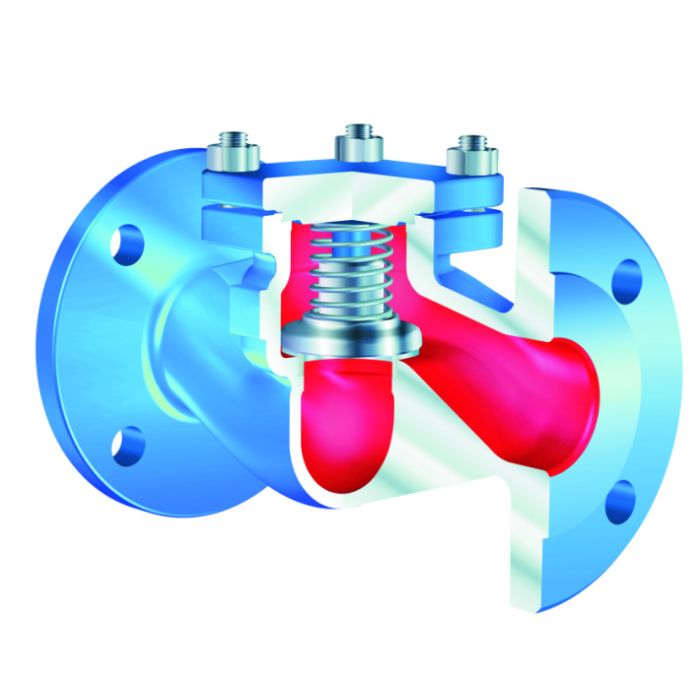

Check Valves, PN16

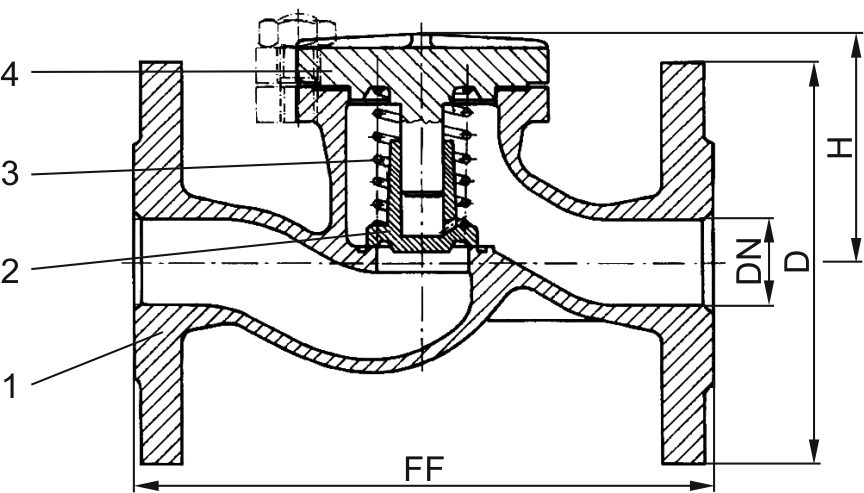

Body and cap in cast iron

seat and disc in stainless steel, metal to metal seated

Part No. 05110.X.0000

Flanged connection acc. to DIN EN 1092-1 PN16

face-to-face dimension acc. to DIN EN 558-1, Reihe 1
