Type 05338

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures and pressures:

up to max. 49.6 bar: -200°C / -328°F (73K)

up to max: 35.8 bar: +200°C / +392°F (473K)

up to max. 24.0 bar: +550°C / +1022°F (823K)

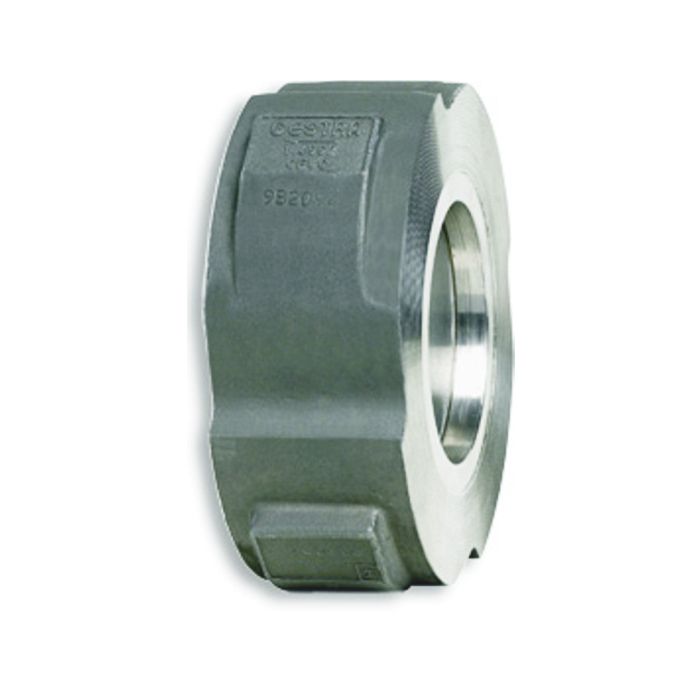

Check Valves, disc type, PN40 / class 300

Body in stainless steel

Part No. 05338.X.0000

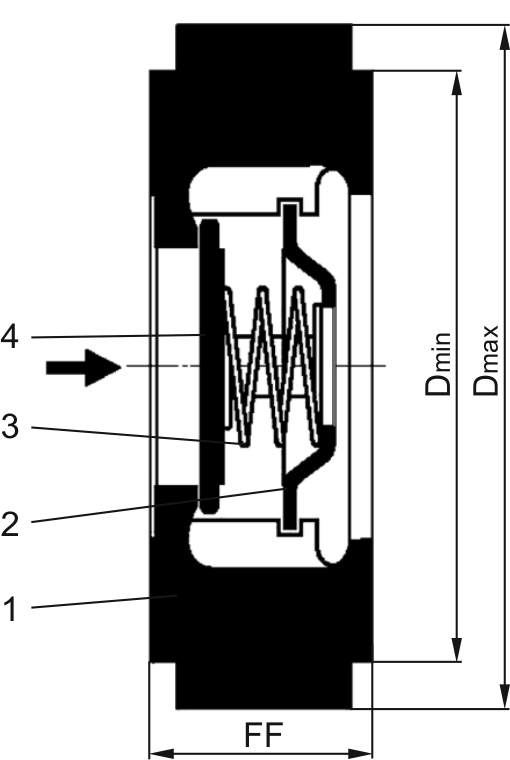

Metal to metal seated

with closing spring,

for mounting between two flanges acc. to

DIN PN10, PN16, PN25 or PN40

ASME class 125, class 150 or class 300
