Type 06127

Datasheet ID: IN_06127

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure

in pressure vessels.

Approved for gases, vapours and fluids.

Working temperatures: -270°C / -454°F (3K) up to +450°C / +842°F (723K)

Description

chevron-down

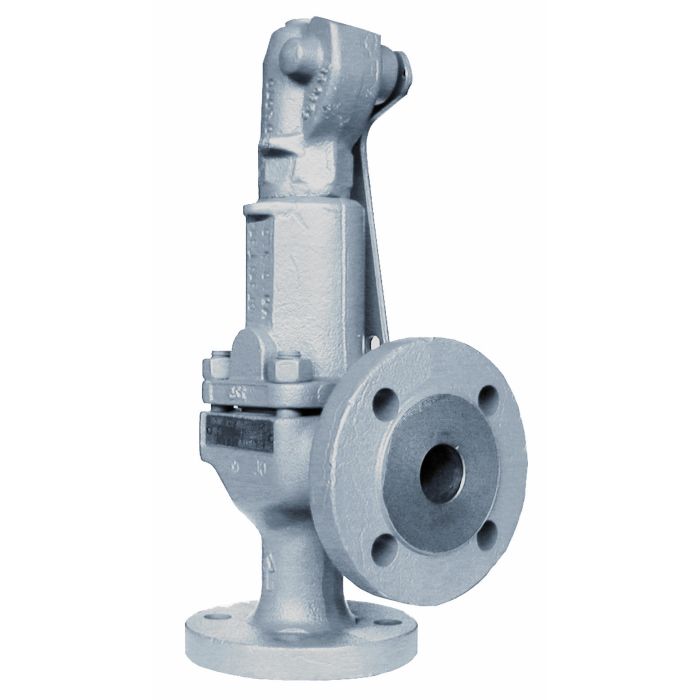

Safety Valves, angle type, stainless steel

type tested, TÃœV-SV.577. S/G/L

Standard safety valve

metal to metal seated, with lifting device,

closed bonnet

Flanged connection acc. to DIN EN 1092-1 PN40

Part No. 06127.X.0000

Available options - on request only:

· Disc with soft sealing

· Extended pressure and temperature ranges

Data sheets

chevron-down
IN_06127_en.pdf
More Information
Type (Series) 06127
Solution Air Gases
Solution Area Storage, Processes
SKU IN_06127
Materials

Materials

DIN EN

ASME/ASTM

1

Body

1.4408

A 351 CF 8M

2

Disc

1.4404

A 276 Grade 316L

3

Stem

1.4404

A 276 Grade 316L

4

Bonnet

1.4408

A 351 CF 8M

5

Spring

1.4310

A 313 Grade 301

6

Lifting device

1.4408

A 351 CF 8M

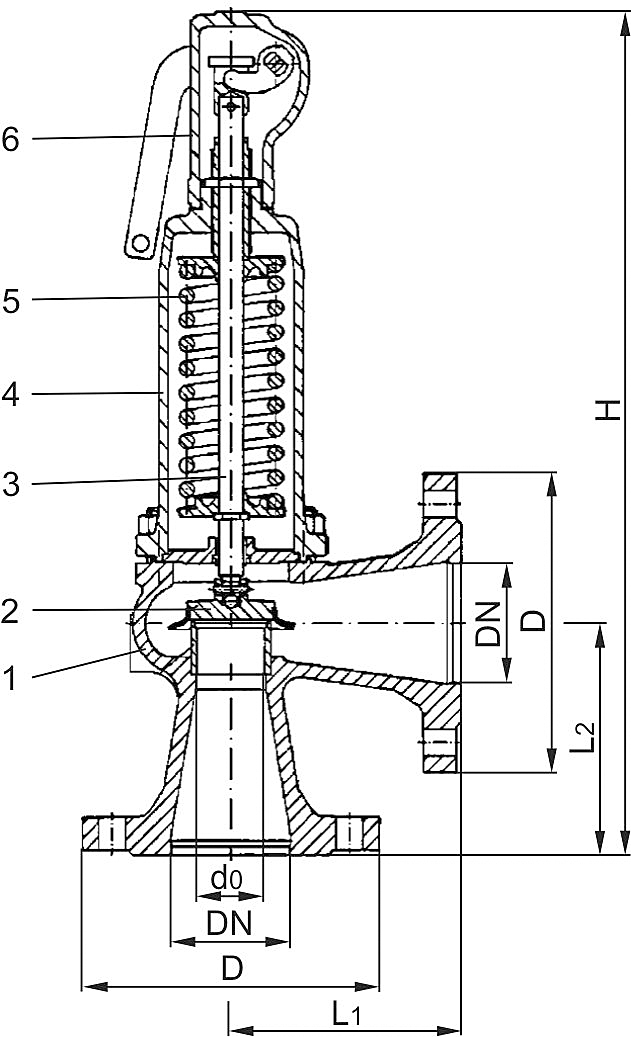

Versions

Type 06127

Technical data

Nominal size

DN

15

20

25

32

40

50

65

80

100

Orifice

d0

12

18

18

18

23

29

37

46

60

Dimension code

.X.

0150

0200

0250

0320

0400

0500

0650

0800

1000

Set pressure

bar

0.2-40

0.2-40

0.2-40

0.2-40

0.2-40

0.2-40

0.2-26

0.2-25

0.2-22

Flange diameter

D

95

105

115

140

150

165

185

200

235

Height

H

310

315

320

325

335

360

475

530

605

Length

L1

90

95

100

105

115

125

145

155

175

Length

L2

90

95

100

105

115

125

145

155

175

Weight

ca. kg

5.0

6.0

6.0

8.0

9.0

12.0

15.0

20.0

33.0

Coeff. of discharge gases, vapours

αw

0.29

0.29

0.38

0.38

0.38

0.38

0.38

0.38

0.38

Coeff. of discharge fluids

αw

0.19

0.19

0.25

0.25

0.25

0.25

0.25

0.25

0.25
?
