Type 06310

Applications:

Provided as safety device for protection against excessive pressure

in pressure vessels.

Approved for gases, vapours and fluids.

Working temperatures (metal to metal seated): -10°C / +14°F (263K) up to +450°C / +842°F (723K)

Working temperatures for discs with soft seals on request

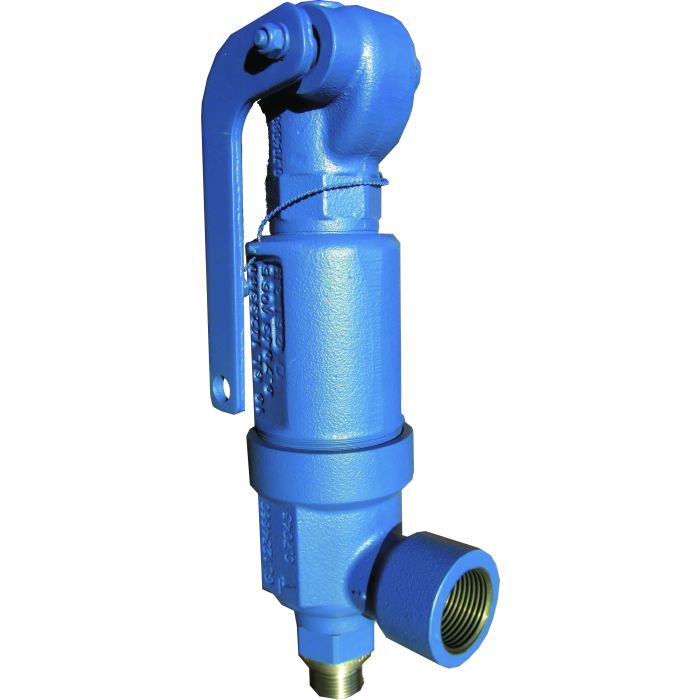

Safety Valves, angle type, steel casting,

type tested, TÜV-SV.909. S/G/L

Full lift safety valve

Standard safety valve for fluids

metal to metal seated,

closed bonnet, with lifting device

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06310.X.0000

Available options - on request only:

· Disc with soft sealing (NBR, CR, EPDM, FKM, FFKM, PCTFE, PTFE-FDA)
