HEROSE Type 06316

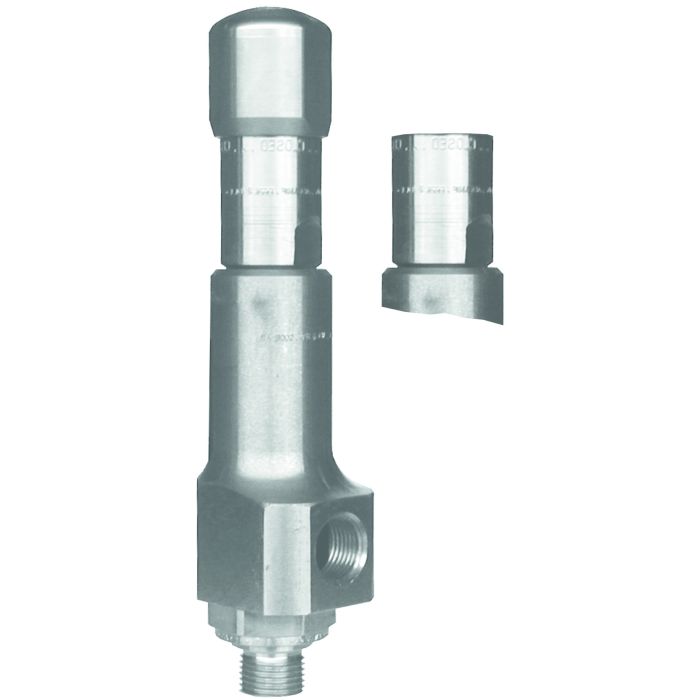

The product shown in the picture may differ from the product sold.

Type 06316

Datasheet ID: IN_06316

Field of application

Applications:

Provided as safety device for protection against excessive pressure

in pressure vessels. Approved for gases, vapours and fluids.

Working temperature (metal to metal seated, pay attention to AD-Merkblatt W10: Temperature-Pressure-

Overview): -270°C / -454°F (6K) up to +280°C / +536°F (553K)

Working temperatures for discs with soft seals on request

Safety Valves, angle type, stainless steel, type tested, TÜV-SV.980. S/G/L

Standard safety valve

metal to metal seated, closed bonnet

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06316.X.N000 (0.1 - 68.0 bar)

Part No. 06316.X.L000 (68.0 - 330.0 bar)

with lifting device - head A

Part No. 06316.X.N020 (0.1 - 68.0 bar)

Part No. 06316.X.L020 (68.0 - 330.0 bar)

with gastight cap - head C

Available options - on request only:

· Threads NPT acc. to ANSI B 1.20.1

· Disc with soft sealing (NBR, CR, EPDM, FKM, FFKM, PCTFE, PTFE-FDA)

IN_06316_en.pdf

More Information

Materials

Versions

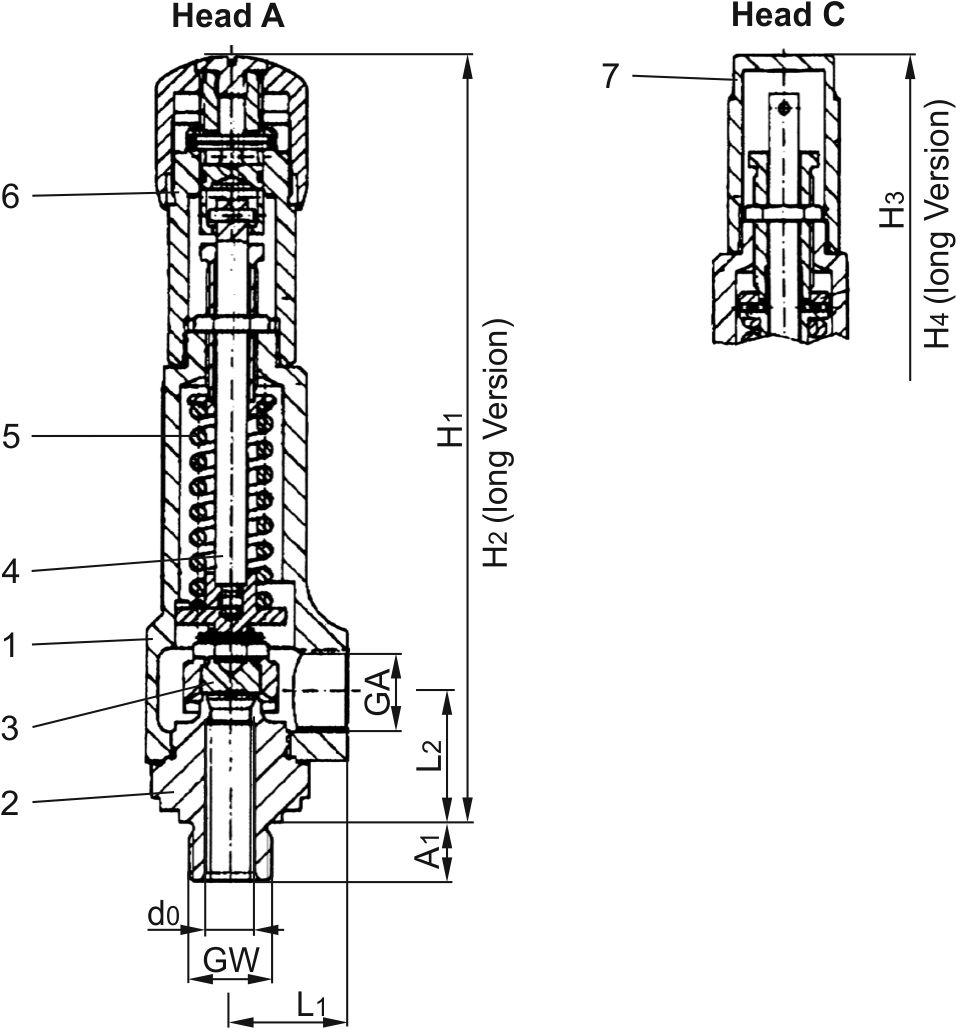

Technical data		Type 06316.X.N000/N020		Type 06316.X.L000/L020
Nominal size	GW	1/2	3/4	1/2	3/4	1/2	3/4
Orifice	d₀	10	10	6	6	10	10
Dimension code	.X.	1004	1006	0604	0606	1004	1006
Set pressure range	bar	0.1-68	0.1-68	180-330	180-330	68-180	68-180
Outlet	GA	1/2	1/2	1/2	1/2	1/2	1/2
Height	H₁	195	195	-	-	-	-
Height	H₂	-	-	201	201	216	216
Height	H₃	180	180	-	-	-	-
Height	H₄	-	-	191	191	191	191
Length	L₁	30	30	30	30	30	30
Length	L₂	33	33	33	33	33	33
Length	A₁	15	16	15	16	15	16
Weight	ca. kg	1.2	1.2	1.4	1.4	1.4	1.4
Coeff. of discharge gases, vapours	α_w	0.50	0.50	0.72	0.72	0.50	0.50
Coeff. of discharge fluids	α_w	0.35	0.35	-	-	0.35	0.35
