Type 06370

Datasheet ID: IN_06370

Field of application

chevron-down

Available options - on request only:

· stainless steel spring - material 1.4571

· external parts nickel plated

Applications:

Provided as safety device for protection against excessive pressure in gas cylinders and pressure vessels.

Approved for non-adhesive fluids, which are not vaporized during blow off.

Working temperature: -10°C / +14°F (263K) up to +110°C / +230°F (383K), suitable for horizontal installation

Description

chevron-down

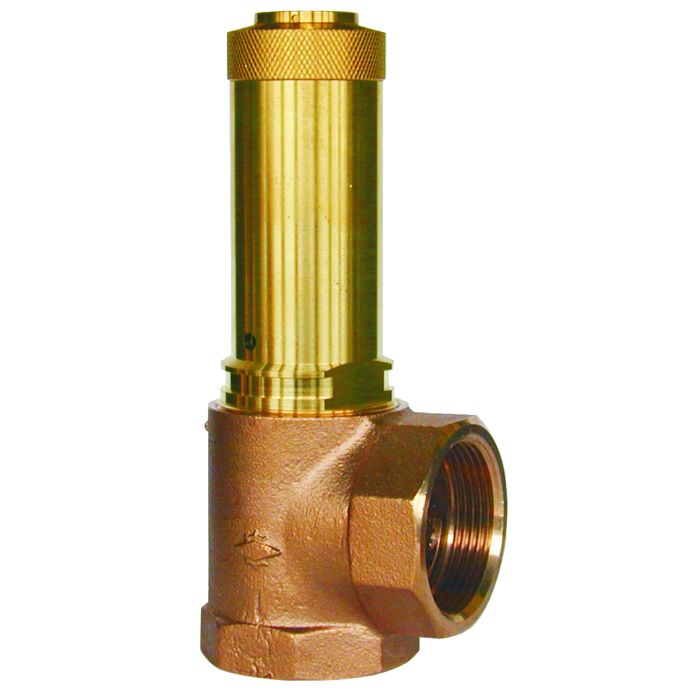

Safety Valves, angle type, bronze, type tested TÜV-SV.749. L

Standard safety valve

with soft valve seal for fluids, open bonnet,

with diaphragm for protection of the spring, with lifting device

In- and outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06370.X.0000 with NBR valve seal

Part No. 06370.X.0700 with FPM valve seal

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00625/21/D/001(01)
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
TÜV Verband (Approval mark number) chevron-down
25-749
25-749
Ukraine (Ukraine) chevron-down
UA.TR.107.127.08-26
UA.TR.107.135.03-26
UA.D.135.02-26

Data sheets

chevron-down
IN_06370_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-IN_06370-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
More Information
Type (Series) 06370
Solution Industry
Solution Area FKS
SKU IN_06370
Materials

Materials

DIN EN

ASME/ASTM

1

Body

CC491K

B 62 UNS C83600

2

Disc nut

CW614N

B 249 UNS C38500

3

Plate

CW507L

B 36 UNS C26800

4

Valve seal

NBR or FPM

5

Disc

CW614N

B 249 UNS C38500

6

Diaphragm

NBR

7

Stem

CW614N

B 249 UNS C38500

8

Bonnet

CW614N

B 249 UNS C38500

9

Spring

1.1200

A 227

10

Lifting device

CW614N

B 249 UNS C38500

11

Closing cap

CW507L

B 36 UNS C26800

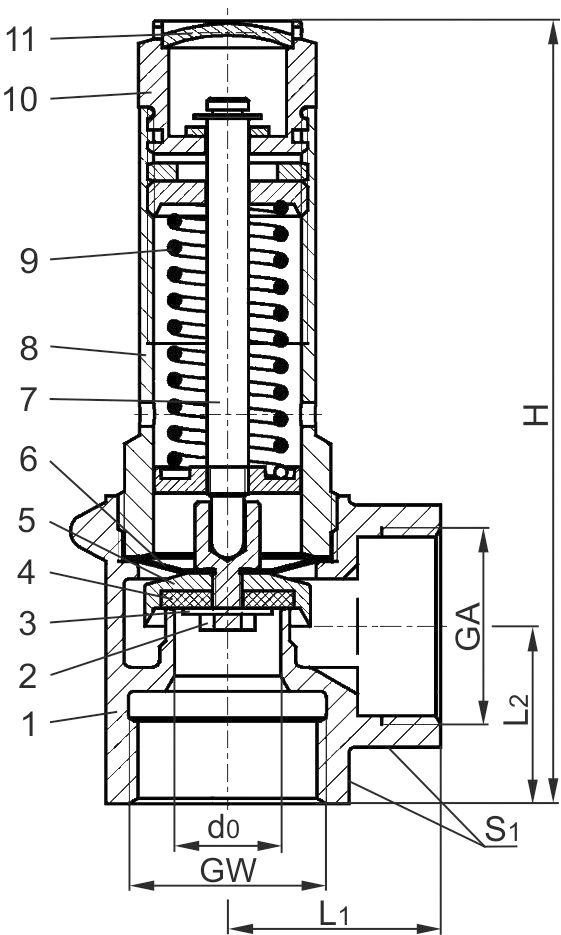

Versions

Type 06370

Technical data

Nominal size

GW

1/2

3/4

1

1-1/4

1-1/2

2

Orifice

d0

12

15

18

20

24

28

Dimension code

.X.

0400

0600

1000

1200

1400

2000

Set pressure range

bar

1.0-16

1.0-16

1.0-16

1.0-16

1.0-16

1.0-16

Outlet

GA

1/2

3/4

1

1-1/4

1-1/2

2

Height

H

92

111

132

152

175

200

Length

L1

25

30

36

40

48

56

Length

L2

20

25

30

35

40

48

Wrench size across flats

S1

27

32

41

50

58

70

Weight

ca. kg

0.24

0.40

0.70

1.07

1.65

2.65

Coeff. of discharge

αw

0.20

0.25

0.31

0.39

0.42

0.38
