HEROSE Type 06372

The product shown in the picture may differ from the product sold.

Type 06372

Datasheet ID: IN_06372

Field of application

Applications:

Provided as safety device for protection against excessive pressure in pressure vessels and steam boilers.

Working temperature: -10°C / +14°F (263K) up to +120°C / +230°F (393K), suitable for horizontal installation

Description

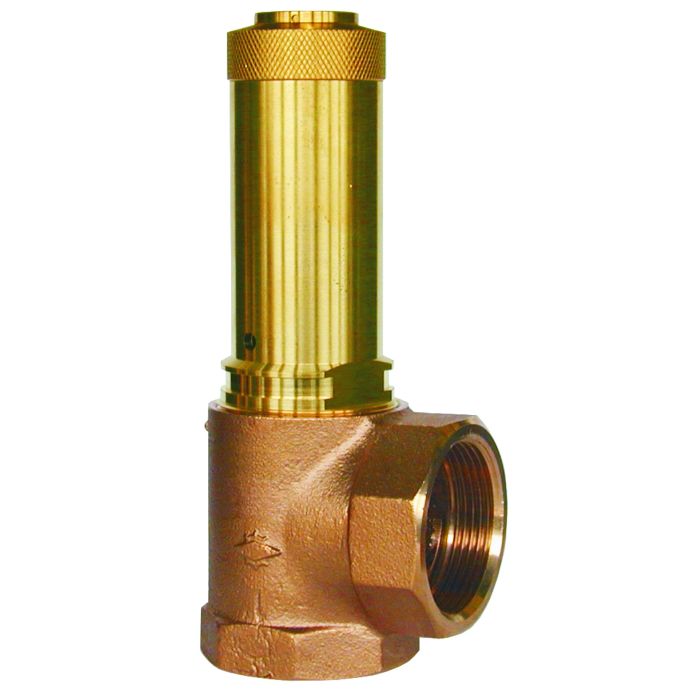

Safety Valves, angle type, bronze, type tested TÜV-SV.749. S/G

Standard safety valve

with soft valve seal for saturated steam, air and similar gases, open bonnet,

with diaphragm for protection of the spring, with lifting device

In- and outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06372.X.0040

with FPM valve seal (PTFE coated)

Certificates

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00625/21/D/001(01)

TÜV Verband (Approval mark number)

25-749

Data sheets

IN_06372_en.pdf

Operating Instructions

HEROSE-Manual-IN_06372-1

Declarations of Conformity

Pressure Equipment Safety Regulation 2016 (PESR 2016)

001 SV (EN)

Pressure Equipment Directive (2014/68/EU)

001SV (DE, EN, CN)

001SV (DE, EN, CZ)

001SV (DE, EN, ES)

001SV (DE, EN, FR)

001SV (DE, EN, IT)

001SV (DE, EN, NL)

001SV (DE, EN, PL)

001SV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	06372
Solution	Air Gases
Solution Area	Storage, Processes
SKU	IN_06372

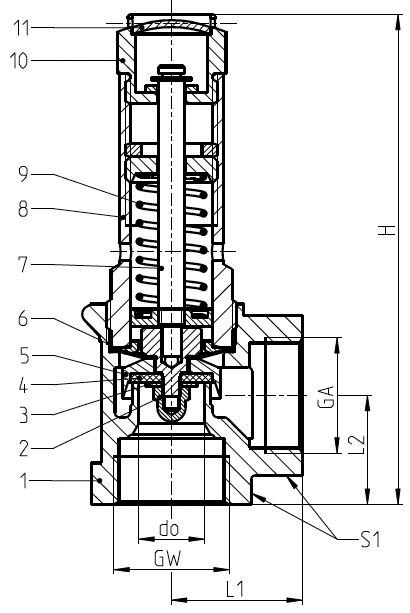

Materials

Materials		DIN EN	ASME/ASTM
1	Body	CC480K	C90700
2	Disc nut	CW614N	B 249 UNS C38500
3	Plate	CW507L	B 36 UNS C26800
4	Valve seal	FPM (PTFE coated)
5	Disc	CW614N	B 249 UNS C38500
6	Diaphragm	NBR
7	Stem	CW614N	B 249 UNS C38500
8	Bonnet	CW614N	B 249 UNS C38500
9	Spring	1.4571	A 313 Grade 316Ti
10	Lifting device	CW614N	B 249 UNS C38500
11	Closing cap	CW507L	B 36 UNS C26800

Versions

Type 06372	Technical data
Nominal size	GW	3/4	1
Orifice	d₀	15	18
Dimension code	.X.	0600	1000
Set pressure range	bar	0.5-1.0	0.4-1.0
Outlet	GA	3/4	1
Height	H	111	132
Length	L₁	30	36
Length	L₂	25	30
Wrench size across flats	S₁	32	41
Weight	ca. kg	0.40	0.70
Coeff. of discharge	α_w	0.25	0.40
