Type 06376

Datasheet ID: IN_06376

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure in gas cylinders and pressure vessels.

Approved for non-toxic, non-inflammable fluids - medium contact parts are seawater resistant.

Working temperature: -10°C / +14°F (263K) up to +110°C / +230°F (383K), suitable for horizontal installation

Description

chevron-down

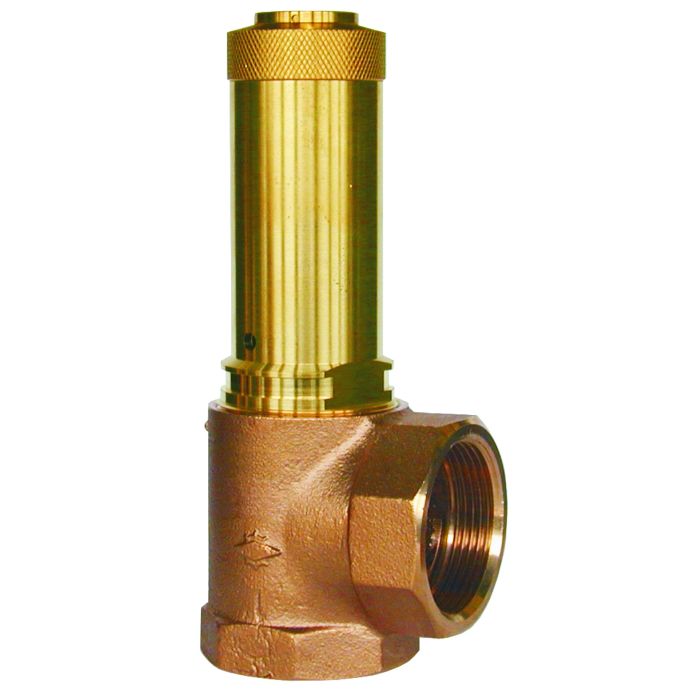

Safety Valves, angle type, bronze, type tested TÜV-SV.749. L

Standard safety valve

with soft valve seal for fluids, open bonnet,

with diaphragm for protection of the spring, with lifting device

In- and Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06376.0400.0000

with NBR valve seal (pressure range 1.0 - 16.0 bar)

Part No. 06376.0400.0700

with FPM valve seal (pressure range 1.0 - 16.0 bar)

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00625/21/D/001(01)
TÜV Verband (Approval mark number) chevron-down
25-749
25-749
Ukraine (Ukraine) chevron-down
UA.TR.107.127.08-26
UA.TR.107.135.03-26
UA.D.135.02-26

Data sheets

chevron-down
IN_06376_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-IN_06376-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
More Information
Type (Series) 06376
Solution Air Gases
Solution Area Storage, Processes
SKU IN_06376

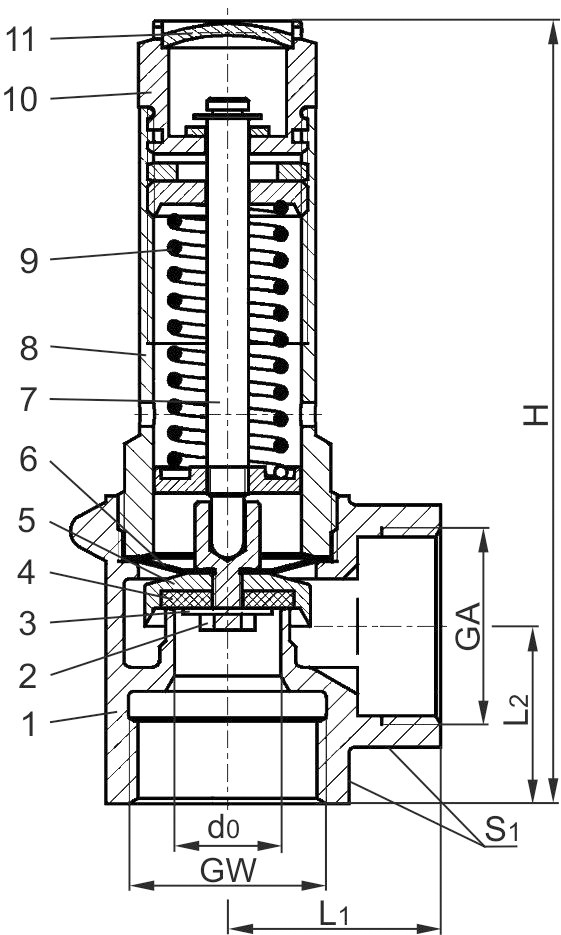

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CC480K

C90700

2

Disc nut

1.4571/A4

similar A 194

3

Plate

Copper

4

Valve seal

NBR

5

Disc

CW452K

B 159 UNS C51900

6

Diaphragm

NBR

7

Stem

CW614N

B 249 UNS C38500

8

Bonnet

CW614N

B 249 UNS C38500

9

Spring

1.4571

A 313 Grade 316Ti

10

Lifting device

CW614N

B 249 UNS C38500

11

Closing cap

CW507L

B 36 UNS C26800
Versions

Type 06376

Technical data

Nominal size

GW

1/2

Orifice

d0

12

Set pressure range

bar

1.0-16

Outlet

GA

1/2

Height

H

92

Length

L1

25

Length

L2

20

Wrench size across flats

S1

27

Weight

ca. kg

0.24

Coefficient of discharge

αw

0.20
Product Variants

Product Variants

Filter our product by specific attributes
Name Connection inlet Connection outlet Connection dimension inlet Connection dimension outlet Link to product
/
?
