Type 06380

Datasheet ID: IN_06380

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure in gas cylinders and pressure vessels.

Description

chevron-down

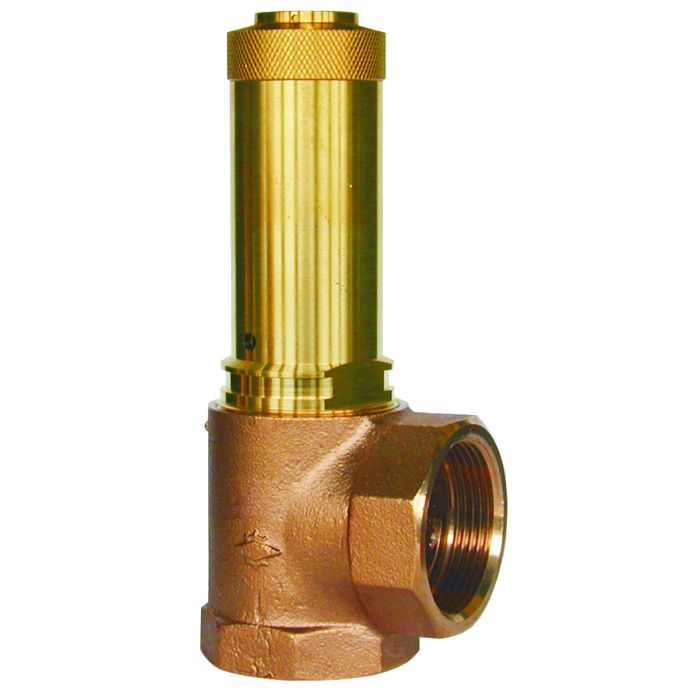

Safety Valves, angle type, bronze, type tested TÜV-SV.749. S/G

Standard safety valve

with soft valve seal, open bonnet, with lifting device

In- and outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06380.X.0000

with FPM valve seal for air and similar gases

Working temperature: -10°C / +14°F (263K) up to +185°C / +365°F (458K)

Part No. 06380.X.0300

with PTFE valve seal for air and similar gases

and saturated steam from 2.0 bar (1/2'' suitable for horizontal installation)

Working temperature: -10°C / +14°F (263K) up to +225°C / +437°F (498K)

Part No. 06380.X.0600

with EPDM valve seal for air and similar gases

and steam from 0.2 up to 8 bar. (saturated steam only up to 3.7 bar)

Working temperature: -10°C / +14°F (263K) up to +150°C / +302°F (423K)

Available options - on request only:

· stainless steel spring - material 1.4571, external parts nickel plated

· male inlet connection

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00626/21/D/001(00)
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
TÜV Verband (Approval mark number) chevron-down
25-749
25-749
Ukraine (Ukraine) chevron-down
UA.TR.107.127.08-26
UA.TR.107.135.03-26
UA.TR.107.135.03-26
UA.D.135.02-26

Data sheets

chevron-down
IN_06380_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-IN_06380-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
More Information
Type (Series) 06380
Solution Air Gases, Industry
Solution Area Storage, Processes, Compressed Air, Steam
SKU IN_06380
Materials

Materials

DIN EN

ASME/ASTM

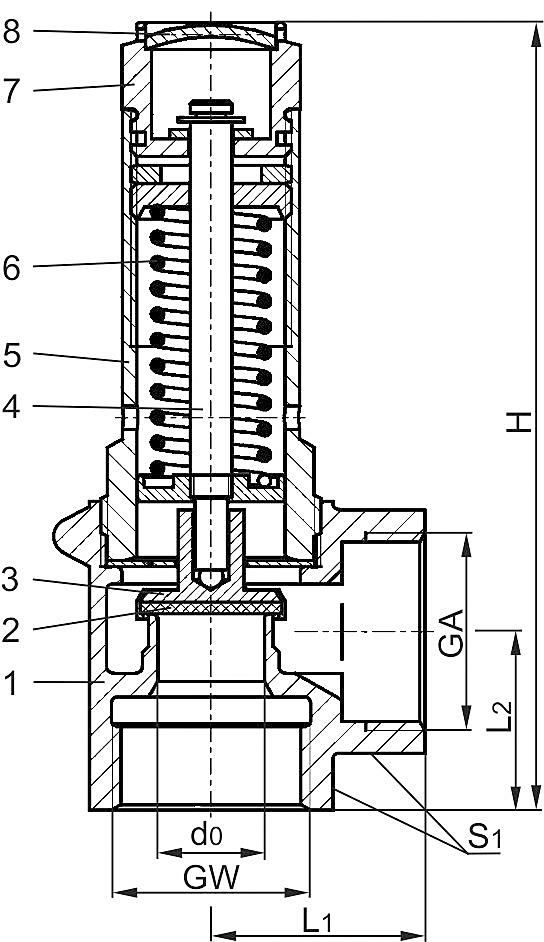

1

Body

CC491K

B 62 UNS C83600

2

Valve seal

FPM. PTFE or EPDM

3

Disc

CW614N

B 249 UNS C38500

4

Stem

CW614N

B 249 UNS C38500

5

Bonnet

CW614N

B 249 UNS C38500

6

Spring

1.1200

A 227

7

Lifting device

CW614N

B 249 UNS C38500

8

Closing cap

CW507L

B 36 UNS C26800
Versions

Type 06380

Technical data

Nominal size

GW

1/2

3/4

1

1-1/4

1-1/2

2

Orifice

d0

12

15

18

20

24

28

Dimension code

.X.

0400

0600

1000

1200

1400

2000

Set pressure range FPM seal

bar

0.2-20

0.2-20

0.2-20

0.2-20

0.2-16

0.2-16

Set pressure range PTFE seal

bar

0.2-20

0.5-20

0.2-20

0.4-20

0.2-16

1.0-16

Set pressure range EPDM seal

bar

0.2-8

0.2-8

0.2-9

0.2-9

0.2-8

0.2-8

Outlet

GA

1/2

3/4

1

1-1/4

1-1/2

2

Height

H

99

111

132

152

175

200

Length

L1

25

30

36

40

48

56

Length

L2

22

25

30

35

40

48

Wrench size across flats

S1

27

32

41

50

58

70

Weight

ca. kg

0.24

0.40

0.70

1.07

1.65

2.65

Coeff. of discharge from 3.0 bar

αw

0.47

0.37

0.52

0.57

0.52

0.50
