HEROSE Type 06602

The product shown in the picture may differ from the product sold.

Type 06602

Datasheet ID: IN_06602

Field of application

Applications:

Provided as safety device for protection against excessive pressure in pressure vessels

and steam boilers. Approved for non-toxic gases, vapours and for saturated steam.

Working temperature: -10°C / +14°F (263K) up to +180°C / +356°F (453K)

Description

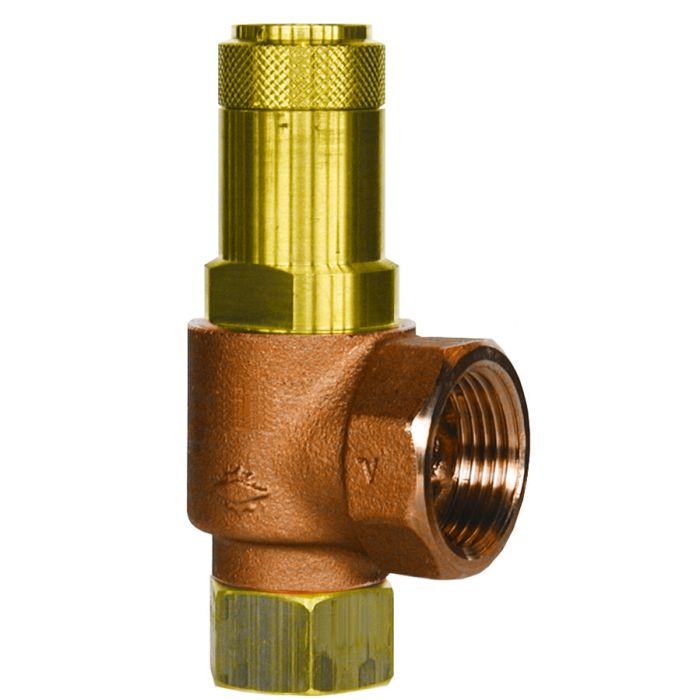

Safety Valves, angle type, bronze, type tested TÜV-SV.1080. S/G

Standard safety valve

with O-ring valve seal,

closed bonnet, with lifting device,

with enlarged outlet

In- and outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06602.1204.0000

Available options - on request only:

· external parts nickel plated

Certificates

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00530/22/D/001(00)

TÜV Verband (Approval mark number)

22-1080 DE

22-1080 EN

Pressure Equipment Safety Regulation 2016 (PESR 2016)

0879-PESR-B(P)-23290-1-DE

Data sheets

IN_06602_en.pdf

Operating Instructions

HEROSE-Manual-IN_06602-1

Declarations of Conformity

Pressure Equipment Safety Regulation 2016 (PESR 2016)

001 SV (EN)

Pressure Equipment Directive (2014/68/EU)

001SV (DE, EN, CN)

001SV (DE, EN, CZ)

001SV (DE, EN, ES)

001SV (DE, EN, FR)

001SV (DE, EN, IT)

001SV (DE, EN, NL)

001SV (DE, EN, PL)

001SV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	06602
Solution	Air Gases
Solution Area	Storage, Processes
SKU	IN_06602

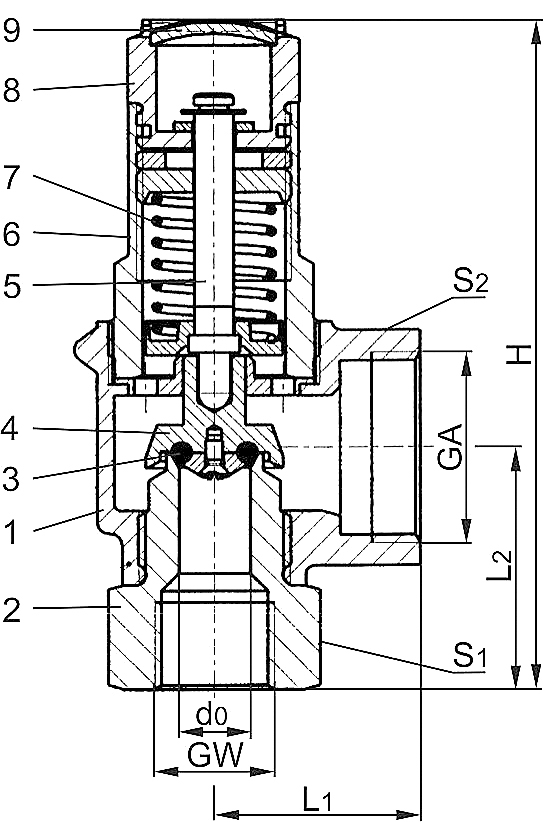

Materials

Materials		DIN EN	ASME/ASTM
1	Body	CC491K	B 62 UNS C83600
2	Inlet body	CW614N	B 111 UNS C28000
3	O-ring	EPDM
4	Disc	CW614N	B 249 UNS C38500
5	Stem	CW614N	B 249 UNS C38500
6	Bonnet	CW614N	B 249 UNS C38500
7	Spring	1.4571	A 313 Grade 316Ti
8	Lifting device	CW614N	B 249 UNS C38500
9	Closing cap	CW507L	B 36 UNS C26800

Versions

Type 06602	Technical data
Nominal size	GW	1/2
Orifice	d₀	12.5
Set pressure range	bar	1.2-1.3
Outlet	GA	1
Height	H	117
Length	L₁	36
Length	L₂	42
Wrench size across flats	S₁	32
Wrench size across flats	S₂	41
Weight	ca. kg	0.65
Coefficient of discharge	α_w	0.74

Product Variants

Filter our product by specific attributes

Connection inlet

Connection outlet

Connection dimension inlet

Connection dimension outlet

Products per Page:

Name	Connection inlet	Connection outlet	Connection dimension inlet	Connection dimension outlet	Link to product
