Type 06C02

Datasheet ID: IN_06C02

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure in stationary and moveable

gas cylinders and pressure vessels. Approved for air and similar gases. Working temperature with

FPM sealing: -20°C / -4°F (253K) up to +160°C / +320°F (433K), horizontal installation from 2.5 bar.

All sealings are FDA conform.

Description

chevron-down

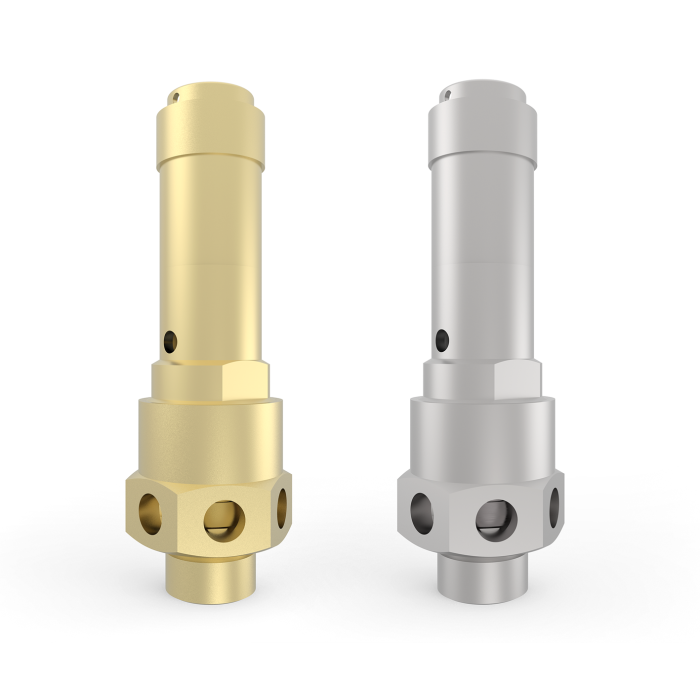

Safety Valves, brass or stainless steel,

type tested TÃœV-SV.1090 S/G

Standard safety valve

with FPM valve seal, open bonnet,

free discharge with lifting device

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06C02.X.EFGH - definition see end of the data sheet

Available options - on request only:

· Inlet NPT, M or R male thread

· EPDM cone sealing (-40°C / -40°F up to +150°C / 320°F)

· PTFE cone sealing (-60°C / -76°F up to +160°C / 320°F) from 2.5 bar

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00517/23/D/001(03)
0045/202/1201/Z/00517/23/D/001(03)
0045/202/1201/Z/00517/23/D/001(03)
TÜV Verband (Approval mark number) chevron-down
25-1090 EN
25-1090 DE
25-1090 EN
25-1090 DE
25-1090 EN
25-1090 DE
Ukraine (Ukraine) chevron-down
UA.TR.107.127.08-26
UA.TR.107.135.03-26
UA.D.135.02-26
UA.TR.107.127.08-26
UA.TR.107.135.03-26
UA.D.135.02-26

Data sheets

chevron-down
IN_06C02_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-IN_06C02-1

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CN)
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, CZ)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, ES)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, FR)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, IT)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, NL)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, PL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
001SV (DE, EN, RU)
001SV (DE, EN, RU)
More Information
Type (Series) 06C02
Solution Air Gases, Industry
Solution Area Storage, Processes, Compressed Air, Steam
SKU IN_06C02

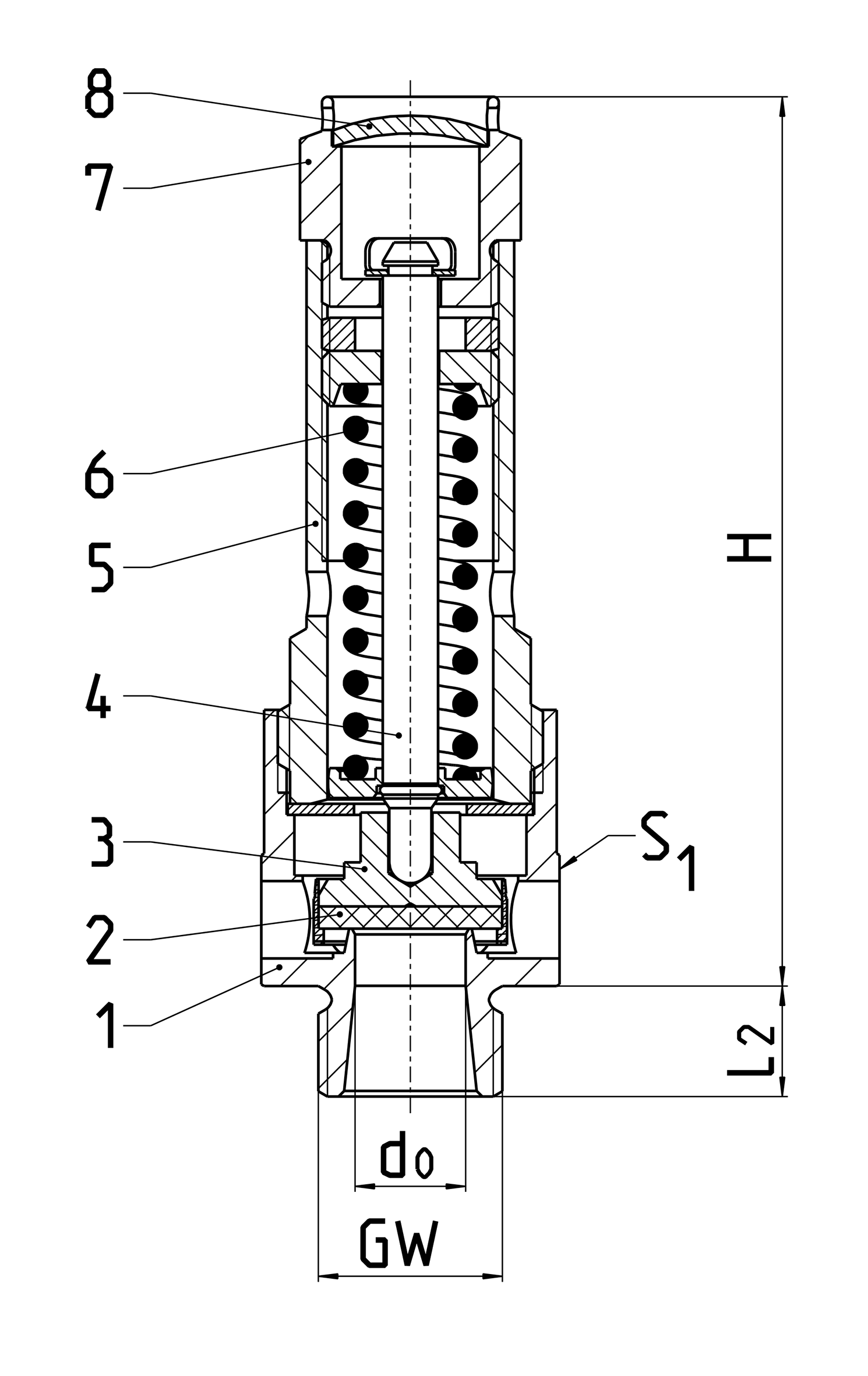

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW614N

B 249 UNS C38500

2

Valve seal

FPM (Viton)

3

Disc

CW614N

B 249 UNS C38500

4

Stem

1.4301

SS304

5

Bonnet

CW614N

B 249 UNS C38500

6

Spring

1.4571

7

Lifting device

CW614N

B 249 UNS C38500

8

Closing cap

CW507L

B 36 UNS C26800
Versions

Type 06C02

Technical data

Nominal size

GW

1/4

3/8

1/2

3/4

3/4

1

Orifice

d0

8

10

10

10

15

18

Dimension code

.X.

0800

1002

1004

1006

1506

1810

Set pressure range

bar

0.2-50

0.2-50

0.2-50

0.2-50

0.2-16

0.2-20

Height

H

79

80

80

80

92

110

Length

L2

10

10

12

15

15

18

Wrench size across flats

S1

21

21

24

30

32

41

Weight

ca. kg

0.14

0.15

0.17

0.23

0.31

0.53

Coeff. of discharge from 3.0 bar*

αw

0.74

0.61

0.61

0.61

0.6

0.6
