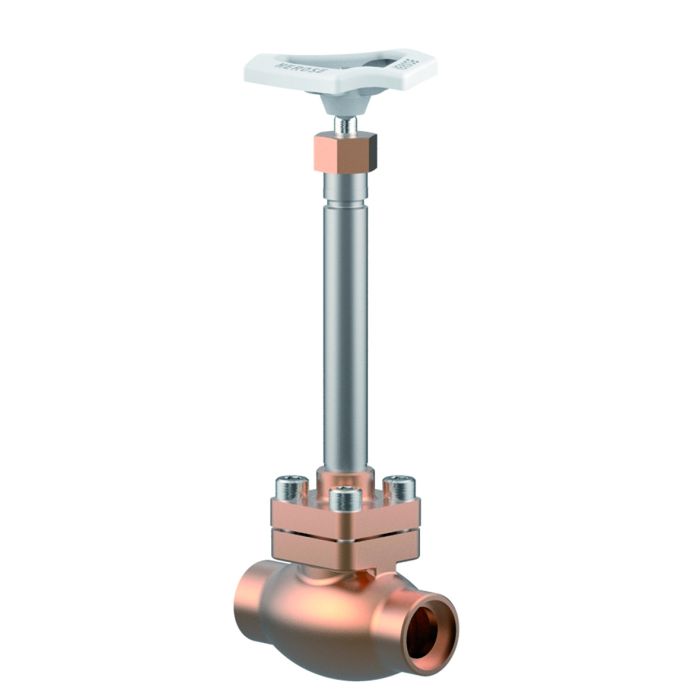

Type 01311 - Globe Valve

Datasheet ID: CR_01311_1
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Globe and Globe/Check Valves, PN50

Bronze body and topwork

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 01311.X.0010 (H=270mm)

Part No. 01311.X.0020 (H=370mm)

Part No. 01311.X.5010 (H=270mm) Globe/Check Valve

Part No. 01311.X.5020 (H=370mm) Globe/Check Valve

Socket end for copper pipes acc. to DIN EN 12449 or ASTM B88

Available options - on request only:

· Socket end for stainless steel stubs acc. to ISO 1127

· Extension H up to 900mm

· Valve with control disc (tapered design)

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
License of Special Equipment (China) (TS) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 01311
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01311_1

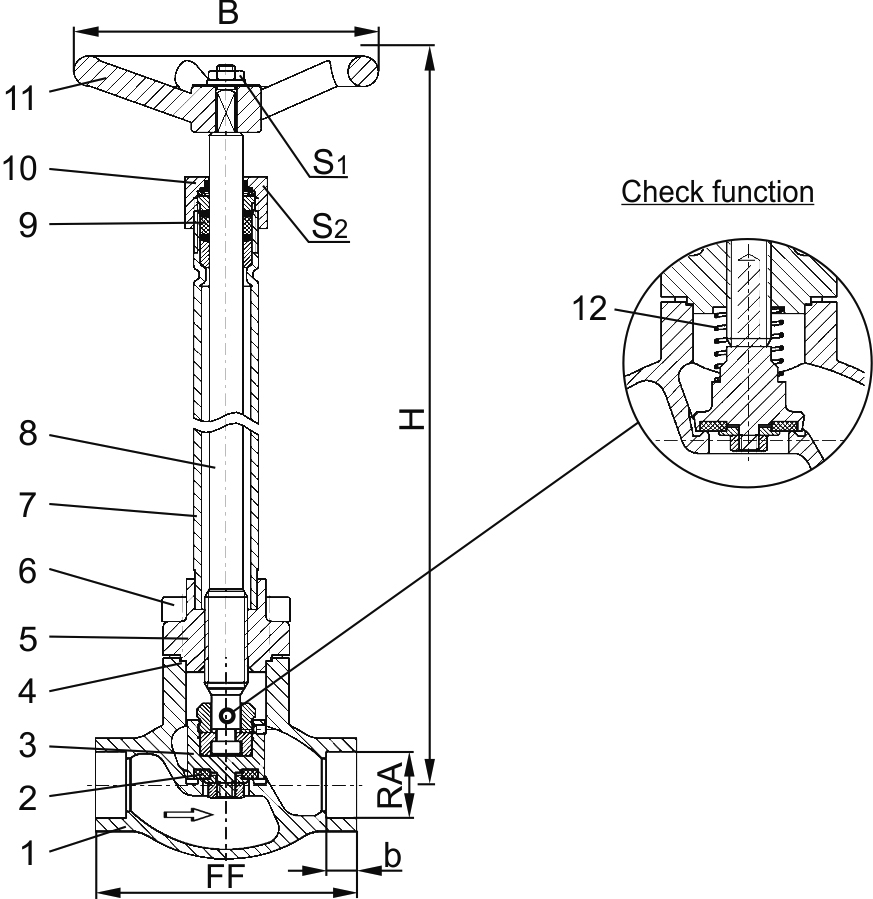

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW614N

B 283 UNS C38500

4

Bonnet gasket

PTFE

5

Headpiece

CC493K

B 505 UNS C93200

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

CW614N

B 283 UNS C38500

11

Handwheel

Aluminium alloy

12

Spring

CW452K

B 159 UNS C51900
Versions

Type 01311 - Standard design

Technical data

Nominal size

DN

10

15

20

25

32

40

50

Dimension code

.X.

X=DNRA. Example: valve DN15 for copper stub RAØ18mm. X=1518

Face-to-face dimension

FF

60

85

85

115

115

140

160

Height

H

270mm or 370mm

Outside pipe-Ø

RA

dependent on order

Socket depth

b

6

6

8

8

10

13

20

Handwheel-Ø

B

100

100

100

100

125

125

125

Wrench size across flats

S1

7

7

7

7

10

10

10

Wrench size across flats

S2

30

30

30

30

36

36

36

Weight

ca. kg

1.4

1.7

2.1

2.4

3.3

4.7

7.2

Kvs-Value

m³/h

1.6

4.3

6.7

11.5

12.1

22.6

37.1

Cv-Value

gal/min

1.9

5.0

7.8

13.4

14.1

26.3

43.2
