Type 01335 - Globe Valve

Datasheet ID: CR_01335
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Recommended working temperature: -60°C / -76°F (213K) up to +120°C / +248°F (393K)

Description chevron-down

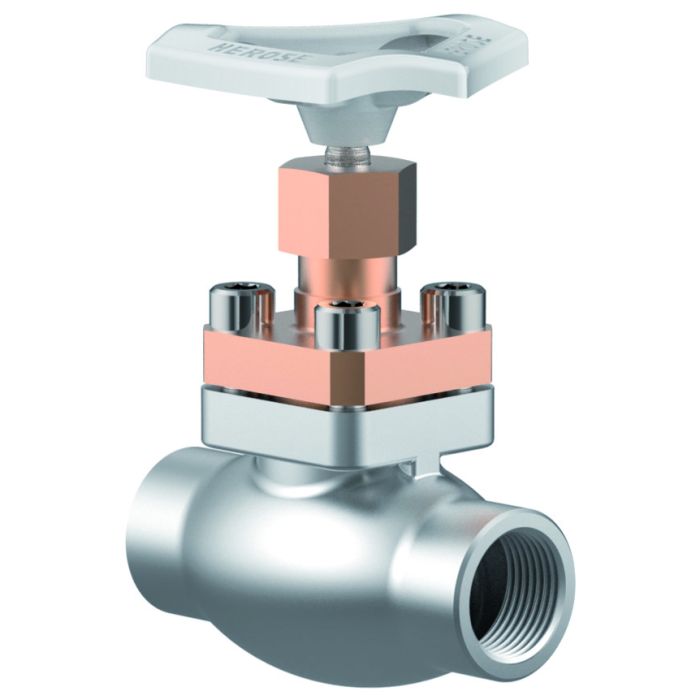

Cryogenic-Globe and Globe/Check Valves, PN50

Stainless steel body and bronze topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 01335.X.0001

Part No. 01335.X.5001 Globe/Check Valve

Female thread connection (G) acc. to ISO 228/1

Part No. 01335.X.0006

Part No. 01335.X.5006 Globe/Check Valve

Female thread connection NPT acc. to ANSI B 1.20.1

Available options - on request only:

· Female thread connection (R) acc. to ISO 7-Rc

· Valve with control disc (tapered design)

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
License of Special Equipment (China) (TS) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 01335
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01335

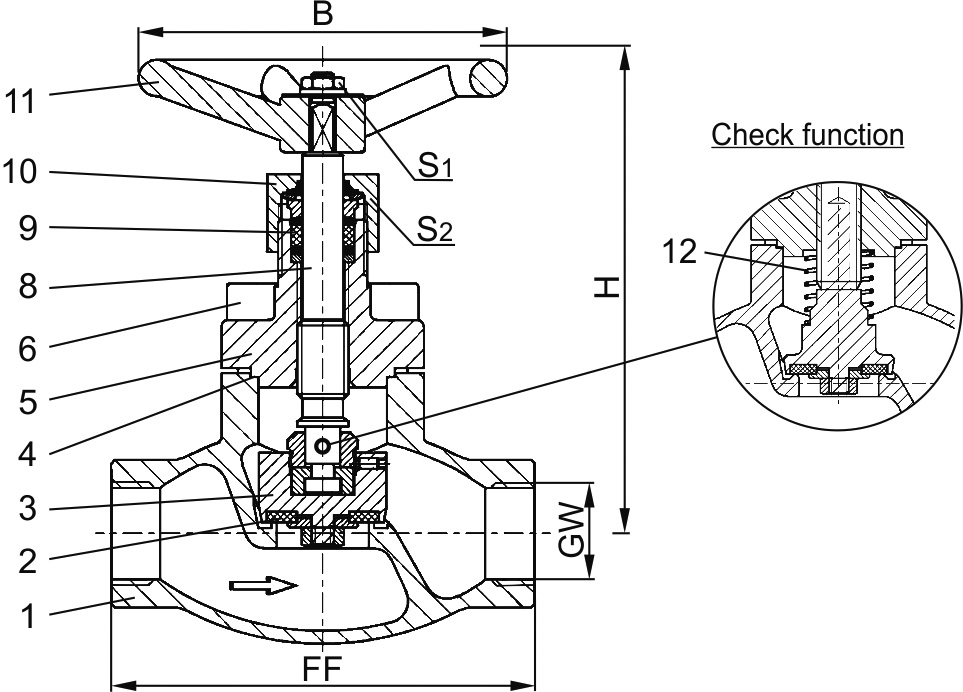

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW614N

B 283 UNS C38500

4

Bonnet gasket

PTFE

5

Headpiece

CC493K

B 505 UNS C93200

6

Bolts

1.4301/A2

A 194 B8

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE

10

Gland nut

CW614N

B 283 UNS C38500

11

Handwheel

Aluminium alloy

12

Spring

CW452K

B 159 UNS C51900
Versions

Type 01335 - Standard design

Technical data

Nominal size

DN

10

10

15

20

25

40

40

50

Thread size

GW

1/4

3/8

1/2

3/4

1

1-1/4

1-1/2

2

Dimension code

.X.

0200

0300

0400

0600

1000

1200

1400

2000

Face-to-face dimension

FF

70

70

85

100

115

130

130

155

Height

H

140

140

140

140

140

175

175

200

Handwheel-Ø

B

100

100

100

100

100

125

125

125

Wrench size across flats

S1

7

7

7

7

7

10

10

10

Wrench size across flats

S2

30

30

30

30

30

36

36

36

Weight

ca. kg

1.0

1.0

1.3

1.7

2.0

4.2

4.2

6.7

Kvs-Value

m³/h

1.6

2.2

4.3

6.7

11.5

20.6

22.6

37.1

Cv-Value

gal/min

1.9

2.6

5.0

7.8

13.4

23.9

26.3

43.2
