Type 01342 - Globe Valve Angle Type

Datasheet ID: CR_01342
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

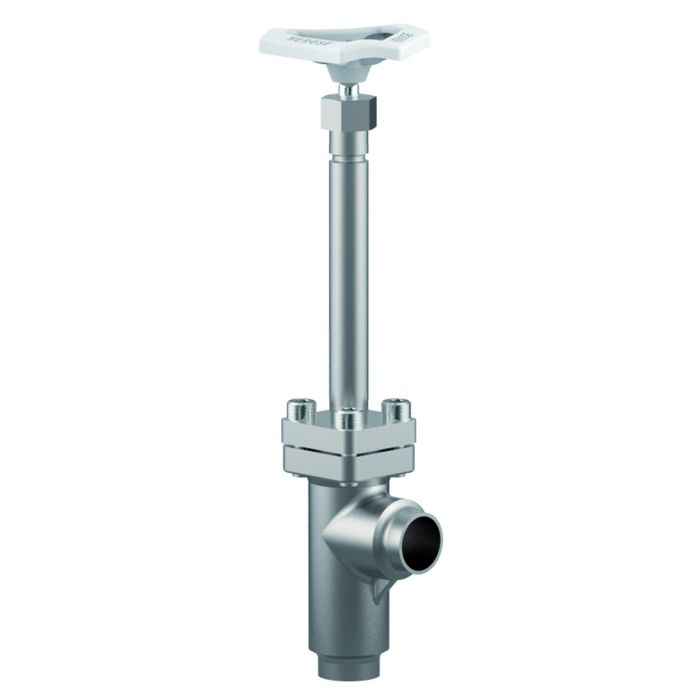

Cryogenic-Globe and Globe/Check Valves, PN50

Stainless steel body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 01342.X.001* (H = 270mm)

Part No. 01342.X.002* (H = 370mm)

* Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01342.X.0014 (H = 270 mm)

Part No. 01342.X.0024 (H = 370 mm)

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Extension H up to 900mm

· Valve with control disc (tapered design)

· Valve with check disc

· Further pipe wall thicknesses

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
ClassNK (Class Rules) chevron-down
License of Special Equipment (China) (TS) chevron-down
DNV (Class Rules) chevron-down
BV (Class Rules) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
RINA (Class Rules) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
ABS (Class Rules) chevron-down
25-0381115-PDA
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 01342
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01342
Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

1.4301

A 276 Grade 304

4

Bonnet gasket

PTFE

5

Headpiece

1.4301 /

1.4308

A 276 Grade 304 /

A 351 CF8

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4305

A 276 Grade 303

11

Handwheel

Aluminium alloy

13

Bush

CW452K

B 159 UNS C51900

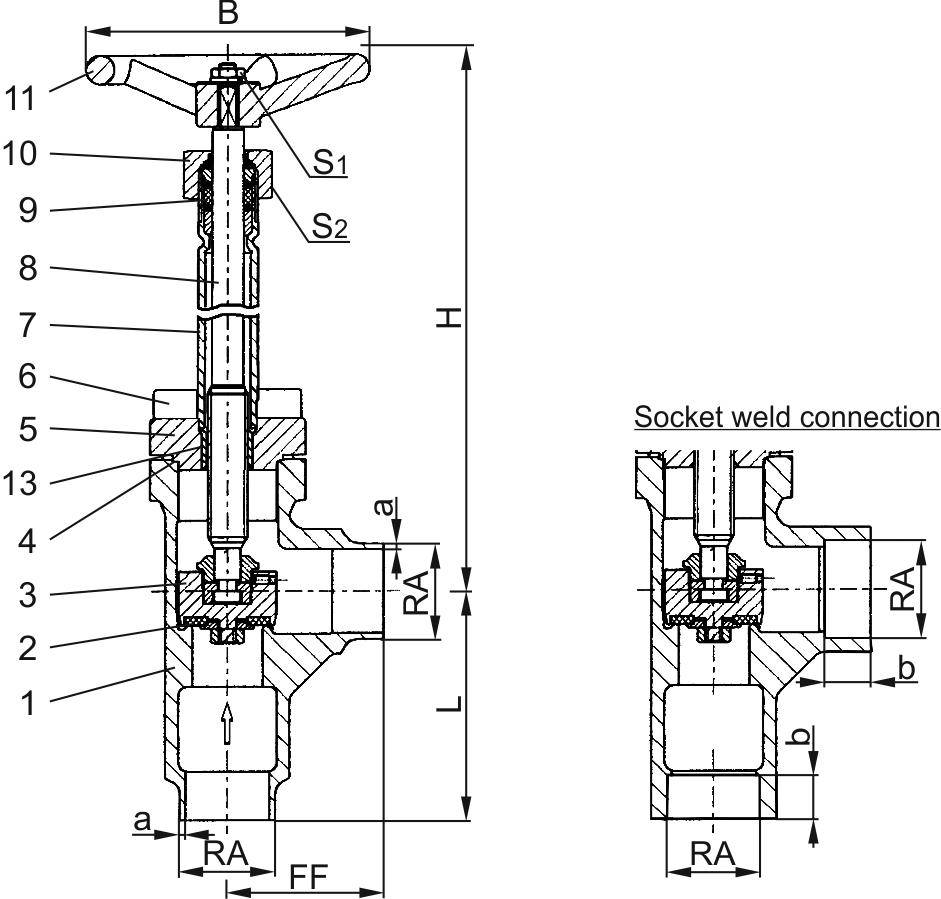

Versions

Type 01342 - Standard design

Technical data

Nominal size

DN

15

20

25

32

40

50

Dimension code

.X.

1521

2026

2533

3242

4048

5060

Face-to-face dimension

FF

40

50

55

60

58

85

Height

H

270 mm or 370 mm

Outside pipe-Ø ISO 1127

RA

21.3

26.9

33.7

42.0

48.3

60.3

Wall thickness pipe ISO 1127

a

2.0

2.0

2.0

2.0

2.0

2.0

Outside pipe-Ø ASTM A312

RA

21.34

26.67

33.4

-

48.26

60.33

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

10

13

13

13

13

16

Handwheel-Ø

B

100

100

100

125

125

125

Length

L

50

65

80

80

90

90

Wrench size across flats

S1

7

7

7

10

10

10

Wrench size across flats

S2

30

30

30

36

36

36

Weight

ca. kg

1.4

1.6

2.2

4.0

4.3

6.5

Kvs-Value

m³/h

6.0

10.5

17.2

32.0

35.0

57.0

Cv-Value

gal/min

7.0

12.2

20.0

37.2

40.7

66.3
