Type 01351 - Globe Valve

Datasheet ID: CR_01351
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Recommended working temperature: -60°C / -76°F (213K) up to +120°C / +248°F (393K)

Description chevron-down

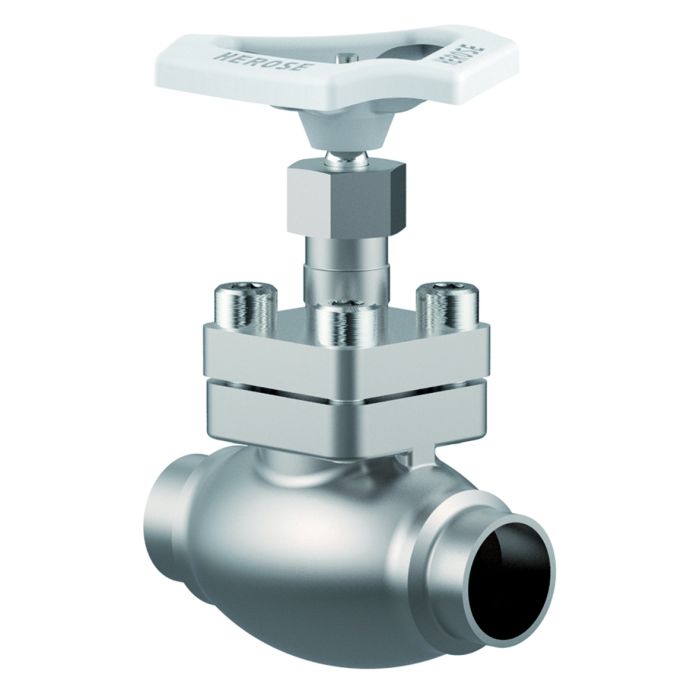

Cryogenic-Globe and Globe/Check Valves, PN50 (DN150=PN40)

Stainless steel body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 01351.X.000*

Part No. 01351.X.500* Globe/Check Valve

*Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01351.X.0004

Part No. 01351.X.5004 Globe/Check Valve

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm

· Valve with control disc (tapered design)

· Further pipe wall thicknesses

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
ClassNK (Class Rules) chevron-down
License of Special Equipment (China) (TS) chevron-down
DNV (Class Rules) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
BV (Class Rules) chevron-down
RINA (Class Rules) chevron-down
ABS (Class Rules) chevron-down
25-0381115-PDA
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 01351
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01351
Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal up to DN50

PTFE / Carbon filled (25%)

2a

Valve seal from DN65

PTFE

3

Disc

1.4301

A 276 Grade 304

4

Bonnet gasket

PTFE

5

Headpiece

1.4301 /

1.4308

A 276 Grade 304 /

A 351 CF8

6

Bolts

1.4301/A2

A 194 B8

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4305

A 276 Grade 303

11

Handwheel

Aluminium alloy

12

Spring

1.4310

A 313 Grade 301

13

Bush

CW452K

B 159 UNS C51900

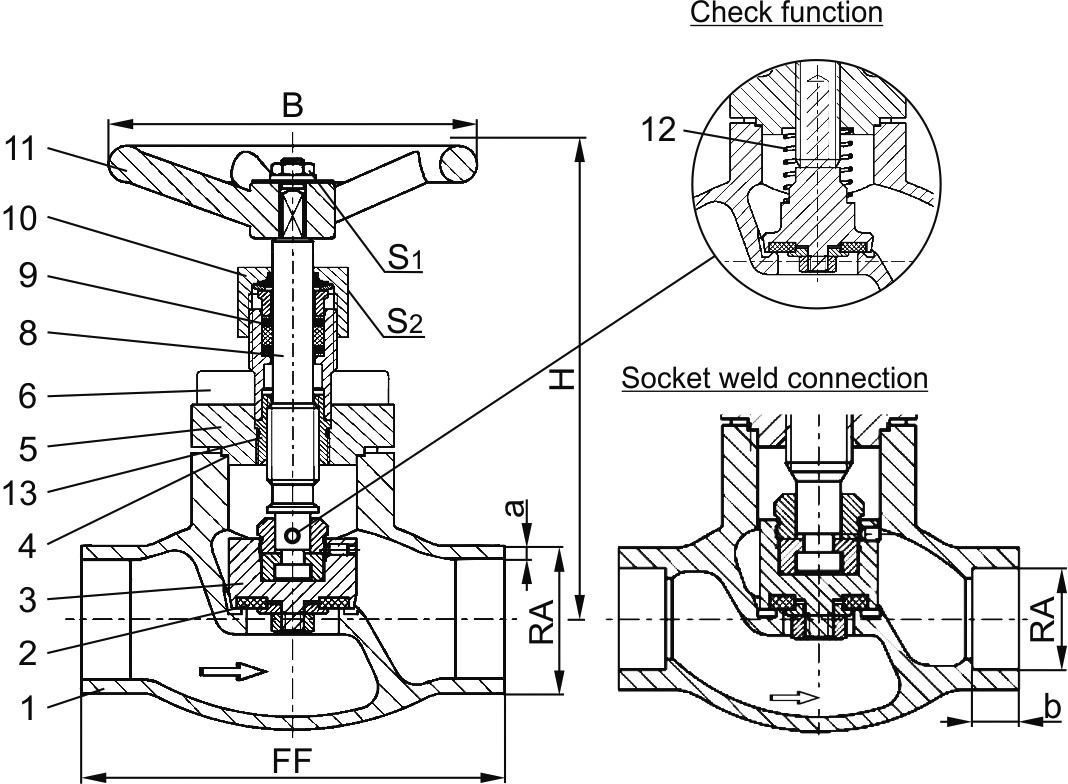

Versions

Type 01351 - Standard design

Technical data

Nominal size

DN

10

15

15

20

25

32

40

40

50

65

80

100

150

Dimension code

.X.

1012

1517

1521

2026

2533

3238

4042

4048

5060

657x

8088

0114

0168

Face-to-face dimension

FF

70

85

85

100

115

115

130

130

155

205

245

280

400

Height

H

140

140

140

140

140

170

175

175

200

260

310

350

380

Outside pipe-Ø ISO 1127

RA

12.0

17.2

21.3

26.9

33.7

38.0

42.4

48.3

60.3

76.1

88.9

114.3

168.3

Wall thickness pipe ISO 1127

a

1.0

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.9

3.2

6.0

7.1

Outside pipe-Ø ASTM A312

RA

13.72

17.15

21.34

26.67

33.40

-

42.16

48.26

60.32

73.02

88.90

114.30

168.27

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

6

10

10

13

13

-

13

13

16

16

16

20

20

Handwheel-Ø

B

100

100

100

100

100

125

125

125

125

200

250

315

360

Wrench size across flats

S1

7

7

7

7

7

10

10

10

10

10

10

12

15

Wrench size across flats

S2

30

30

30

30

30

36

36

36

36

36

36

41

41

Weight

ca. kg

1.0

1.25

1.3

1.7

2.0

2.8

4.2

4.2

6.7

10.7

16.0

23.0

54.1

Kvs-Value

m³/h

1.6

3.8

4.3

6.7

11.5

14.0

20.6

22.6

37.1

71.1

104.0

170.0

350.0

Cv-Value

gal/min

1.9

4.4

5.0

7.8

13.4

16.2

23.9

26.3

43.2

82.9

121.3

198.3

408.4
