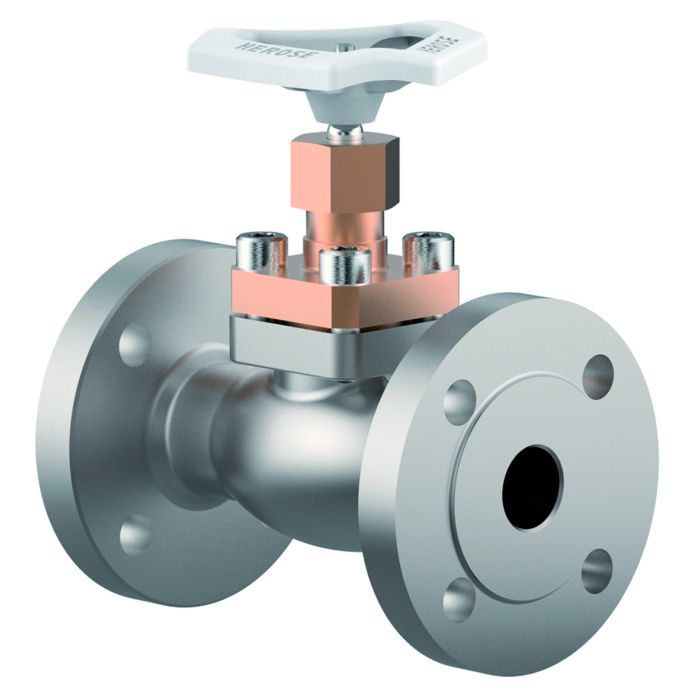

Type 03331 - Globe Valve, DIN EN Flanges
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Recommended working temperature: -60°C / -76°F (213K) up to +120°C / +248°F (393K)
Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
type-examination for LNG (DIN EN 12567)
Pressure Equipment Directive (2014/68/EU)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_03331_1 |

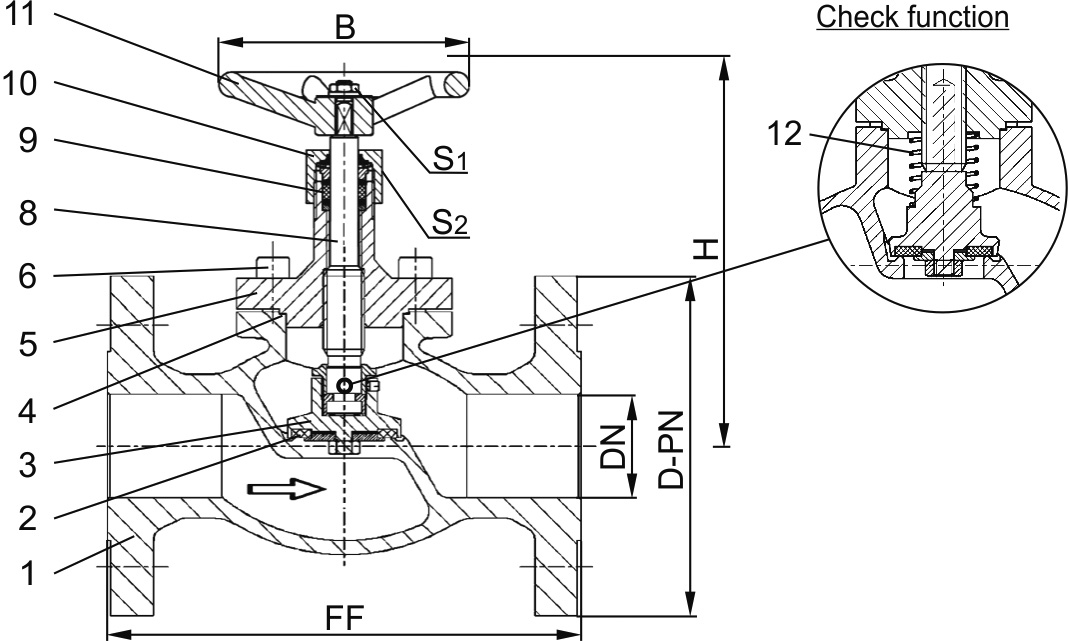

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal up to DN50 |
PTFE / Carbon filled (25%) |
|
2a |
Valve seal from DN65 |
PTFE |
|
3 |
Disc |
CW614N |
B 283 UNS C38500 |
4 |
Bonnet gasket |
PTFE |
|
5 |
Headpiece |
CC493K |
B 505 UNS C93200 |
6 |
Bolts |
1.4301/A2 |
A 194 B8 |
8 |
Stem |
1.4301 |
A 276 Grade 304 |
9 |
Gland packing |
Graphite / PTFE |
|
10 |
Gland nut |
CW614N |
B 283 UNS C38500 |
11 |
Handwheel |
Aluminium alloy |
|
12 |
Spring |
CW452K |
B 159 UNS C51900 |
Type 03331 - Standard design |
Technical data |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
Dimension code - Flange EN 1092-1 PN40 |
.X. |
0150 |
0200 |
0250 |
0400 |
0500 |
0650 |
0800 |
1000 |
1500 |
Flange-Ø |
D-PN |
95 |
105 |
115 |
150 |
165 |
185 |
200 |
235 |
300 |
Face-to-face dimension |
FF |
140 |
150 |
160 |
200 |
230 |
290 |
310 |
350 |
550 |
Height |
H |
130 |
130 |
140 |
175 |
200 |
260 |
310 |
350 |
380 |
Handwheel-Ø |
B |
100 |
100 |
100 |
125 |
125 |
200 |
250 |
315 |
360 |
Wrench size across flats |
S1 |
7 |
7 |
7 |
10 |
10 |
10 |
10 |
12 |
15 |
Wrench size across flats |
S2 |
30 |
30 |
30 |
36 |
36 |
36 |
36 |
41 |
41 |
Weight |
ca. kg |
3.0 |
3.5 |
4.5 |
9.0 |
13.0 |
21.0 |
28.0 |
42.0 |
83.0 |
Kvs-Value |
m³/h |
4.3 |
6.7 |
11.5 |
22.6 |
37.1 |
71.1 |
104.0 |
170.0 |
350.0 |
Cv-Value |
gal/min |
5.0 |
7.8 |
13.4 |
26.3 |
43.2 |
82.9 |
121.3 |
198.3 |
408.4 |
