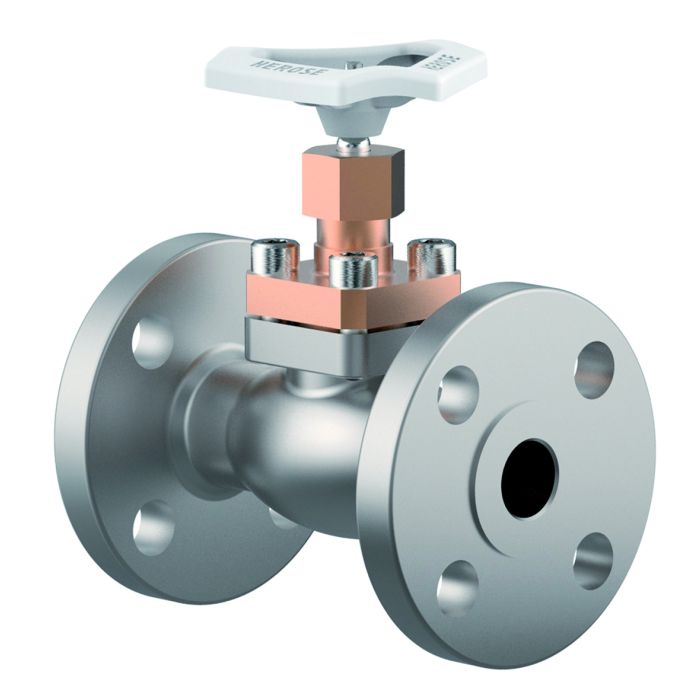

Type 03331 - Globe Valve, ASME B16.5 Flanges

Datasheet ID: CR_03331_2
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Recommended working temperature: -60°C / -76°F (213K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Globe and Globe/Check Valves, class 300

Stainless steel body and bronze topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 03331.X.0003

Part No. 03331.X.5003 Globe/Check Valve

Flanged connection acc. to ASME B16.5 class 300

Available options - on request only:

· Valve with control disc (tapered design)

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
License of Special Equipment (China) (TS) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 03331
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_03331_2

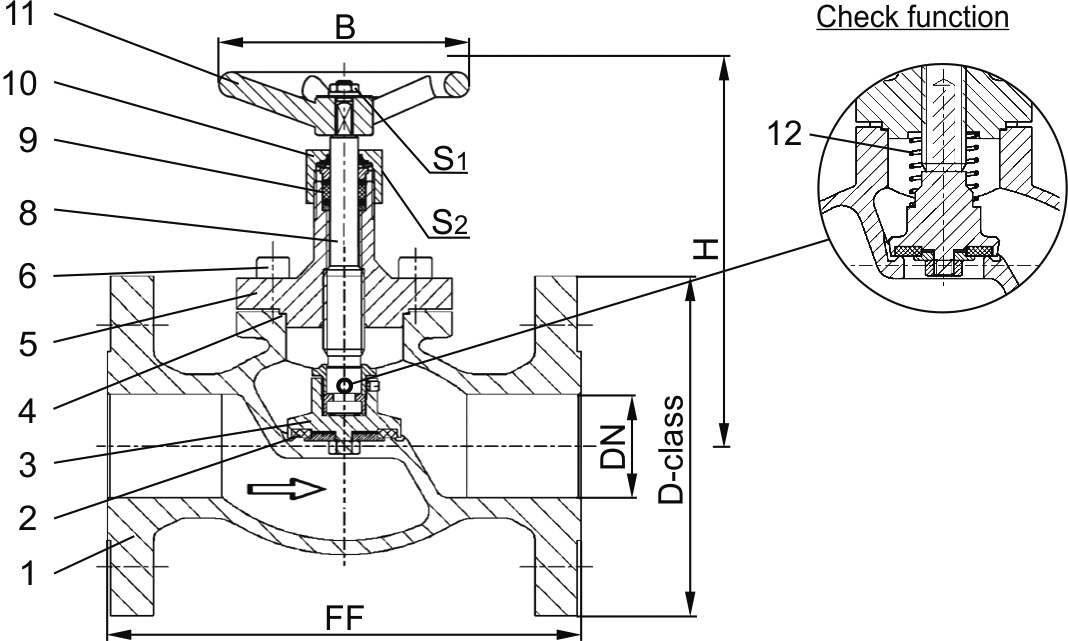

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal up to DN50

PTFE / Carbon filled (25%)

2a

Valve seal from DN65

PTFE

3

Disc

CW614N

B 283 UNS C38500

4

Bonnet gasket

PTFE

5

Headpiece

CC493K

B 505 UNS C93200

6

Bolts

1.4301/A2

A 194 B8

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE

10

Gland nut

CW614N

B 283 UNS C38500

11

Handwheel

Aluminium alloy

12

Spring

CW452K

B 159 UNS C51900
Versions

Type 03331 - Standard design

Technical data

Nominal size

DN

15

20

25

40

50

65

80

100

150

Dimension code - Flange ASME B16.5 class 300

.X.

0400

0600

1000

1400

2000

2400

3000

4000

6000

Flange-Ø

D-class

95

115

125

155

165

190

210

255

320

Face-to-face dimension

FF

140

150

160

200

230

290

310

350

597

Height

H

130

130

140

175

200

260

310

350

380

Handwheel-Ø

B

100

100

100

125

125

200

250

315

360

Wrench size across flats

S1

7

7

7

10

10

10

10

12

15

Wrench size across flats

S2

30

30

30

36

36

36

36

41

41

Weight

ca. kg

3.0

3.5

4.5

9.0

13.0

21.0

28.0

42.0

83.0

Kvs-Value

m³/h

4.3

6.7

11.5

22.6

37.1

71.1

104.0

170.0

350.0

Cv-Value

gal/min

5.0

7.8

13.4

26.3

43.2

82.9

121.3

198.3

408.4
