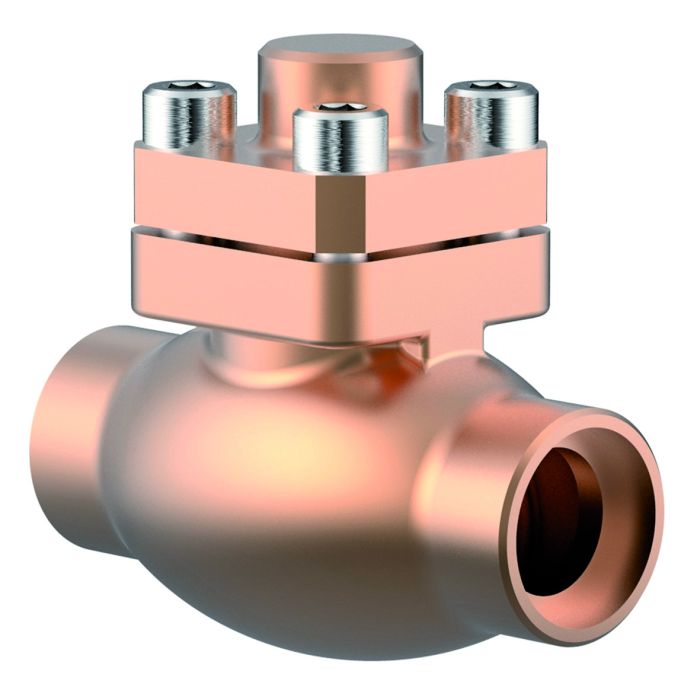

Type 05412 - Check Valve

Datasheet ID: CR_05412_1
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Check Valves, PN50

Bronze body and cap

with spring, opening pressure ca. 0.1 bar

"¦cleaned and degreased for oxygen service¦"

Part No. 05412.X.0001

Socket end for copper pipes acc. to DIN EN 12449 or ASTM B88

Available options - on request only:

· Socket end for stainless steel pipes acc. to ISO 1127

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
License of Special Equipment (China) (TS) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 05412
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_05412_1
Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW614N

B 283 UNS C38500

4

Spring

CW452K

B 159 UNS C51900

5

Bonnet gasket

PTFE

6

Bolts

1.4301/A2

A 194 B8

7

Cap

CC493K

B 505 UNS C93200

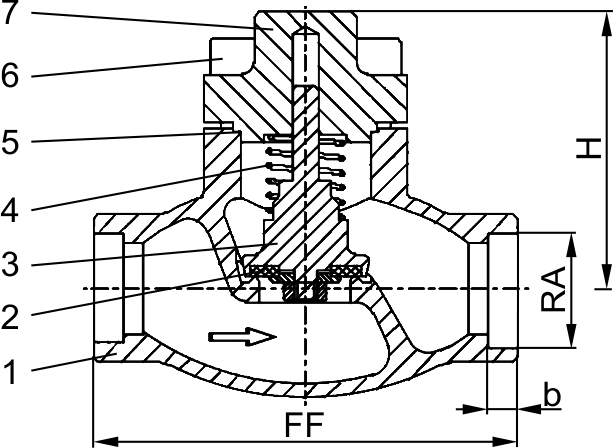

Versions

Type 05412 - Standard design

Technical data

Nominal size

DN

10

15

20

25

32

40

50

Dimension code

.X.

X=DNRA, Example: valve DN10 for copper pipe RAØ12mm. X=1012

Face-to-face dimension

FF

60

85

85

115

115

140

160

Height

H

71

71

72

75

87

95

95

Outside pipe-Ø

RA

dependent on order

Socket depth

b

6

6

8

8

10

13

20

Weight

ca. kg

0.7

1.0

1.3

1.6

2.4

3.9

5.7

Kvs-Value

m³/h

1.6

4.3

6.7

11.5

12.1

22.6

37.1

Cv-Value

gal/min

1.9

5.0

7.8

13.4

14.1

26.3

43.2
