Type 05419 - Check Valve, ASME B16.5 Flanges

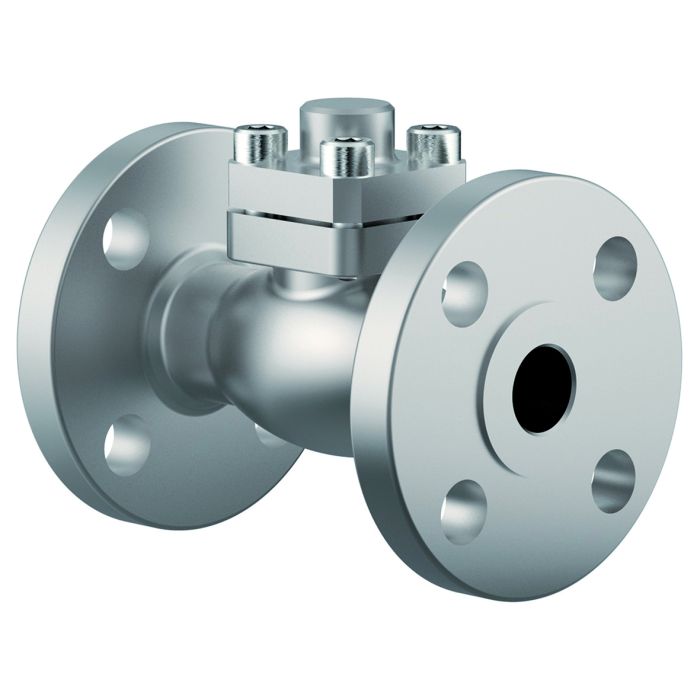

The product shown in the picture may differ from the product sold.
Type 05419 - Check Valve, ASME B16.5 Flanges
Datasheet ID: CR_05419_2
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Description
Cryogenic-Check Valves, class 300
Stainless steel body and cap
with spring, opening pressure ca. 0.1 bar
"¦cleaned and degreased for oxygen service¦"
Part No. 05419.X.0003
Flanged connection acc. to ASME B16.5 class 300
Certificates
type-examination for LNG (DIN EN 12567)
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-05XXX_08XXX
Canadian Registration Number (CRN)
0C22963.5 - Ontario
0C22963.5N - Nunavut
0C22963.5T - Northwest Territories
0C22963.5Y - Yukon
0C22963.50 - Newfoundland and Labrador
0C22963.51 - Britsh Columbia
0C22963.52 - Alberta
0C22963.53 - Saskatchewan
0C22963.54 - Manitoba.pdf
0C22963.56 - Quebec
0C22963.57 - New Brunswick.pdf
0C22963.58 - Nova Scotia.pdf
0C22963.59 - Prince Edward Island
ClassNK (Class Rules)
License of Special Equipment (China) (TS)
TSX71000120220017
TSX71000520230058
TS2700G39-2029
BV (Class Rules)
SMS.W.I./11744/C.0
RINA (Class Rules)
Pressure Equipment Directive (2014/68/EU)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Lloyd's Register (Class Rules)
LR25294732TA
LR2695076QAES
DNV (Class Rules)
ABS (Class Rules)
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine)
UA.276.127.03-26
UA.D.127.04-26
Data sheets
CR_05419_2_en.pdf
Operating Instructions
HEROSE-Manual-CR_05419_2-1
Declarations of Conformity
Pressure Equipment Directive (2014/68/EU)
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Delivery Times
The actual delivery time will be determined individually and is part of the order confirmation.
On Stock:
Out-Of Stock:
Delivery Time:
week(s)
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock:
Out-Of Stock
pcs
(ON STOCK)
Live Stock:
Delivery time (on stock):
Delivery time (off stock):
More Information
| Type (Series) |
05419 |
| Solution |
LNG, Air Gases |
| Solution Area |
Transport, Storage, Refueling, Processes |
| SKU |
CR_05419_2 |

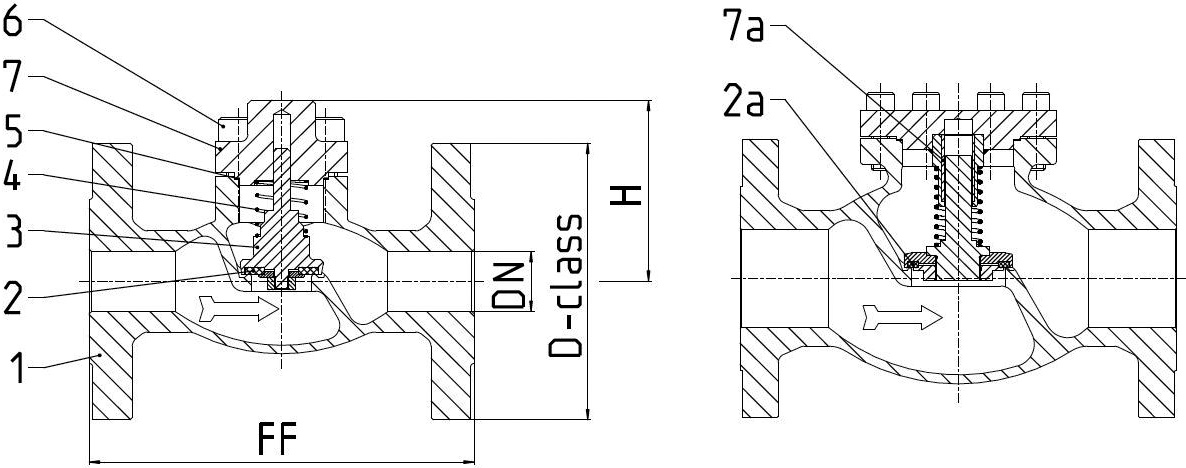

Materials
Materials |
|
DIN EN |
ASTM |
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal up to DN50 |
PTFE / Carbon filled (25%) |
|
2a |
Valve seal from DN65 |
PTFE |
|
3 |
Disc |
1.4301 |
A 276 Grade 304 |
4 |
Spring |
1.4571 |
A 313 Grade 316Ti |
5 |
Bonnet gasket |
PTFE |
|
6 |
Bolts |
1.4301/A2 |
A 194 B8 |
7 |
Cap |
1.4301 |
A 276 Grade 304 |
7a |
Bush from DN65 |
PTFE |
|
Versions
Type 05419 - Standard design |
Technical data |
|
|
|
|
|
|
|
|
|
Nominal size |
DN |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
Dimension code - Flange ASME B16.5 class 300 |
.X. |
0400 |
0600 |
1000 |
1400 |
2000 |
2400 |
3000 |
4000 |
6000 |
Flange-Ø |
D-class |
95 |
115 |
125 |
155 |
165 |
190 |
210 |
255 |
320 |
Face-to-face dimension |
FF |
140 |
150 |
160 |
200 |
230 |
290 |
310 |
350 |
597 |
Height |
H |
70 |
75 |
75 |
95 |
90 |
125 |
150 |
165 |
215 |
Weight |
ca. kg |
2.9 |
3.4 |
4.4 |
6.4 |
11.6 |
19.2 |
25.2 |
39.8 |
90.3 |
Kvs-Value |
m³/h |
4.3 |
6.7 |
11.5 |
22.6 |
37.1 |
71.1 |
104.0 |
170.0 |
350.0 |
Cv-Value |
gal/min |
5.0 |
7.8 |
13.4 |
26.3 |
43.2 |
82.9 |
121.3 |
198.3 |
408.4 |
