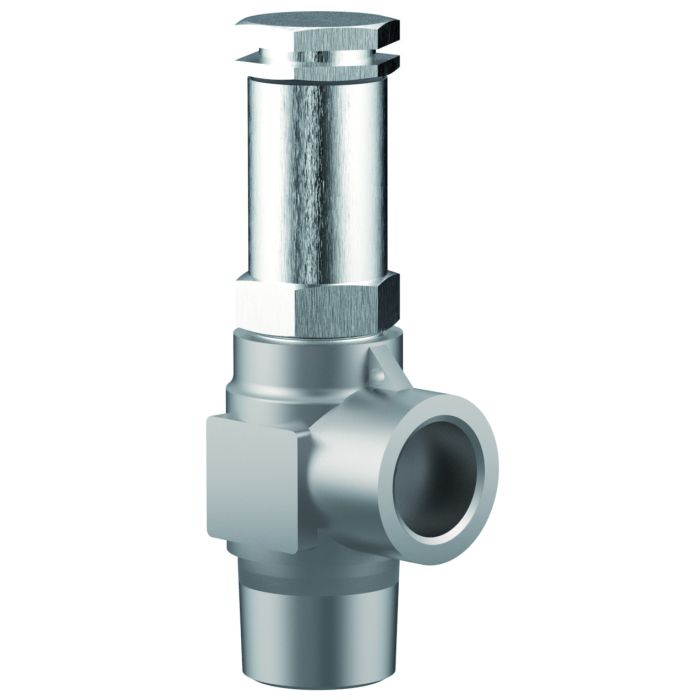

Type 06011 - gastight
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Provided as safety device for protection against thermal expansion in pipeworks and parts of facilities.
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG and Hydrogen.
Working temperature: -255°C / -427°F (18K) up to +65°C / +149°F (338K), suitable for horizontal installation
Certificates
Transportable Pressure Equipment Regulation 2009 (TPER 2009)
ABS (Class Rules)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | H2, LNG, Air Gases |
|---|---|
| Solution Area | Manufacturing, Transport, Storage, Application, Refueling, Processes |
| SKU | CR_06011 |
Materials |
DIN EN |
ASME/ASTM |
|
|---|---|---|---|
1 |
Body |
1.4408 |
A 351 CF8M |
2 |
Disc |
PTFE / Carbon filled (25%) |
|
3 |
Guide plate |
1.4301 |
A 276 Grade 304 |
4 |
Stem |
1.4301 |
A 276 Grade 304 |
5 |
Spring |
1.4571 |
A 313 Grade 316Ti |
6 |
Bonnet |
1.4301 |
A 276 Grade 304 |
7 |
Spring clamp |
1.4305 |
A 276 Grade 303 |
8 |
Thread ring |
1.4305 |
A 276 Grade 303 |
9 |
Cap |
1.4301 |
A 276 Grade 304 |

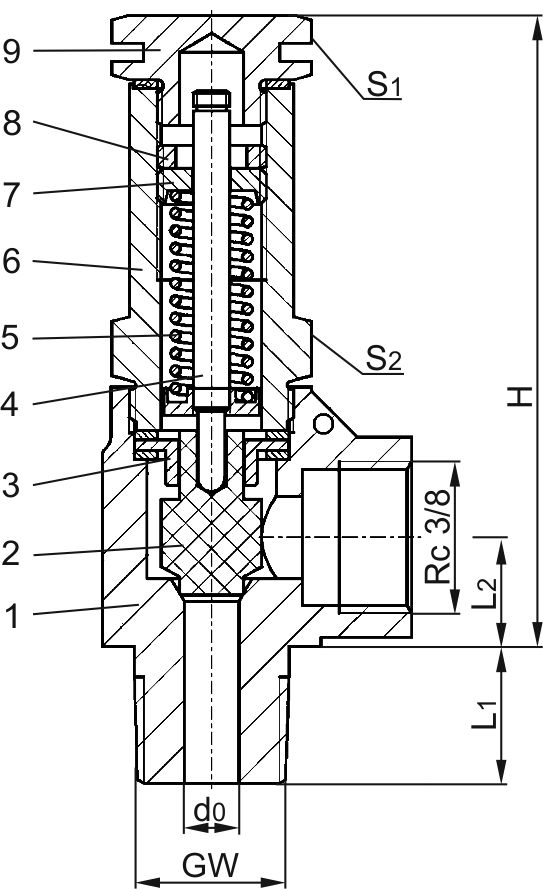

Type 06011 |
Technical data |
|||
|---|---|---|---|---|
Nominal size |
GW |
1/4 |
3/8 |
1/2 |
Orifice |
d0 |
6.0 |
6.0 |
6.0 |
Dimension code |
.X. |
0200 |
0300 |
0400 |
Set pressure range |
bar |
5.0-55.0 |
5.0-55.0 |
5.0-55.0 |
Height |
H |
70 |
70 |
70 |
Length |
L1 |
13 |
15 |
17 |
Length |
L2 |
13 |
13 |
13 |
Wrench size across flats |
S1 |
19 |
19 |
19 |
Wrench size across flats |
S2 |
19 |
19 |
19 |
Weight |
ca. kg |
0.18 |
0.195 |
0.21 |
Coefficient of discharge |
αw |
0.09 |
0.09 |
0.09 |
