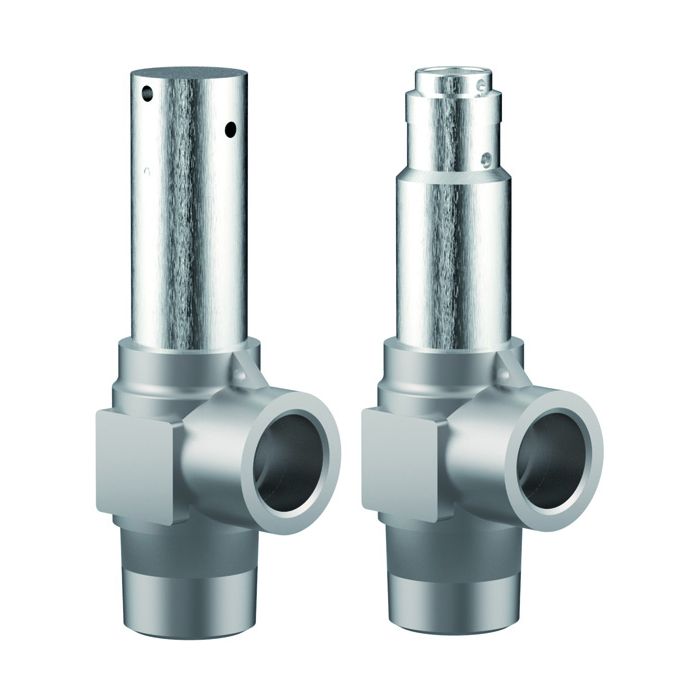

Type 06012, Type 06016

Datasheet ID: CR_06012_06016
Field of application chevron-down

Applications:

Provided as safety device for protection against thermal expansion in pipeworks and parts of facilities.

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +150°C / +302°F (423K), suitable for horizontal installation

Description chevron-down

Cryogenic Safety Valves, angle type, stainless steel, PN63, type tested TÃœV-SV.1048. S/G

Standard safety valve, with carbon filled PTFE valve seal, open bonnet

Outlet: female thread Rc 3/8 acc. to ISO 7/1, "¦cleaned and degreased for oxygen service¦"

Type 06012: drainage hole in the locking screw

Type 06016: drainage hole in the bonnet

Part No. 06012.X.0000:

Part No. 06016.X.0000 (with lifting device)

Inlet: male thread type R (BSPT) acc. to ISO 7/1

Part No. 06012.X.2000

Part No. 06016.X.2000 (with lifting device)

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06012.X.5000

Part No. 06016.X.5000 (with lifting device)

Inlet: male thread NPT acc. to ANSI B 1.20.1

Available options - on request only:

· with installed elbow at the outlet

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
ASME Code (ASME Code Section VIII) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
ClassNK (Class Rules) chevron-down
BV (Class Rules) chevron-down
RINA (Class Rules) chevron-down
TÜV Verband (Approval mark number) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
License of Special Equipment (China) (TS) chevron-down
Lloyd's Register (Class Rules) chevron-down
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 06012,06016
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06012_06016

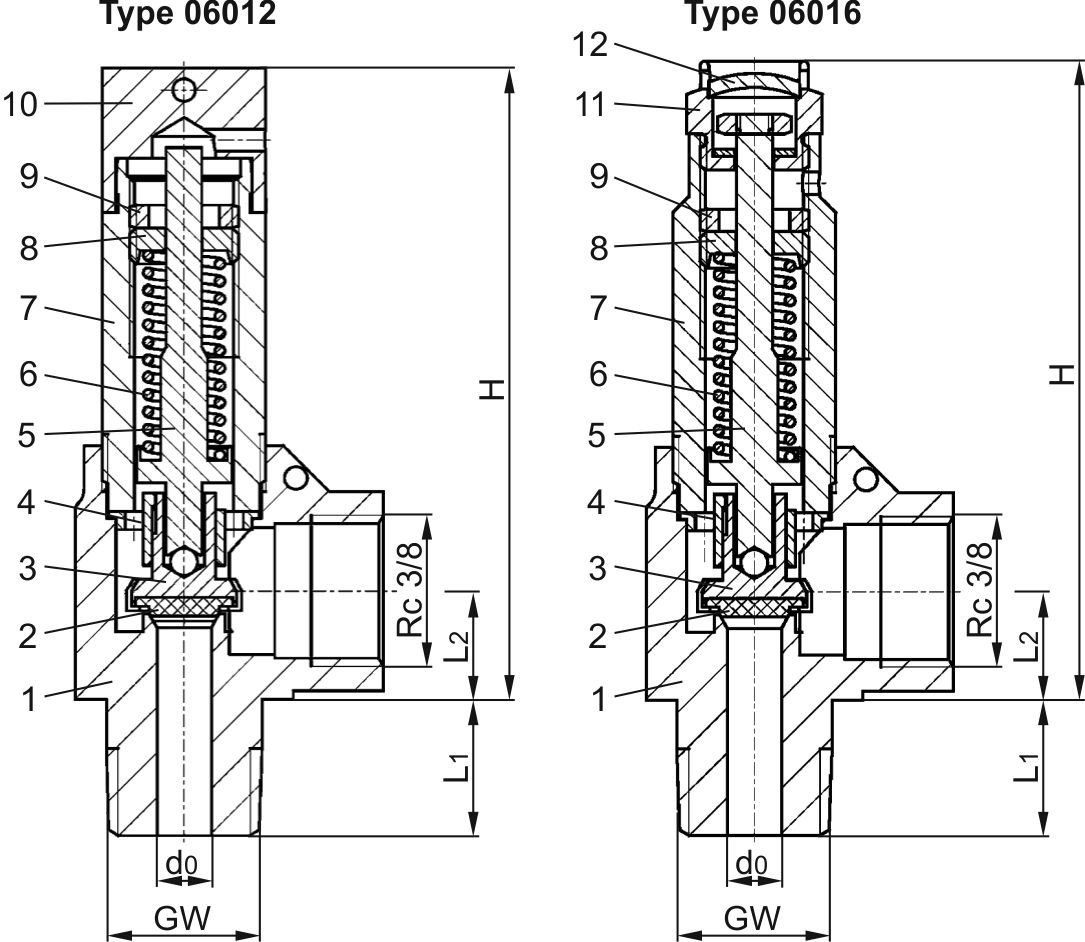

Materials

Materials

DIN EN

ASME/ASTM

1

Body

1.4408

SA 351 CF8M

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

1.4301

SA 479 Grade 304

4

Guide plate

1.4301

SA 479 Grade 304

5

Stem

1.4301

SA 479 Grade 304

6

Spring

1.4571

SA 313 Grade 316Ti

7

Bonnet

1.4301

SA 479 Grade 304

8

Spring clamp

1.4305

SA 314 Grade 303

9

Thread ring

1.4305

SA 314 Grade 303

10

Cap

1.4301

SA 479 Grade 304

11

Lifting device

1.4305

SA 479 Grade 303

12

Closing cap

1.4305

SA 479 Grade 303
Versions

Technical data

Type 06012

Type 06016

Nominal size

GW

1/4

3/8

1/2

1/4

3/8

1/2

Orifice

d0

6.0

6.0

6.0

6.0

6.0

6.0

Dimension code

.X.

0200

0300

0400

0200

0300

0400

Set pressure range

bar

1.0-55.0

1.0-55.0

1.0-55.0

1.0-55.0

1.0-55.0

1.0-55.0

Height

H

70

70

70

72

72

72

Length

L1

13

15

17

13

15

17

Length

L2

13

13

13

13

13

13

Weight

ca. kg

0.185

0.20

0.22

0.18

0.195

0.21

Coeff. of discharge from 3.0 bar

αw

0.42

0.42

0.42

0.42

0.42

0.42
