Type 06012 - gastight

Datasheet ID: CR_06012
Field of application chevron-down

Applications:

Provided as safety device for protection against thermal expansion in pipeworks and parts of facilities.

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG and Hydrogen.

Working temperature: -255°C / -427°F (18K) up to +150°C / +302°F (423K), suitable for horizontal installation

Description chevron-down

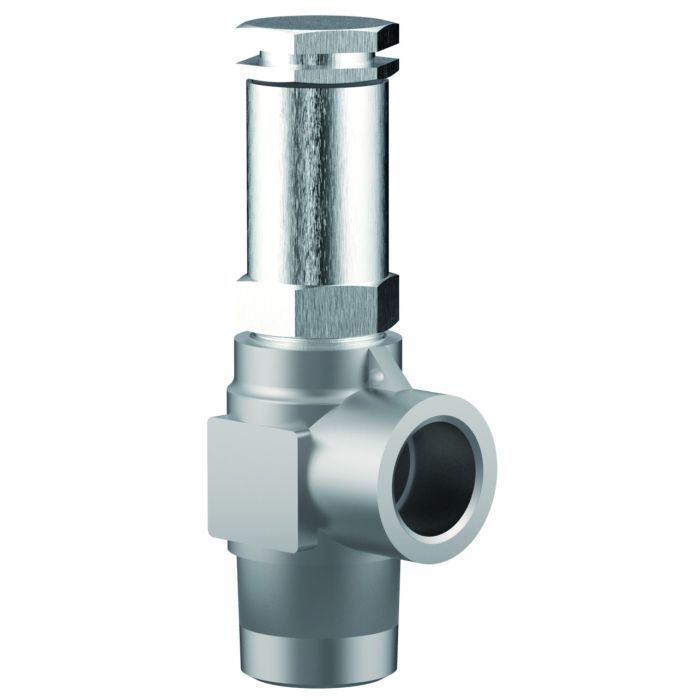

Cryogenic Safety Valves, angle type, stainless steel, PN63, type tested TÃœV-SV.1048. S/G

Standard Safety Valve,

gastight, closed bonnet

with carbon filled PTFE valve seal

Outlet: female thread Rc 3/8 acc. to ISO 7/1

"cleaned and degreased for oxygen service"

Part No. 06012.X.0020

Inlet: male thread type R (BSPT) acc. to ISO 7/1

Part No. 06012.X.2020

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06012.X.5020

Inlet: male thread NPT acc. to ANSI B 1.20.1

Available options - on request only:

· with installed elbow at the outlet

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
ASME Code (ASME Code Section VIII) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
ClassNK (Class Rules) chevron-down
BV (Class Rules) chevron-down
RINA (Class Rules) chevron-down
TÜV Verband (Approval mark number) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
License of Special Equipment (China) (TS) chevron-down
Lloyd's Register (Class Rules) chevron-down
ABS (Class Rules) chevron-down
25-0381115-PDA
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 06012
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Application, Refueling, Processes
SKU CR_06012

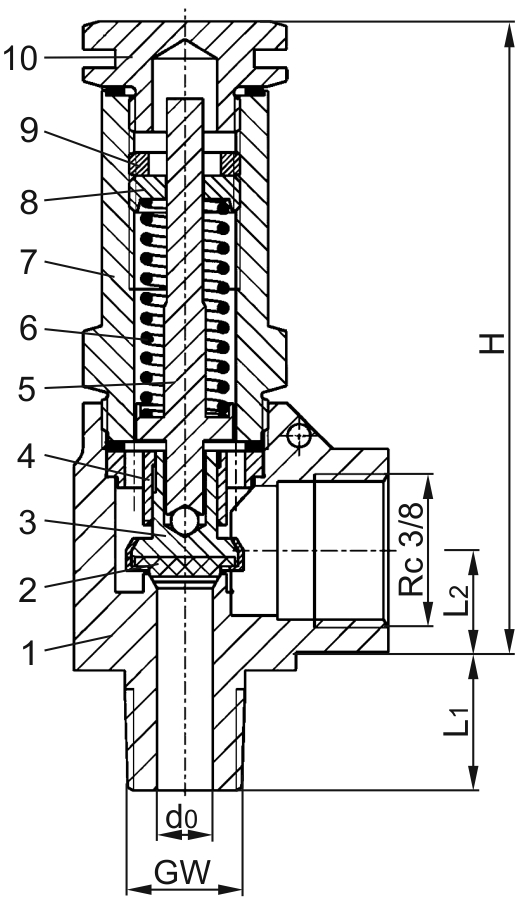

Materials

Materials

DIN EN

ASME/ASTM

1

Body

1.4408

SA 351 CF8M

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

1.4301

SA 479 Grade 304

4

Guide plate

1.4301

SA 479 Grade 304

5

Stem

1.4301

SA 479 Grade 304

6

Spring

1.4571

SA 313 Grade 316Ti

7

Bonnet

1.4301

SA 479 Grade 304

8

Spring clamp

1.4305

SA 314 Grade 303

9

Thread ring

1.4305

SA 314 Grade 303

10

Cap

1.4301

SA 479 Grade 304
Versions

Type 06012

Technical data

Nominal size

GW

1/4

3/8

1/2

Orifice

d0

6.0

6.0

6.0

Dimension code

.X.

0200

0300

0400

Set pressure range

bar

1.0-55.0

1.0-55.0

1.0-55.0

Height

H

70

70

70

Length

L1

13

15

17

Length

L2

13

13

13

Weight

ca. kg

0.18

0.20

0.22

Coefficient of discharge

αw

0.34

0.34

0.34
