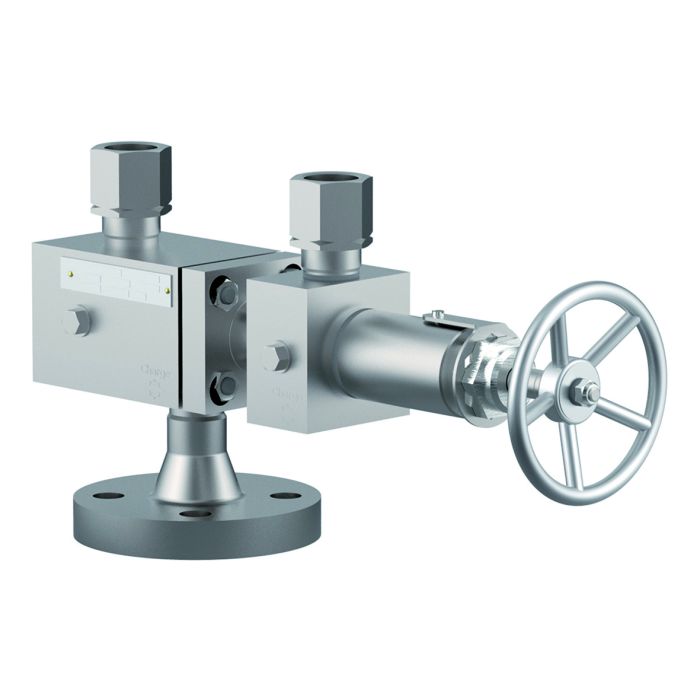

Type 06401 - Changeover Valve DN25

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K)

Cryogenic Changeover Valves, stainless steel, PN160

for the installation of two safety valves,

with two test connections G 1/4,

"cleaned and degreased for oxygen service"

Part No. 06401.0250.9018

Inlet Flange, DN 25, PN 160

Outlet: locking sleeve G1

Part No. 06401.0250.9***

*** Changeover valves with other flanges for vessel connection

and connection for safety valves on request

Available options - on request only:

· Changeover valves with pneumatic or electric actuator

· Outlet GA with female thread (G) acc. to ISO 228/1

· Outlet GA with female thread NPT acc. to ANSI B 1.20.1

· Outlet GA with flanged connections
