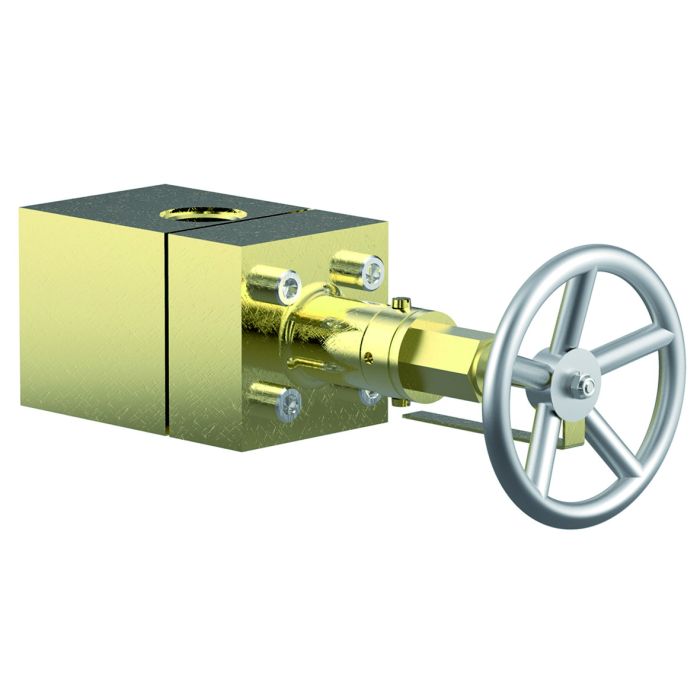

Type 06405 - Changeover Valve

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K)

Cryogenic Changeover Valves, brass

for the installation of two safety valves,

with indicator and two test connections G 1/4,

"cleaned and degreased for oxygen service"

Part No. 06405.0150.0000, DN15, PN40, metal to metal seated

Female thread connection (G) acc. to ISO 228/1

Part No. 06405.0150.6000, DN15, PN40, metal to metal seated

Female thread connection NPT acc. to ANSI B 1.20.1

Part No. 06405.0250.0000, DN25, PN45, PTFE valve seal

Female thread connection (G) acc. to ISO 228/1

Part No. 06405.0250.6000, DN25, PN45, PTFE valve seal

Female thread connection NPT acc. to ANSI B 1.20.1

Available options - on request only:

· Valve with bursting disc connections

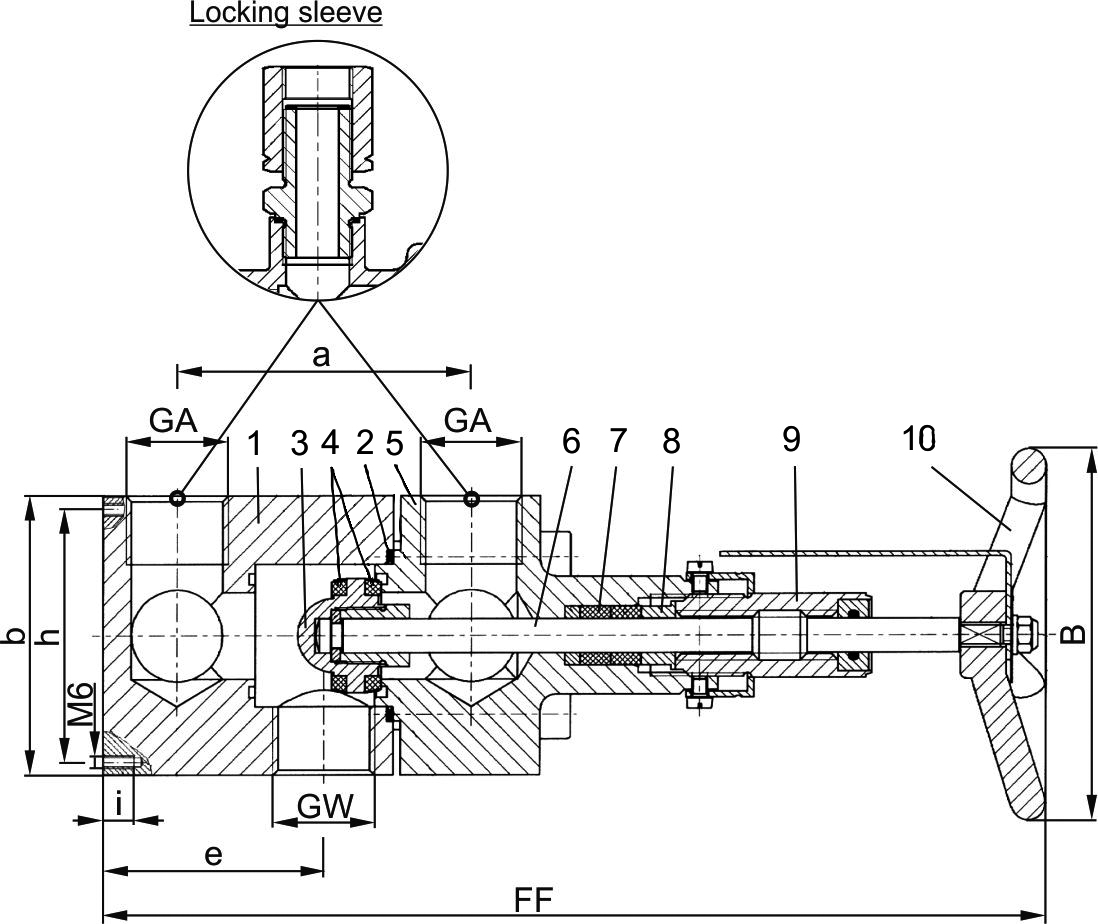

· Outlet: GA with installed locking sleeve for easy positioning of safety valves

· Outlet: GA with thread 3/4''
