Type 06416

Datasheet ID: CR_06416
Field of application chevron-down

Applications:

Provided as safety device for protection against excessive pressure in stationary and moveable gas

cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K)

Description chevron-down

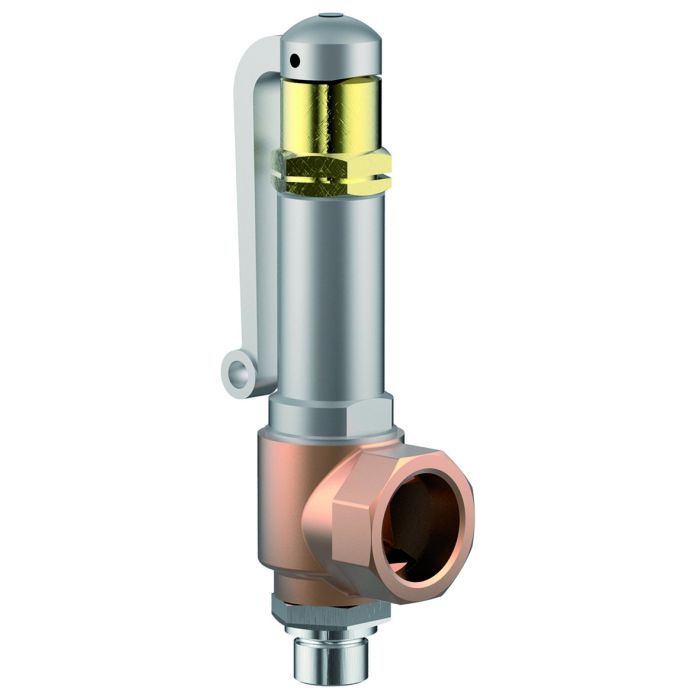

Cryogenic Safety Valves, angle type, bronze, PN40, type tested TÃœV-SV.780. S/G

Standard safety valve (0.2 - 25.0/40.0 bar). ASME certification only for d010.5

Metal to metal seated, closed bonnet, with lifting device

"cleaned and degreased for oxygen service"

Part No. 06416.X.0000

Inlet: male thread type G (BSPP) acc. to ISO 228/1, Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06416.X.2000

Inlet: male thread type R (BSPT) acc. to ISO 7/1, Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06416.X.5000

Inlet: male thread NPT acc. to ANSI B 1.20.1, Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06416.X.6000

Inlet: male thread NPT acc. to ANSI B 1.20.1, Outlet: female thread NPT acc. to ANSI B 1.20.1

Available options - on request only:

· external parts nickel plated · with installed elbow at the outlet

Certificates chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
ASME Code (ASME Code Section VIII) chevron-down
Canadian Registration Number (CRN) chevron-down
ClassNK (Class Rules) chevron-down
TÜV Verband (Approval mark number) chevron-down
BV (Class Rules) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
License of Special Equipment (China) (TS) chevron-down
ABS (Class Rules) chevron-down
25-0381115-PDA
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 06416
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06416

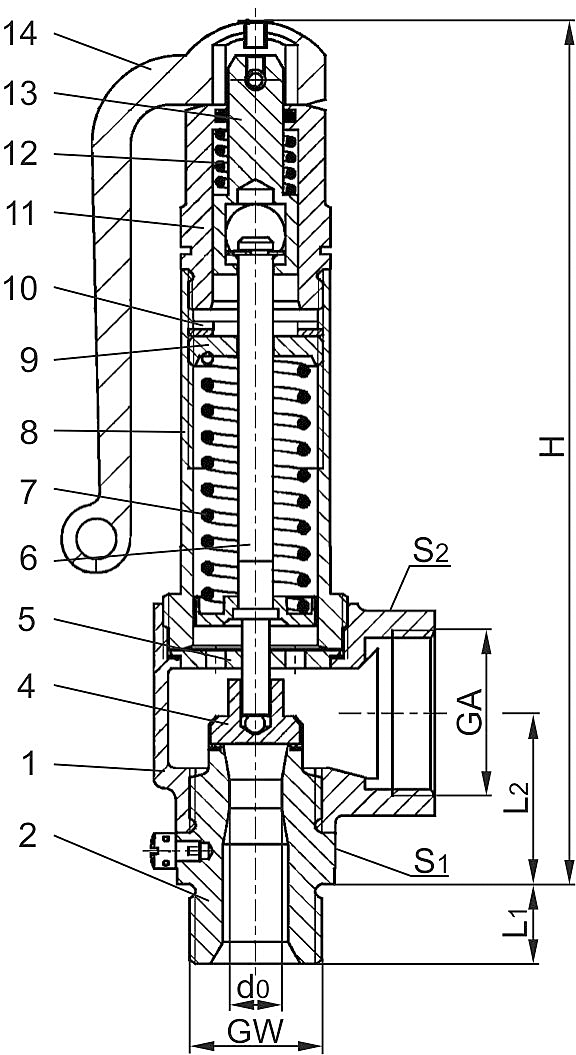

Materials

Materials

DIN EN

ASME/ASTM

1

Outlet body

CC491K

B 62 UNS C83600

2

Inlet body

1.4301

A 276 Grade 304

4

Disc

1.4541

A 276 Grade 321

5

Guide plate

CW453K

B 103 UNS C52100

6

Stem

CW453K

B 103 UNS C52100

7

Spring

1.4571

A 313 Grade 316Ti

8

Bonnet

1.4308

A 351 CF 8

9

Spring clamp

CW614N

B 283 UNS C38500

10

Thread ring

CW614N

B 283 UNS C38500

11

Lifting cap

CW614N

B 283 UNS C38500

12

Lifting spring

1.4571

A 276 Grade 316Ti

13

Lifting stem

CW614N

B 283 UNS C38500

14

Lever

1.4408

A 351 CF8M
Versions

Type 06416

Technical data

Nominal size

GW

1/2

3/4

1

Orifice

d0

10.5

10.5

14.0

Dimension code

.X.

1004

1006

1410

Set pressure range

bar

0.2-25.0

0.2-25.0

0.2-40.0

Outlet

GA

1

1

1-1/4

Height

H

175

175

194

Length

L1

14

16

18

Length

L2

36

36

42

Wrench size across flats

S1

30

30

41

Wrench size across flats

S2

41

41

50

Weight

ca. kg

0.96

1.00

1.50

Coeff. of discharge from 3.0 bar

αw

0.67

0.67

0.67
