Type 06474

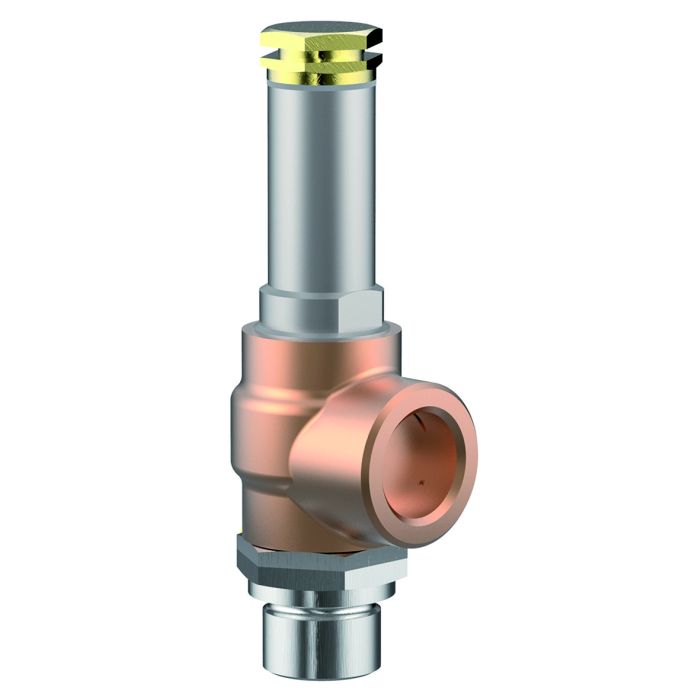

The product shown in the picture may differ from the product sold.
Field of application
Applications:
Provided as safety device for protection against excessive pressure in stationary and moveable gas
cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +150°C / +302°F (423K), suitable for horizontal installation
Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
ABS (Class Rules)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | H2, LNG, Air Gases |
|---|---|
| Solution Area | Manufacturing, Transport, Storage, Application, Refueling, Processes |
| SKU | CR_06474 |

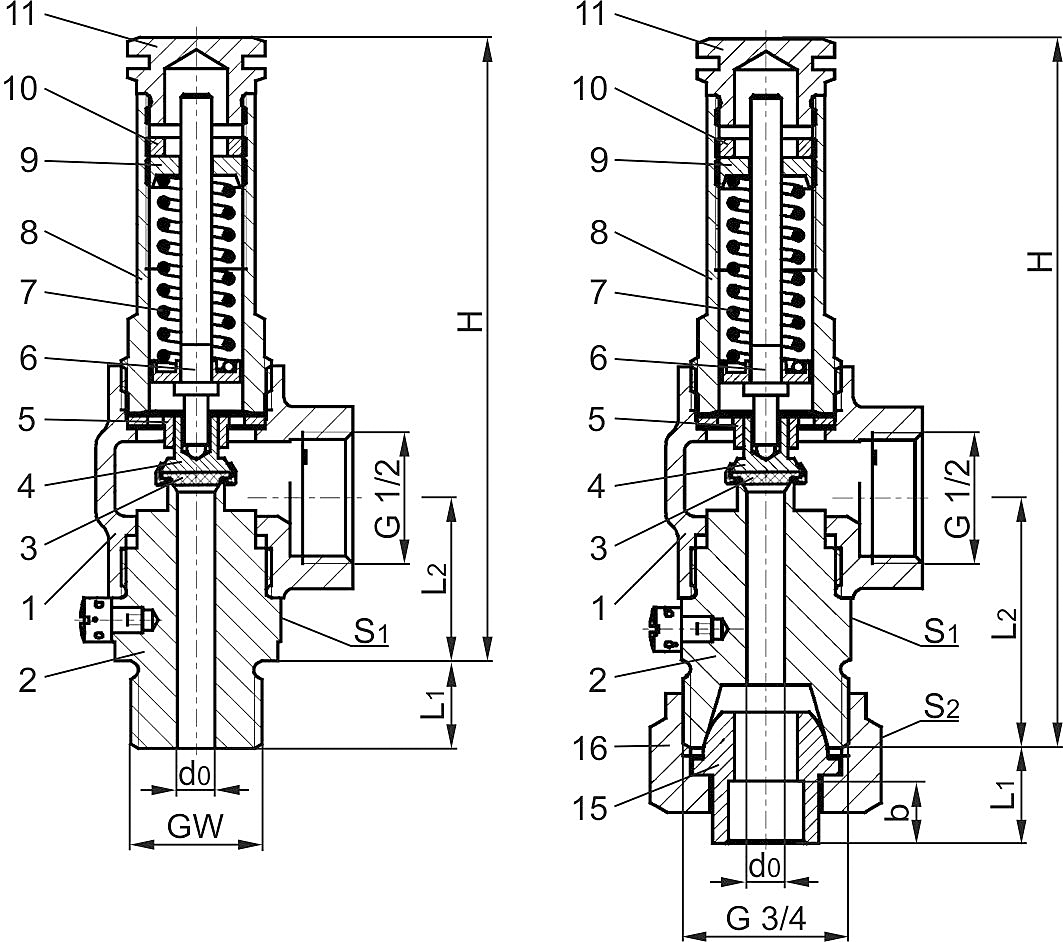

Materials |
DIN EN |
ASME/ASTM |
|
|---|---|---|---|
1 |
Outlet body |
CC491K |
B 62 UNS C83600 |
2 |
Inlet body |
1.4301 |
A 276 Grade 304 |
3 |
Valve seal |
PTFE / Carbon filled (25%) |
|
4 |
Disc |
CW452K |
B 159 UNS C51900 |
5 |
Guide plate |
CC493K |
B 505 UNS C93200 |
6 |
Stem |
CW614N |
B 283 UNS C38500 |
7 |
Spring |
1.4571 |
A 313 Grade 316Ti |
8 |
Bonnet |
1.4301 |
A 276 Grade 304 |
9 |
Spring clamp |
CW614N |
B 283 UNS C38500 |
10 |
Thread ring |
CW614N |
B 283 UNS C38500 |
11 |
Cap |
CW614N |
B 283 UNS C38500 |
15 |
Weld/Braze fitting |
1.4301 |
A 276 Grade 304 |
16 |
Union nut |
CW614N |
B 283 UNS C38500 |
Type 06474 |
Technical data |
||||
|---|---|---|---|---|---|
Nominal size |
GW |
1/4 |
3/8 |
1/2 |
3/4 |
Orifice |
d0 |
6.0 |
6.0 |
6.0 |
6.0 |
Dimension code |
.X. |
0200 |
0300 |
0400 |
0600 |
Set pressure range |
bar |
0.4-55.0 |
0.4-55.0 |
0.4-55.0 |
0.4-55.0 |
Height |
H |
100 |
100 |
100 |
114 |
Length |
L1 |
12 |
13 |
14 |
15.5 |
Length |
L2 |
26 |
26 |
26 |
40 |
Socket depth |
b |
- |
- |
- |
10 |
Wrench size across flats |
S1 |
27 |
27 |
27 |
27 |
Wrench size across flats |
S2 |
- |
- |
- |
32 |
Weight |
ca. kg |
0.34 |
0.36 |
0.38 |
0.48 |
Coefficient of discharge |
αw |
0.66 |
0.66 |
0.66 |
0.66 |
