Type 06510 - Diverter Valve

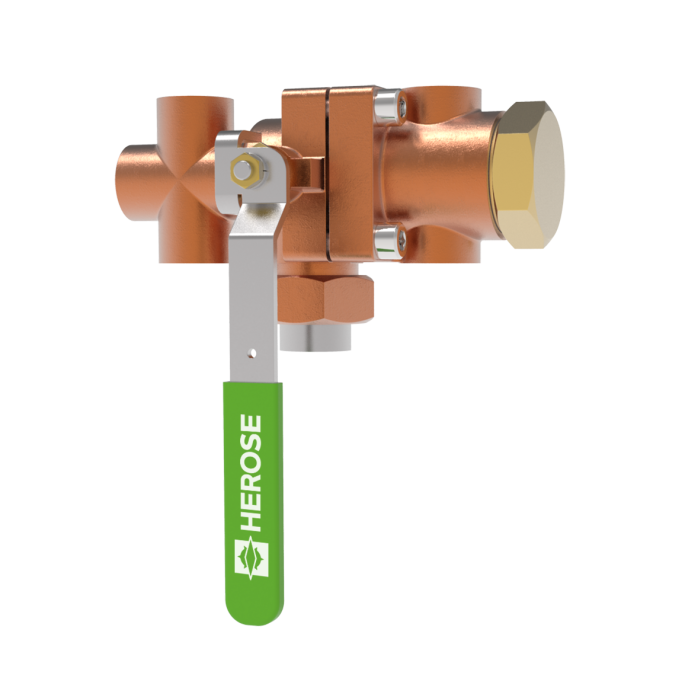

The product shown in the picture may differ from the product sold.
Type 06510 - Diverter Valve
Datasheet ID: CR_06510_2
Field of application
Important:
The valves must be fixed at the
provided threads M10.
Spare part kit for lever replacement:
For Change-over Valves 0651X,
there is a spare part kit available for
replacing the lever (also suitable for
versions before 07/2024).
DN20 30320.0200.0783
DN32 30320.0320.0783
Certificates
Canadian Registration Number (CRN)
0C20592.5ADD1 - Ontario
0C20592.5NADD1- Nunavut
0C20592.5TADD1- Northwest Territories
0C20592.5YADD1- Yukon
0C20592.50ADD1- Newfoundland Labrador
0C20592.51ADD1 - British Columbia
0C20592.52ADD1 - Alberta
0C20592.53ADD1 - Saskatchewan
0C20592.54ADD1 - Manitoba
0C20592.56ADD1 - Quebec
0C20592.57ADD1- New Brunswick
0C20592.58ADD1- Nova Scotia
0C20592.59ADD1- Prince Edward Island
0C20592.5ADD2 - Ontario
0C20592.5NADD2 - Nunavut
0C20592.5TADD2 - Northwest Territories
0C20592.5YADD2 - Yukon
0C20592.50ADD2 - Newfoundland Labrador
0C20592.51ADD2 - British Columbia
0C20592.52ADD2 - Alberta
0C20592.53ADD2 - Saskatchewan
0C20592.54ADD2 - Manitoba
0C20592.56ADD2 - Quebec
0C20592.57ADD2 - New Brunswick
0C20592.58ADD2 - Nova Scotia
0C20592.59ADD2 - Prince Edward Island
0C20592.5 - Ontario
0C20529.5N - Nunavut
0C20592.5T - Northwest Territories
0C20592.5Y - Yukon
0C20592.50 - Newfoundland and Labrador
0C20592.51 - British Columbia
0C20592.54 - Manitoba
0C20592.57 - New Brunswick
0C20592.58 - Nova Scotia
0C20592.59 - Prince Edward Island
CSA-0C20592.56 - Quebec and Saskatchewan
type-examination for LNG (DIN EN 12567)
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
Gost Ukraine (Gost Ukraine)
UA.276.159.01-21
UA.D.159.01-21
License of Special Equipment (China) (TS)
TSX71000120220018
TS2700G39-2029
Pressure Equipment Directive (2014/68/EU)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Data sheets
CR_06510_2_en.pdf
Delivery Times
The actual delivery time will be determined individually and is part of the order confirmation.
On Stock:
Out-Of Stock:
Delivery Time:
week(s)
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock:
Out-Of Stock
pcs
(ON STOCK)
Live Stock:
Delivery time (on stock):
Delivery time (off stock):
More Information
| Solution |
LNG, Air Gases |
| Solution Area |
Transport, Storage, Refueling |
| SKU |
CR_06510_2 |
Materials
Materials |
|
DIN EN |
ASTM |
1 |
Body I |
CC491K |
B 62 UNS C83600 |
2 |
Body II |
CC491K |
B 62 UNS C83600 |
3 |
Ball |
1.4571 |
A 276 Grade 316Ti |
4 |
Seat rings |
PCTFE |
|
5 |
Bush |
CW614N |
B 283 UNS C38500 |
6 |
Spring plates |
1.4571 |
A 313 Grade 316Ti |
7 |
Spring clamp |
CW614N |
B 283 UNS C38500 |
8 |
Thread ring |
CW614N |
B 283 UNS C38500 |
9 |
Plug |
CW614N |
B 283 UNS C38500 |
10 |
Stem |
1.4301 |
A 276 Grade 304 |
11 |
Gland packing |
Graphit / PTFE |
|
12 |
Lever |
1.4404 |
A479 Grade 316L |
13 |
Braze fitting |
CC493K |
B 505 UNS C93200 |
13a |
Weld fitting |
1.4301 |
A 276 Grade 304 |
14 |
Union nut |
CC493K |
B 505 UNS C93200 |
Versions

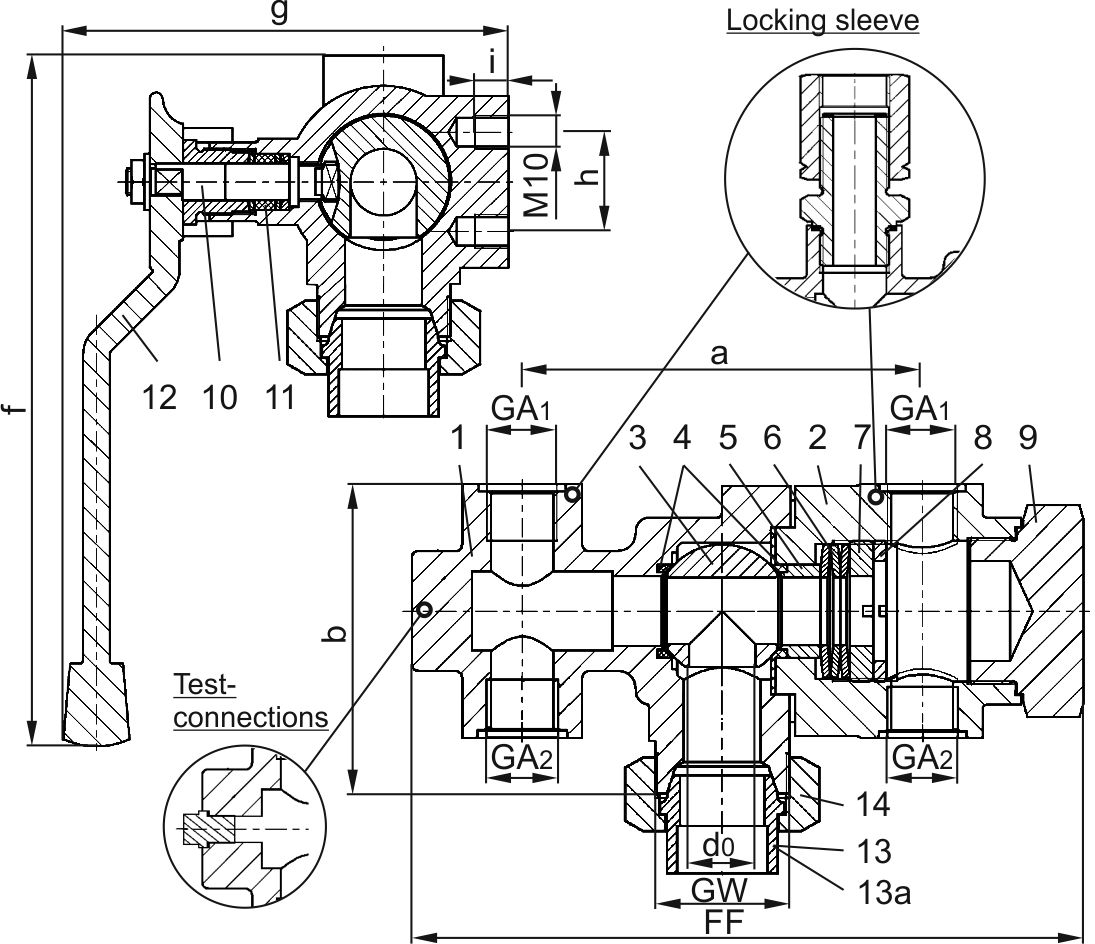

Type 06510 - Standard design |
Technical data |
|
|
Nominal size |
DN |
20 |
20 |
Dimension code |
.X. |
2040 |
2060 |
Flow diameter |
d0 |
20 |
20 |
Inlet |
GW |
M40x2 |
M40x2 |
Outlet |
GA1 |
1/2 |
3/4 |
Outlet |
GA2 |
1/2 |
1/2 |
Face-to-face dimension |
FF |
201 |
201 |
Length |
a |
120 |
120 |
Height |
b |
92 |
92 |
Length |
f |
208 |
208 |
Length |
g |
134 |
134 |
Length |
h |
30 |
30 |
Thread depth |
i |
10 |
10 |
Wrench size across flats |
S1 |
50 |
50 |
Weight |
ca. kg |
5.1 |
5.0 |
Kvs - Value, one side open |
m³/h |
7.7 |
7.7 |
Cv - Value, one side open |
gal /min |
9.2 |
9.2 |
Product Variants
Product Variants
Filter our product by specific attributes
|
Name |
Connection inlet |
Connection outlet |
Connection dimension inlet |
Connection dimension outlet |
CV-Value |
Nominal Size |
Link to product
|
