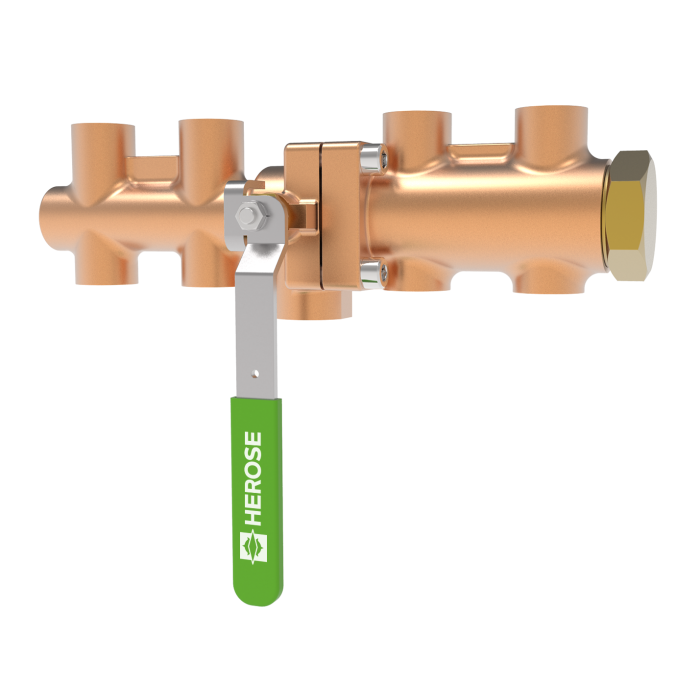

Type 06512 - Diverter Valve

Datasheet ID: CR_06512
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic Diverter Valves, bronze, PN50

for the installation of four safety valves,

provided for bursting disc connections,

"cleaned and degreased for oxygen service"

Part No. 06512.X.0000

Female thread connection (G) acc. to ISO 228/1

Part No. 06512.X.6000

Female thread connection NPT acc. to ANSI B 1.20.1

Available Options - on request only:

· Inlet with union type braze or butt weld fitting

· Two extra test connections 1/4'' edgeways

· Inlet: female thread (GW) 1/2'' or 3/4''

· Outlet GA1 with installed locking sleeve for easy positioning of safety valves

· Combination of different outlet threads GA1 - GA2

· Safety lock (Part No. 55394.0043.0765)

Certificates chevron-down
Canadian Registration Number (CRN) chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
More Information
Type (Series) 06512
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling
SKU CR_06512
Materials

Materials

DIN EN

ASTM

1

Body I

CC491K

B 62 UNS C83600

2

Body II

CC491K

B 62 UNS C83600

3

Ball

1.4571

A 276 Grade 316Ti

4

Seat rings

PCTFE

5

Bush

CW614N

B 283 UNS C38500

6

Spring plates

1.4571

A 313 Grade 316Ti

7

Spring clamp

CW614N

B 283 UNS C38500

8

Thread ring

CW614N

B 283 UNS C38500

9

Plug

CW614N

B 283 UNS C38500

10

Stem

1.4301

A 276 Grade 304

11

Gland packing

Graphit / PTFE

12

Lever

1.4404

A479 Grade 316L

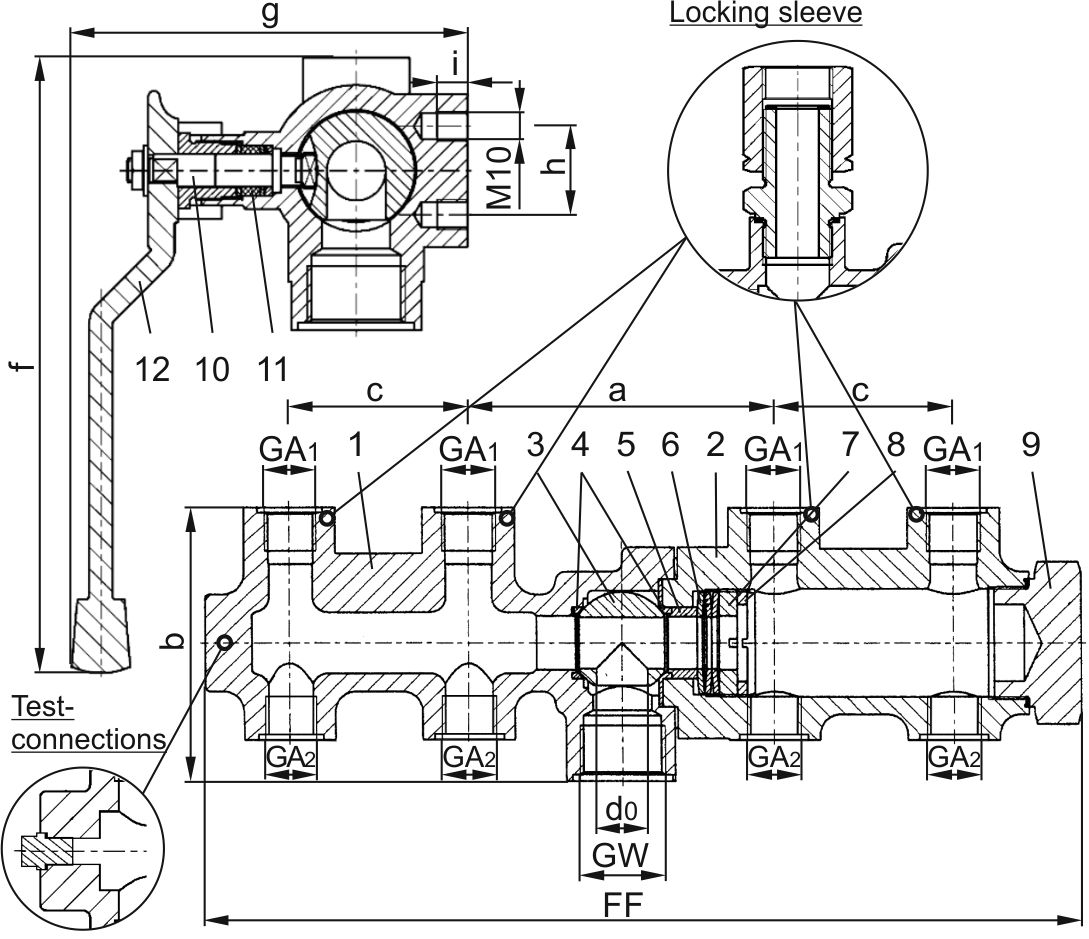

Versions

Type 06512 - Standard design

Technical data

Nominal size

DN

20

20

Dimension code

.X.

2004

2006

Flow diameter

d0

20

20

Inlet

GW

1

1

Outlet

GA1

1/2

3/4

Outlet

GA2

1/2

1/2

Face-to-face dimension

FF

345

345

Length

a

120

120

Height

b

107

107

Length

c

70

70

Length

f

223

223

Length

g

134

134

Length

h

30

30

Thread depth

i

10

10

Weight

ca. kg

7.2

7.1

Kvs - Value, one side open

m³/h

7.7

7.7

Cv - Value, one side open

gal /min

9.2

9.2
