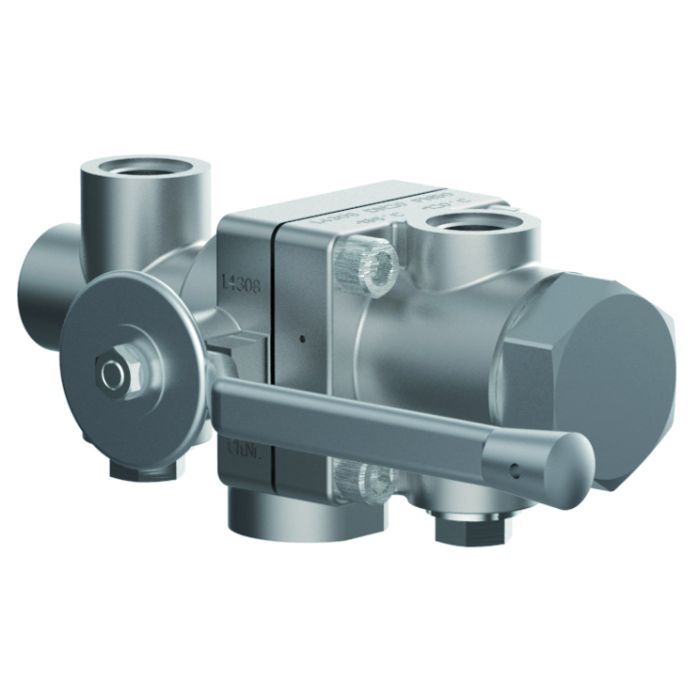

Type 06530 - Diverter Valve

Datasheet ID: CR_06530
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic Diverter Valves, stainless steel, PN50

for the installation of two safety valves,

provided for bursting disc connections,

"cleaned and degreased for oxygen service"

Part No. 06530.X.0000

Female thread connection (G) acc. to ISO 228/1

Part No. 06530.X.6***

Female thread connection NPT acc. to ANSI B 1.20.1

Available Options - on request only:

· Two extra test connections 1/4'' edgeways

· Inlet: female thread (GW) 3/4''

· Outlet GA1 with installed locking sleeve for easy positioning of safety valves

· Combination of different outlet threads GA1 - GA2

· Safety lock (Part No. 55394.0043.0765)

Certificates chevron-down
Canadian Registration Number (CRN) chevron-down
ABS (Class Rules) chevron-down
25-0381115-PDA
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
More Information
Type (Series) 06530
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling
SKU CR_06530
Materials

Materials

DIN EN

ASTM

1

Body I

1.4308

A 351 CF8

2

Body II

1.4308

A 351 CF8

3

Ball

1.4571

A 276 Grade 316Ti

4

Seat rings

PCTFE

5

Bush

1.4301

A 276 Grade 304

6

Spring plates

1.4571

A 313 Grade 316Ti

7

Spring clamp

1.4571

A 276 Grade 316Ti

8

Thread ring

1.4571

A 276 Grade 316Ti

9

Plug

1.4408

A 351 CF8M

10

Stem

1.4301

A 276 Grade 304

11

Gland packing

Graphite / PTFE

12

Lever

1.4308

A 351 CF8
Versions

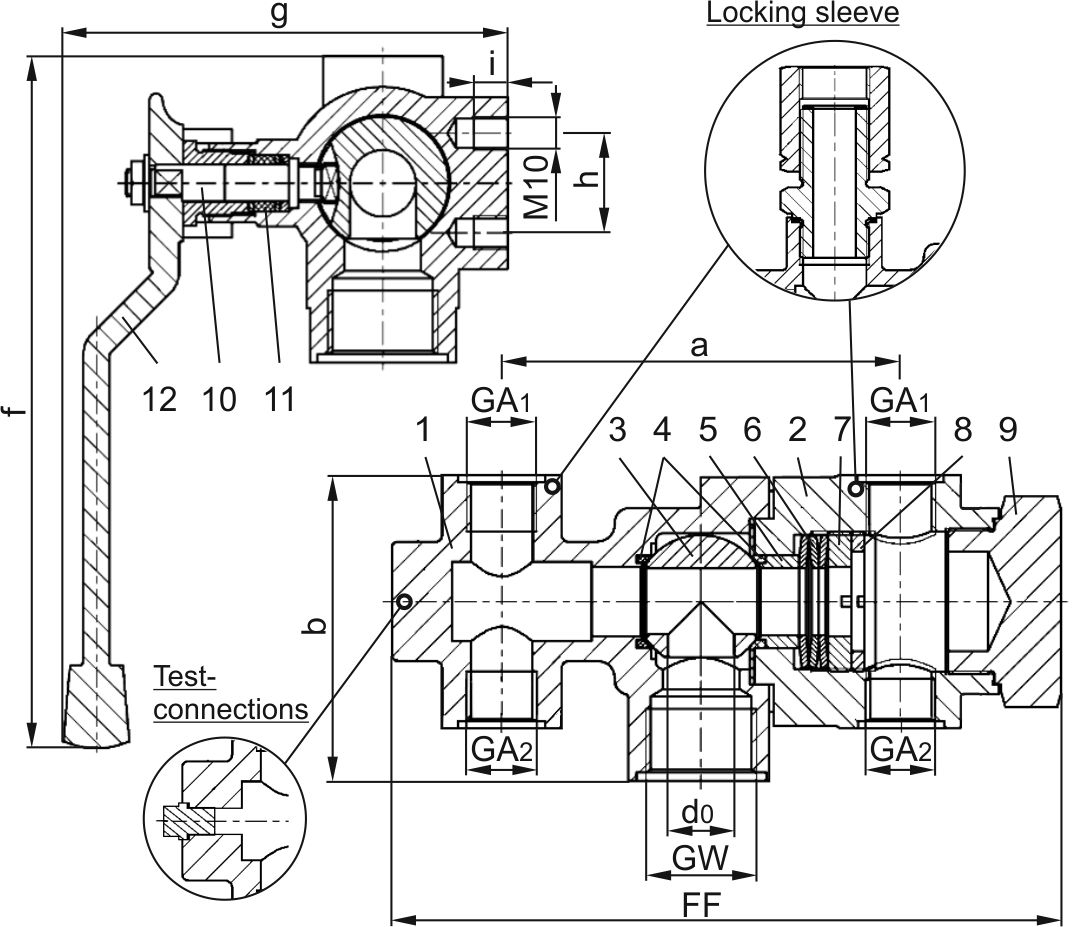

Type 06530 - Standard design

Technical Data

Nominal Size

DN

20

20

Dimension code

.X.

2004

2006

Flow diameter

d0

20

20

Inlet

GW

1

1

Outlet

GA1

1/2

3/4

Outlet

GA2

1/2

1/2

Face-to-face dimension

FF

201

201

Length

a

120

120

Height

b

92

92

Length

f

208

208

Length

g

134

134

Length

h

30

30

Thread depth

i

10

10

Weight

ca. kg

4.8

4.7

Kvs - Value, one side open

m³/h

7.7

7.7

Cv - Value, one side open

gal /min

9.2

9.2
