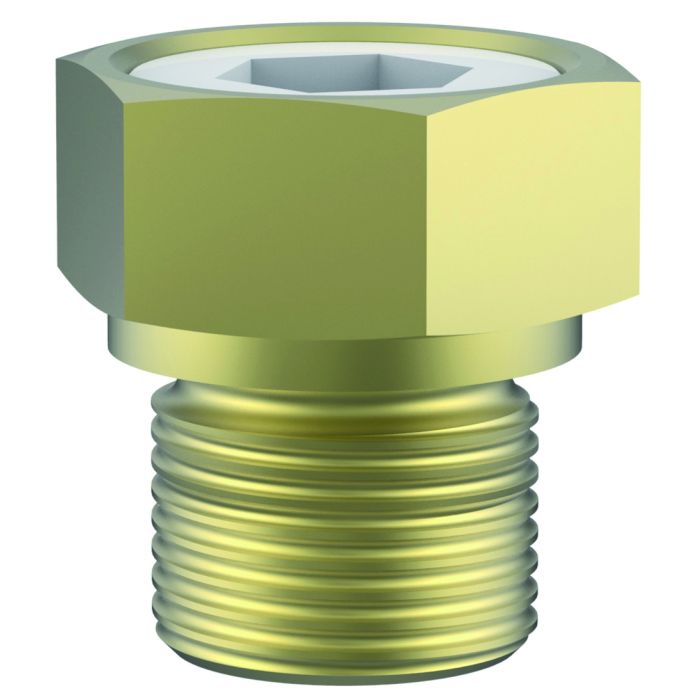

Type 06900 - Bursting disc brass

for Cryogenic Diverter Valves

burst pressure range: 4,0 bar (58.0 psi) - 52,0 bar (754.0 psi)

indicated burst pressure at burst temperature +20°C (68°F)

burst pressure tolerance: ± 5 %

"¦cleaned and degreased for oxygen service¦"

Part No. 06900.0400.00XX.XX

male thread G1/2 acc. to ISO 228/1

Part No. 06900.0400.50XX.XX

male thread 1/2'' NPT acc. to ANSI B 1.20.1

XX.XX = Code for burst pressure

Example:

burst pressure 5,20 bar - 06900.0400.0005.20

burst pressure 24,00 bar - 06900.0400.0024.00

Calculation bar in psi: 1,0 bar = 14,503 psi (7,20 bar = 104,4 psi)

Available options - on request only:

· other thread sizes

· other burst pressures

Working temperature: -196°C (77K) up to +120°C (393K)
