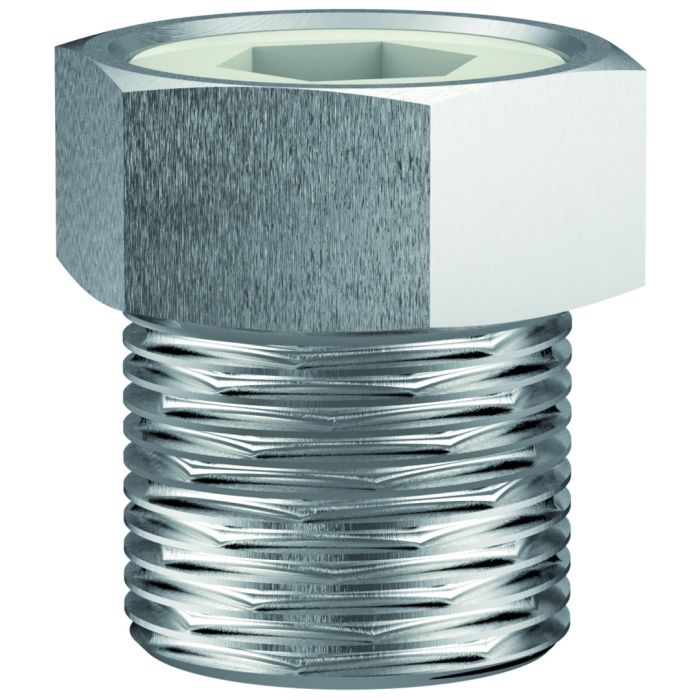

Type 06901 - Bursting disc stainless steel

for Cryogenic Diverter Valves

burst pressure range: 4,0 bar (58.0 psi) - 52,0 bar (754.0 psi)

indicated burst pressure at burst temperature +20°C (68°F)

burst pressure tolerance: ± 10 %

"¦cleaned and degreased for oxygen service¦"

Part No. 06901.0400.00XX.XX

male thread G1/2 acc. to ISO 228/1

Part No. 06901.0400.50XX.XX

male thread 1/2'' NPT acc. to ANSI B 1.20.1

XX.XX = Code for burst pressure

Example:

burst pressure 5,20 bar - 06901.0400.0005.20

burst pressure 46,00 bar - 06901.0400.0046.00

Calculation bar in psi: 1,0 bar = 14,503 psi (40,00 bar = 580,1 psi)

Available options - on request only:

· other thread sizes

· other burst pressures

Working temperature: -196°C (77K) up to +65°C (338K)
